Introduction
Cable glands are mainly used to clamp, fix, protect the cables from water and dust. They are widely applied to such fields as control boards, apparatuses, lights, mechanical equipment, train, motors, projects etc.
|

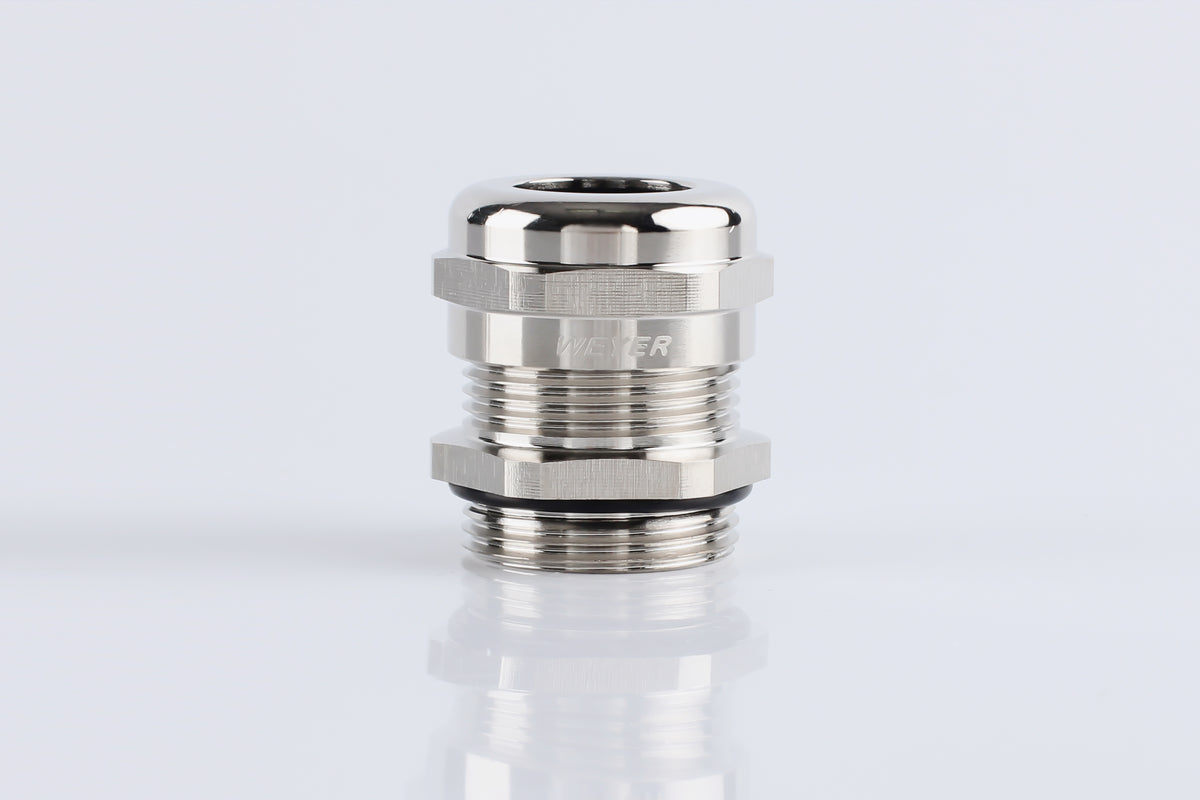

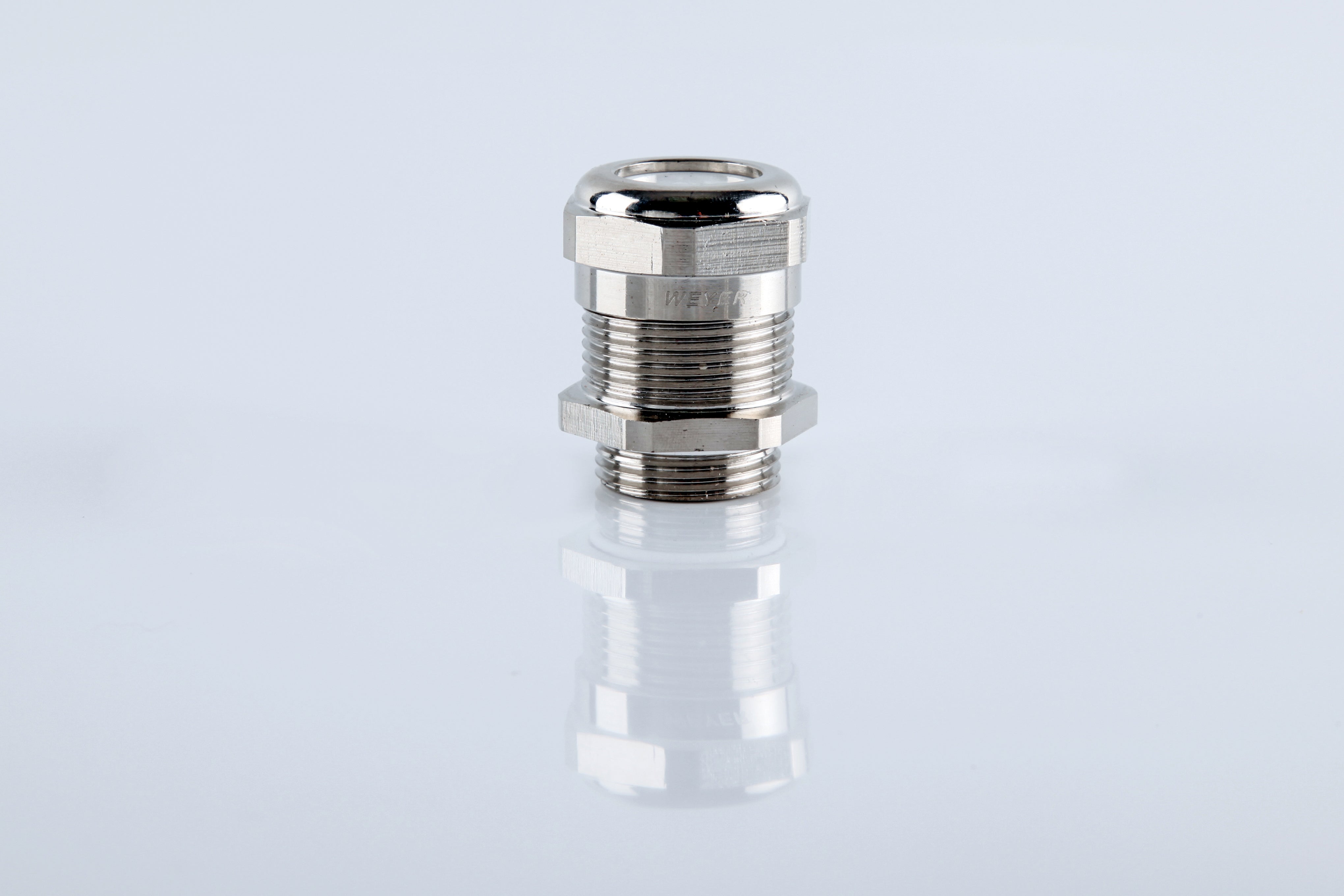

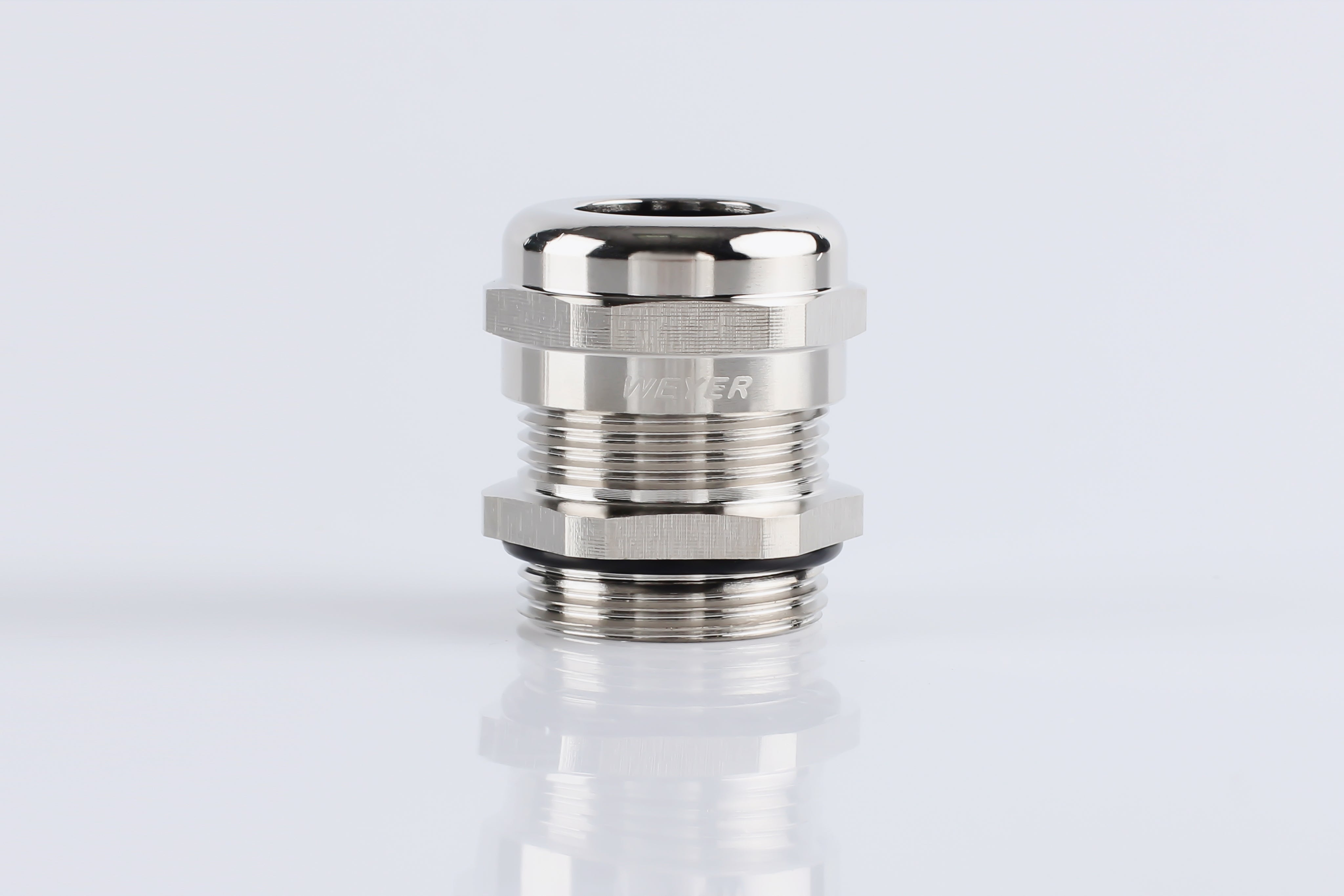

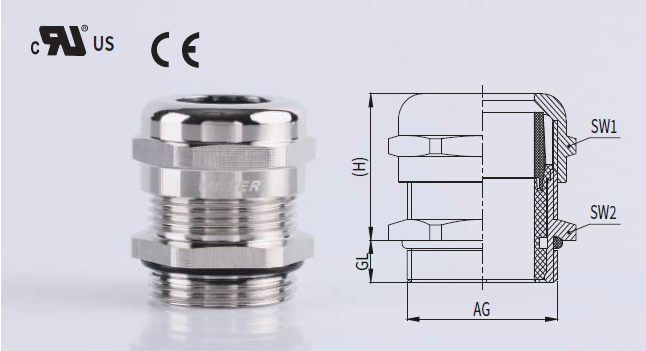

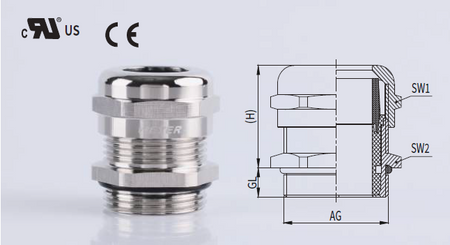

Nickel-plated brass cable gland (PG thread) |
|
|
|||||
|
Article no. |
Thread |
Clamping range |
AG |
GL |
H |
Wrench size |
Packet |
|
|
Dimension |
mm |
mm |
mm |
mm |
mm |
units |
|
HSM-P07 |
PG7 |
3~6.5 |
12.5 |
6 |
19 |
14/14 |
75 |
|
HSM-P09-H |
PG9 |
3~6.5 |
15.2 |
7 |
20 |
14/17 |
75 |
|
HSM-P09 |
PG9 |
4~8 |
15.2 |
7 |
21 |
17/17 |
75 |
|
HSM-P11 |
PG11 |
5~10 |
18.6 |
7 |
22.5 |
20/20 |
32 |
|
HSM-P13.5-H |
PG13.5 |
5~10 |
20.4 |
7 |
22.5 |
20/22 |
32 |
|
HSM-P13.5 |
PG13.5 |
6~12 |
20.4 |
7 |
23.5 |
22/22 |
32 |
|
HSM-P16-H |
PG16 |
6~12 |
22.5 |
7 |
23.5 |
22/24 |
32 |
|
HSM-P16 |
PG16 |
8~14 |
22.5 |
7 |
23 |
24/24 |
32 |
|
HSM-P21-H |
PG21 |
10~16 |
28.3 |
7 |
24.5 |
28/30 |
18 |
|
HSM-P21 |
PG21 |
13~18 |
28.3 |
7 |
26 |
30/30 |
18 |
|
HSM-P29-H |
PG29 |
15~22 |
37 |
8 |
28 |
36/40 |
8 |
|
HSM-P29 |
PG29 |
18~25 |
37 |
8 |
33 |
40/40 |
8 |
|
HSM-P36 |
PG36 |
22~32 |
47 |
9 |
38.5 |
50/50 |
4 |
|
HSM-P42 |
PG42 |
30~38 |
54 |
9 |
40 |
58/58 |
2 |
|
HSM-P48 |
PG48 |
37~44 |
59.3 |
10 |
41 |
65/65 |
2 |
