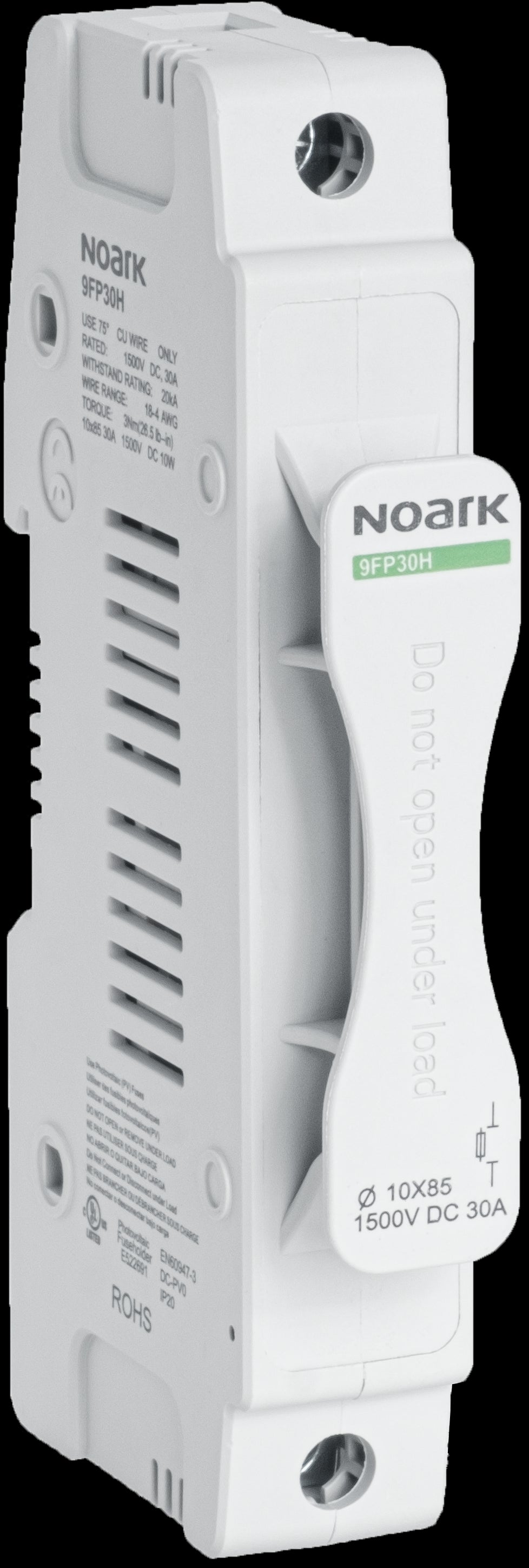

9FP30H-Fuse Holder, 30A, 1500Vdc, Type gPV Photovoltaic, 10x85mm, 1 Pole
Regular price
$16.95 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Fuse holder |
| Product series / family name | Electrical protection > Fuse protections > Fuses for photovoltaic applications |
| Sub-range name | 9FP series |
| Functions | Photovoltaic fuse holder |
| Design | UL4248-19 |
| Cross-section | 1mm2...25mm2 wiring range |
| Dimensions | H128mm x W65mm x D21.5mm H5.03" x W2.55" x D0.84" |
| Ambient air temperature for operation | -22°F...+167°F / -30°C...+75 |
| Order code / Manufacturer SKU | 9FP30H 1002548 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1002548 |
| Compliant with standard(s) | UL4248-19 EN 60947-2 |
| Short Description | Photovoltaic fuse holder - 1002548 - 1500Vdc - UL4248-19 |
| Type | Option = Standard (No options) |
| Rated current | 30A max. |
| Rated Voltage (DC) | 1500Vdc |
| Tightening torque | 2Nm - 3.5 |
| Degree of protection | IP20 |
| Degree of pollution | III |
| Net weight | 120 |
| Category code | Global_Cat_001001008 Electrical components Electrical circuits protection Fuse protections |
| Product title | Photovoltaic fuse holder - NOARK 9FP series |
| Description generating formula | A |
| Description | Photovoltaic fuse holder - UL4248-19 - NOARK (9FP series) - 30A max. rated current - 1500Vdc rated voltage - DIN rail mounting (35mm width) - equivalent to 1002548 |
| Catalogue connector | NOARK - Fuse-holders and fuses - 9FP series 9FP30H |
| Mounting mode | DIN rail DIN rail |
| Net Width (mm) | 35 |
| Climatic resistance | Altitude does not exceed 6561ft (2000m) |
