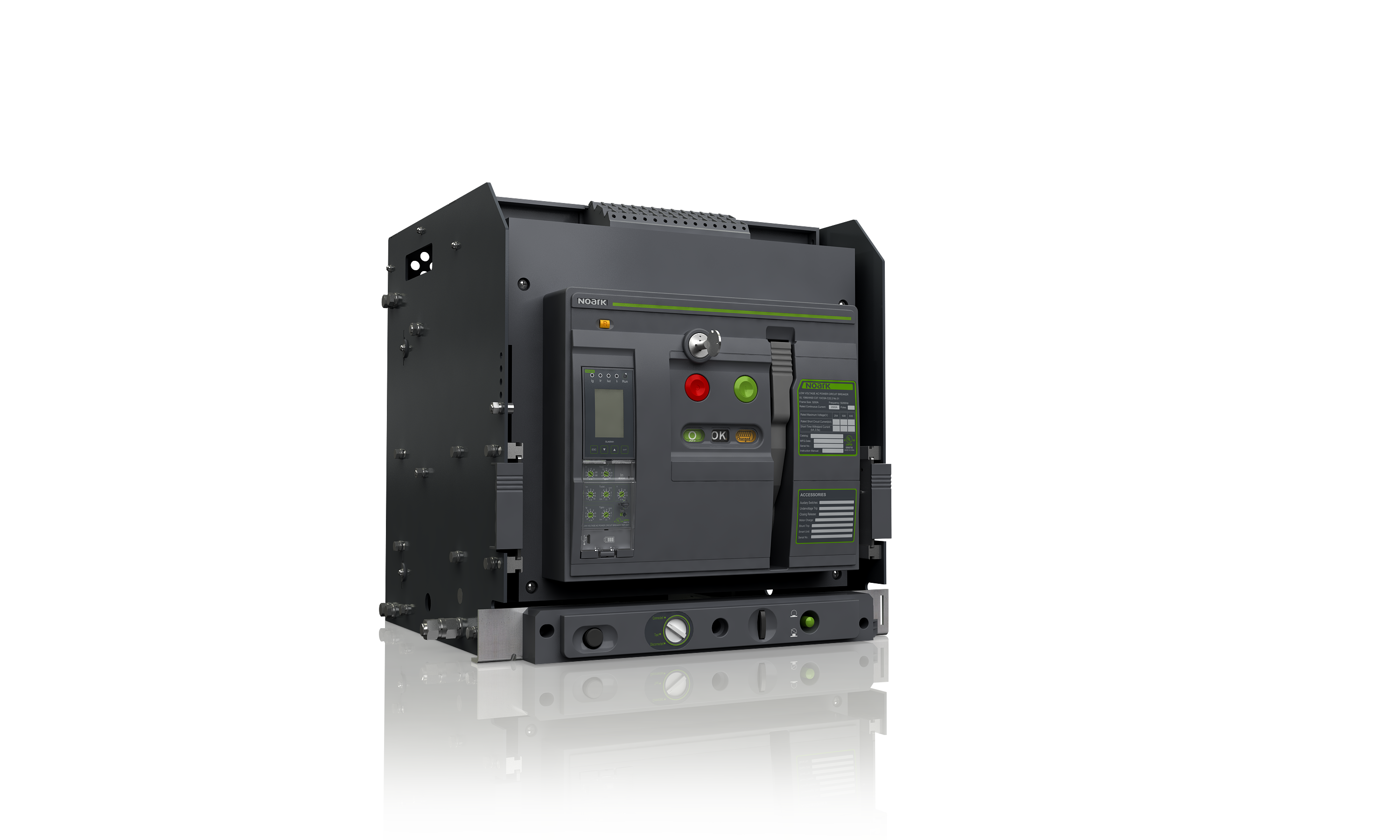

A25Q3DV600-UL 1066 ACB, 2500A Frame, A25Q, 65kA@480VAC, 3P, Drawout type,Vertical connection, 600A
Regular price
$13,747.30 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Air Circuit Breaker (ACB) |
| Product series / family name | Electrical protection > Circuit breakers > Air Circuit Breakers (ACBs) > Draw-out/withdrawable |
| Sub-range name | A25 series |
| Functions | Withdrawable / drawout Air Circuit Breaker (ACB) |
| Poles | 3-poles (3P3d) |
| Rated voltage (AC) | 800Vac (50/60Hz) |
| Connection type | Withdrawable / drawout chassis with rear vertical connection pads (more advanced electrical circuits mechanical design; lower breaker derating) |
| Short circuit breaking rating | 65kA (254-847Vac) |
| Dimensions | H460mm x W357mm x D430mm H18.11" x W14.06" x D16.93" H530mm x W450mm x D465mm (H20.87" x W17.72" x D18.31") enclosure dimensions |
| Order code / Manufacturer SKU | A25Q3DV600 1800604 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800604 |
| Compliant with standard(s) | UL1066 UL1066 (low-voltage AC and DC power circuit breakers) CSA C22.2 No.31 ANSI C37.13 (low-voltage power circuit breakers) ANSI C37.16 (low-voltage power circuit breakers ratings; related requirements and applications) ANSI C37.17 (IEEE standard for trip systems) ANSI C37.50 (low-voltage AC power circuit breakers; test procedure) |
| Electrical durability | (635Vac) 600 (847Vac) 300 hours |
| Mechanical durability | 10000 hours |
| Short Description | Withdrawable / drawout ACB - 1800604 - UL1066 - 2500A frame - 3P3d - 600A rated - vertical connection - 800Vac |
| Type | Option = special connection pads (vertical) |
| Rated current | 600A |
| Short circuit withstand current(Icw) | 65kA (480Vac) 65kA (480Vac) 65kA (600Vac) 65kA (800Vac) |
| Connection type(electrical) | Withdrawable / Drawout |
| Category code | Global_Cat_001001001005 Electrical components Electrical circuits protection Circuit Breakers (CB) Air Circuit Breakers |
| Product title | Withdrawable / drawout Air Circuit Breaker (ACB) - NOARK A25 series |
| Description generating formula | A |
| Description | Withdrawable / drawout Air Circuit Breaker (ACB) - UL1066 - NOARK (A25 series) - 3-poles (3P3d) - Rated current 600A - Interrupting capacity 65kA (254-847Vac) - Withdrawable / drawout chassis with rear vertical connection pads - equivalent to 1800604 |
| Catalogue connector | NOARK - A25 series A25Q3DV600 |
