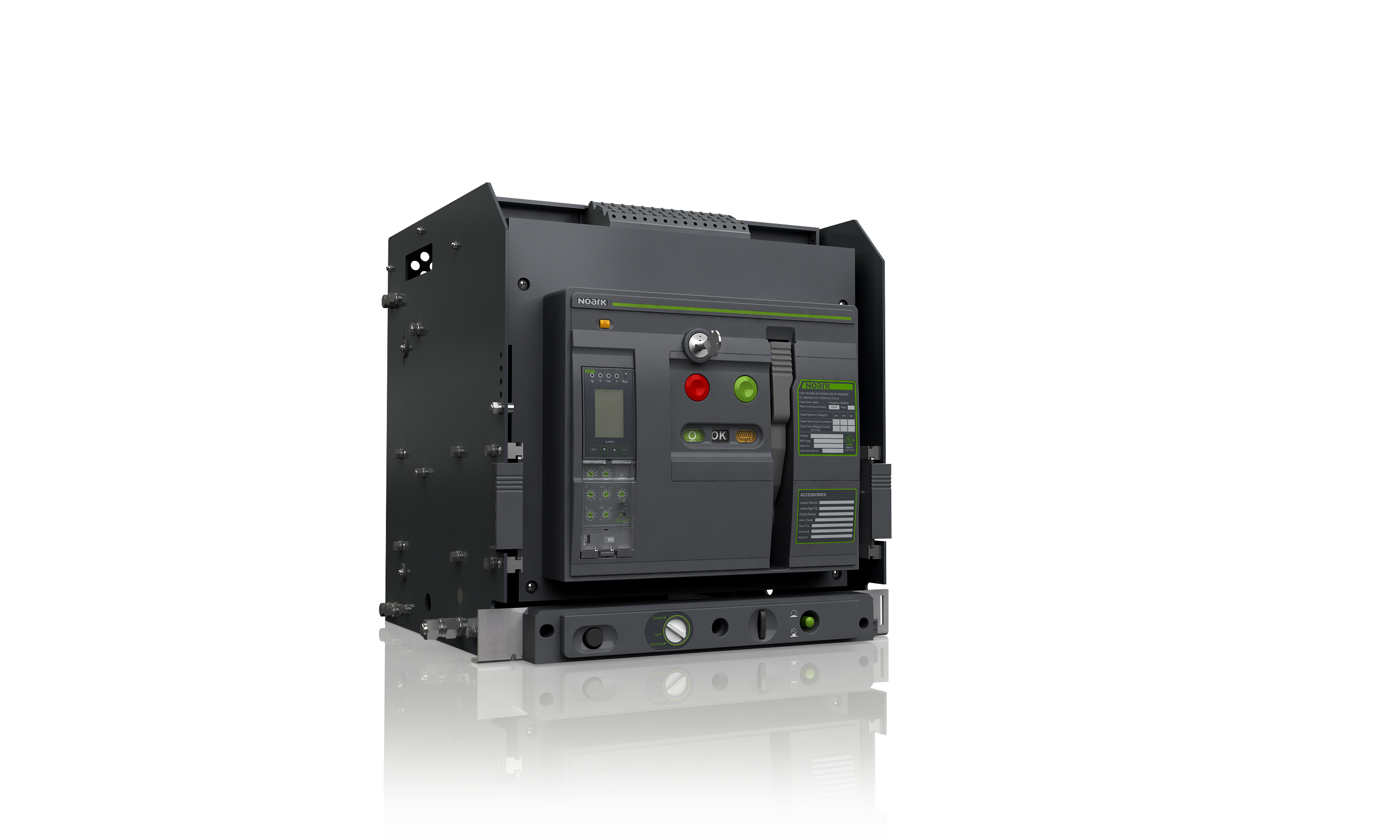

A25R3FH1200-UL 1066 ACB, 2500A Frame, A25R, 85kA@480VAC, 3P, Fixed type, Horizontal connection, 1200A
Regular price
$15,741.95 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Air Circuit Breaker (ACB) |
| Product series / family name | Electrical protection > Circuit breakers > Air Circuit Breakers (ACBs) > Fixed |
| Sub-range name | A25 series |
| Functions | Fixed-type Air Circuit Breaker (ACB) |
| Poles | 3-poles (3P3d) |
| Rated voltage (AC) | 800Vac (50/60Hz) |
| Connection type | Rear fixed-type horizontal connection pads (simpler electrical circuits mechanical design; higher breaker derating) |
| Short circuit breaking rating | 85kA (254-508Vac) 75kA (635-847Vac) |
| Dimensions | H368mm x W318mm x D306mm H14.49" x W12.52" x D12.05" |
| Order code / Manufacturer SKU | A25R3FH1200 1800621 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800621 |
| Compliant with standard(s) | UL1066 UL1066 (low-voltage AC and DC power circuit breakers) CSA C22.2 No.31 ANSI C37.13 (low-voltage power circuit breakers) ANSI C37.16 (low-voltage power circuit breakers ratings; related requirements and applications) ANSI C37.17 (IEEE standard for trip systems) ANSI C37.50 (low-voltage AC power circuit breakers; test procedure) |
| Electrical durability | (635Vac) 600 (847Vac) 300 hours |
| Mechanical durability | 10000 hours |
| Short Description | Fixed-type ACB - 1800621 - UL1066 - 2500A frame - 3P3d - 1200A rated - rear fixed horizontal connection - 800Vac |
| Type | Option = special connection pads (horizontal) |
| Rated current | 1200A |
| Short circuit withstand current(Icw) | 75kA (480Vac) 75kA (480Vac) 75kA (600Vac) 75kA (800Vac) |
| Connection type(electrical) | Fixed |
| Category code | Global_Cat_001001001005 Electrical components Electrical circuits protection Circuit Breakers (CB) Air Circuit Breakers |
| Product title | Fixed-type Air Circuit Breaker (ACB) - NOARK A25 series |
| Description generating formula | A |
| Description | Fixed-type Air Circuit Breaker (ACB) - UL1066 - NOARK (A25 series) - 3-poles (3P3d) - Rated current 1200A - Interrupting capacity 85kA (254-508Vac) - Rear fixed-type horizontal connection pads - equivalent to 1800621 |
| Catalogue connector | NOARK - A25 series A25R3FH1200 |
600-1200A_3P_draw out_horizontal installation.dwg
600-1200A_3P_fixed type_horizontal installation.dwg
600-1200A_3P_fixed type_vertical installation.dwg
1600-2000A_3P-draw out _horizontal installation.dwg
1600-2000A_3P-draw out_vertical installation.dwg
1600-2000A_3P-fixed type _horizontal installation.dwg
1600-2000A_3P-fixed type _vertical installation.dwg
2500A_3P-fixed type _vertical installation.dwg
600-1200A_3P_fixed type_vertical installation.stp
