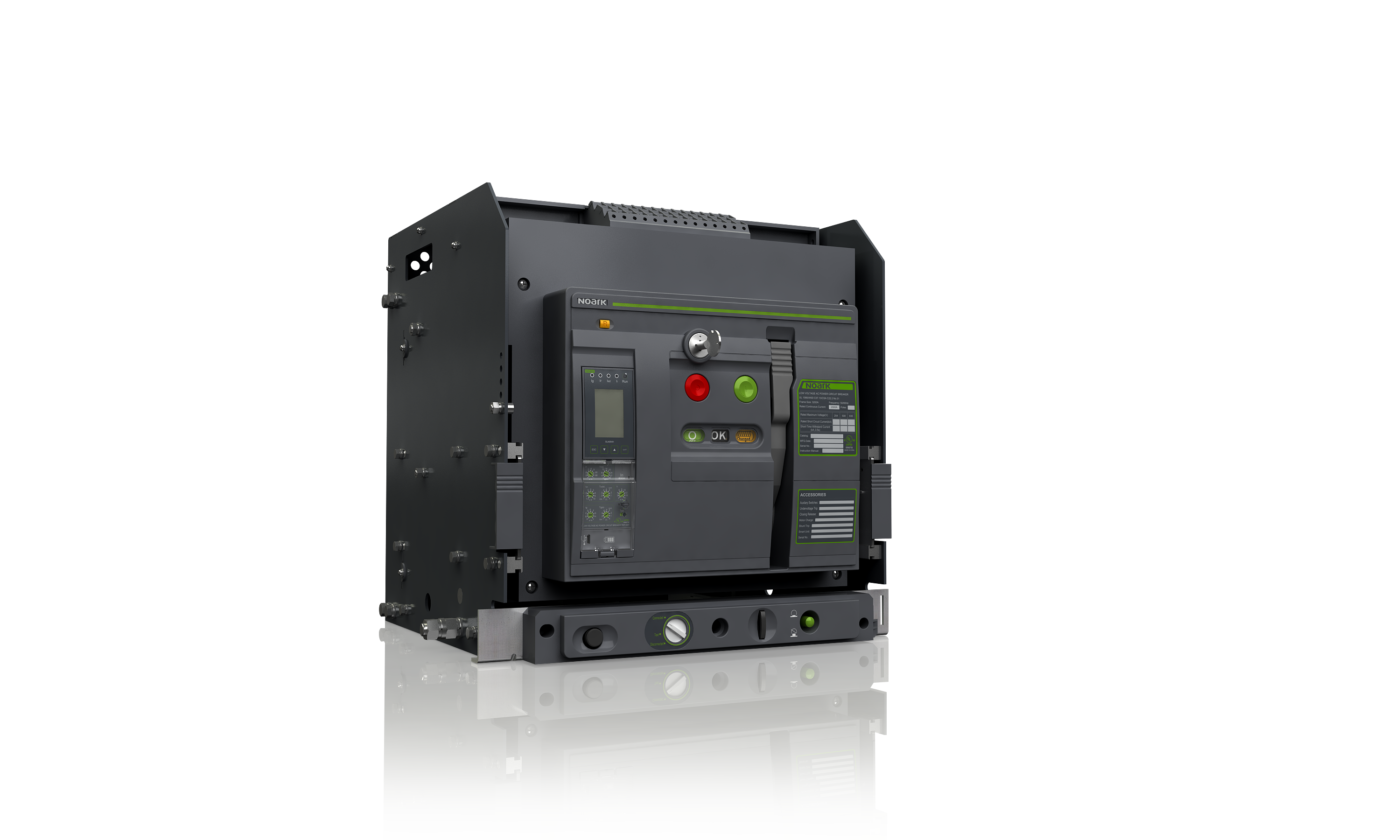

A25R4DV1600-UL 1066 ACB, 2500A Frame, A25R, 85kA@480VAC, 4P, Drawout type, Vertical connection, 1600A
Regular price
$25,570.75 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Air Circuit Breaker (ACB) |
| Product series / family name | Electrical protection > Circuit breakers > Air Circuit Breakers (ACBs) > Draw-out/withdrawable |
| Sub-range name | A25 series |
| Functions | Withdrawable / drawout Air Circuit Breaker (ACB) |
| Poles | 4-poles (4P4d) |
| Rated voltage (AC) | 800Vac (50/60Hz) |
| Connection type | Withdrawable / drawout chassis with rear vertical connection pads (more advanced electrical circuits mechanical design; lower breaker derating) |
| Short circuit breaking rating | 85kA (254-508Vac) 75kA (635-847Vac) |
| Dimensions | H460mm x W452mm x D430mm H18.113" x W17.8" x D16.93" H530mm x W545mm x D465mm (H20.87" x W21.46" x D18.31") enclosure dimensions |
| Order code / Manufacturer SKU | A25R4DV1600 1800659 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800659 |
| Compliant with standard(s) | UL1066 UL1066 (low-voltage AC and DC power circuit breakers) CSA C22.2 No.31 ANSI C37.13 (low-voltage power circuit breakers) ANSI C37.16 (low-voltage power circuit breakers ratings; related requirements and applications) ANSI C37.17 (IEEE standard for trip systems) ANSI C37.50 (low-voltage AC power circuit breakers; test procedure) |
| Electrical durability | (635Vac) 600 (847Vac) 300 hours |
| Mechanical durability | 10000 hours |
| Short Description | Withdrawable / drawout ACB - 1800659 - UL1066 - 2500A frame - 4P4d - 1600A rated - vertical connection - 800Vac |
| Type | Option = special connection pads (vertical) |
| Rated current | 1600A |
| Short circuit withstand current(Icw) | 75kA (480Vac) 75kA (480Vac) 75kA (600Vac) 75kA (800Vac) |
| Connection type(electrical) | Withdrawable / Drawout |
| Category code | Global_Cat_001001001005 Electrical components Electrical circuits protection Circuit Breakers (CB) Air Circuit Breakers |
| Product title | Withdrawable / drawout Air Circuit Breaker (ACB) - NOARK A25 series |
| Description generating formula | A |
| Description | Withdrawable / drawout Air Circuit Breaker (ACB) - UL1066 - NOARK (A25 series) - 4-poles (4P4d) - Rated current 1600A - Interrupting capacity 85kA (254-508Vac) - Withdrawable / drawout chassis with rear vertical connection pads - equivalent to 1800659 |
| Catalogue connector | NOARK - A25 series A25R4DV1600 |
