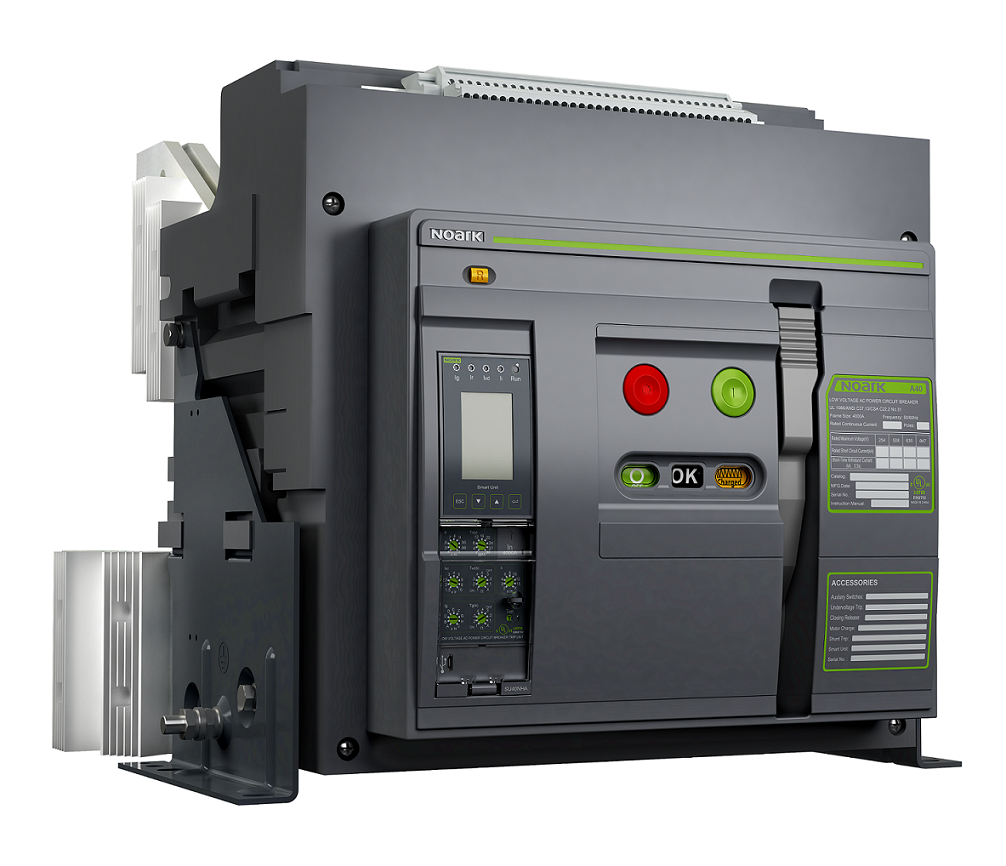

A40H3FV4000-UL 1066 ACB, 4000A Frame (A40) ACBA Frame, 100kA@480VAC, 3P, 4000A Frame (A40) ACBA, Fixed type, Vertical connection
Regular price
$30,732.47 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Air Circuit Breaker (ACB) |
| Product series / family name | Electrical protection > Circuit breakers > Air Circuit Breakers (ACBs) > Fixed |
| Sub-range name | A40 series |
| Functions | Fixed-type Air Circuit Breaker (ACB) |
| Poles | 3-poles (3P3d) |
| Rated voltage (AC) | 800Vac (50/60Hz) |
| Connection type | Rear fixed-type vertical connection pads (more advanced electrical circuits mechanical design; lower breaker derating) |
| Short circuit breaking rating | 100kA (254-635Vac) 85kA (847Vac) |
| Dimensions | H391.9mm x W451.1mm x D310.4mm H15.43" x W17.76" x D12.22" |
| Order code / Manufacturer SKU | A40H3FV4000 1800466 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800466 |
| Compliant with standard(s) | UL1066 UL1066 (low-voltage AC and DC power circuit breakers) ANSI C37.13 (low-voltage power circuit breakers) ANSI C37.16 (low-voltage power circuit breakers ratings; related requirements and applications) ANSI C37.17 (IEEE standard for trip systems) ANSI C37.50 (low-voltage AC power circuit breakers; test procedure) |
| Electrical durability | (635Vac) 4000 (847Vac) 3000 hours |
| Mechanical durability | 10000 hours |
| Short Description | Fixed-type ACB - 1800466 - UL1066 - 4000A frame - 3P3d - 4000A rated - 800Vac |
| Type | Option = special connection pads (vertical) |
| Rated current | 4000A |
| Short circuit withstand current(Icw) | 100kA (480Vac) 100kA (480Vac) 100kA (600Vac) 100kA (800Vac) |
| Connection type(electrical) | Fixed |
| Net weight | 83000 |
| Cross - sells with | AX12NF44 AX12NF44C AX12NF66 AX12NF66C RCP13N3F4000 CDP12N PHS12N2 PHS12N3 SU40NMD SU40NMC SU40NMA SU40NHD SU40NHC SU40NHA SU40NAD SU40NAC SU40NAA SU30NMD SU30NMC SU30NMA SU30NHD SU30NHC SU30NHA SU30NAD SU30NAC SU30NAA SU20NMD SU20NMC SU20NMA SU20NHD SU20NHC SU20NHA SU20NAD SU20NAC SU20NAA SHT12NA SHT12NB SHT12NC SHT12ND SHT12NE XF12NA XF12NB XF12NC XF12ND XF12NE UVT12NA UVT12NB UVT12NC UVT12ND UVT12NE MD12NA MD12NB MD12NC MD12ND PF12N KLK12N1 KLK12N2 KLK12N3 ELM10 VBP12N IPA12N NCT12N VCM10 |
| Category code | Global_Cat_001001001005 Electrical components Electrical circuits protection Circuit Breakers (CB) Air Circuit Breakers |
| Product title | Fixed-type Air Circuit Breaker (ACB) - NOARK A40 series |
| Description generating formula | A |
| Description | Fixed-type Air Circuit Breaker (ACB) - UL1066 - NOARK (A40 series) - 3-poles (3P3d) - Rated current 4000A - Interrupting capacity 100kA (254-635Vac) - Rear fixed-type vertical connection pads - equivalent to 1800466 |
| Catalogue connector | NOARK - A40 series A40H3FV4000 |
| Benefits | A40 Power Circuit Breakers conform with ANSI C37.13, C37.16, C37.17 and C37.50 standards and are UL 1066 certified. A40 Power Circuit Breakers are available up to 4000A A40 Power Circuit Breakers are capable of interrupting ratings up to 100kA at 635 Volts, the maximum voltage can be up to 847Vac. UL Listed and CSA Certified, the A40 family of products provide design standardization for OEM's no matter where they do business. A40 breakers offer a broad range of available trip units, accessories, and communications options. They are the ideal OEM solution for low voltage switchgear and customized power distribution assemblies. They can be used in Data Centers, Standby Power, Industrial, Healthcare and Commercial applications. Ratings - 254Vac to 847Vac - 4000A - Interrupting Capacity ratings up to 100kA at 635Vac and 85kA at 847Vac - Short-Time Withstand, 100kA at 635Vac and 85kA at 847Vac - 50 or 60Hz operation - 3 Pole and 4 Pole designs - 10000 Operations, before maintenance (Mechanical) - 4000 cycles at 635Vac, 3000 cycles at 847Vac before maintenance (Electrical) - Meets ANSI C37.13, C37.16, C37.17 and C37.50 Approvals - UL 1066, Low-Voltage AC and DC Power Circuit Breakers - ANSI C37.13 Low Voltage Power Circuit Breakers - ANSI C37.16 Low Voltage Power Circuit Breakers Ratings, Related Requirements and Applications - ANSI C37.17 - IEEE Standard for Trip Systems - ANSI C37.50 - Low Voltage AC Power Circuit Breakers, Test Procedure Protection & Control Options - LI, LSI, or LSIG Protection - Standard LED display - Color LCD display available - Optional multi-metering trip unit with total harmonic distortion analysis and waveform capture - Stored energy operating mechanism - AC and DC rated motor operator, shunt trip and undervoltage release accessories - Arc Flash Reduction Maintenance Mode - ELM10 maintenance Switch, compatible with 'H' model trip unit only. - Voltage Conversion Module VCM10 for high voltage protections - Neutral CT NCT12N & RCT-1800 for neutral protections - Zone Selective Interlocking - RS-485 Modbus Communication available Design Features - UL field-installable accessories - Compact size with 3P breaker width 17.76 inches (451MM) only - 3 Pole and 4 Pole designs - Phase barriers (optional) - Available as Disconnect Switch (ASD40) |
A40 4000A_3P_fixed type_vertical installation.dwg
