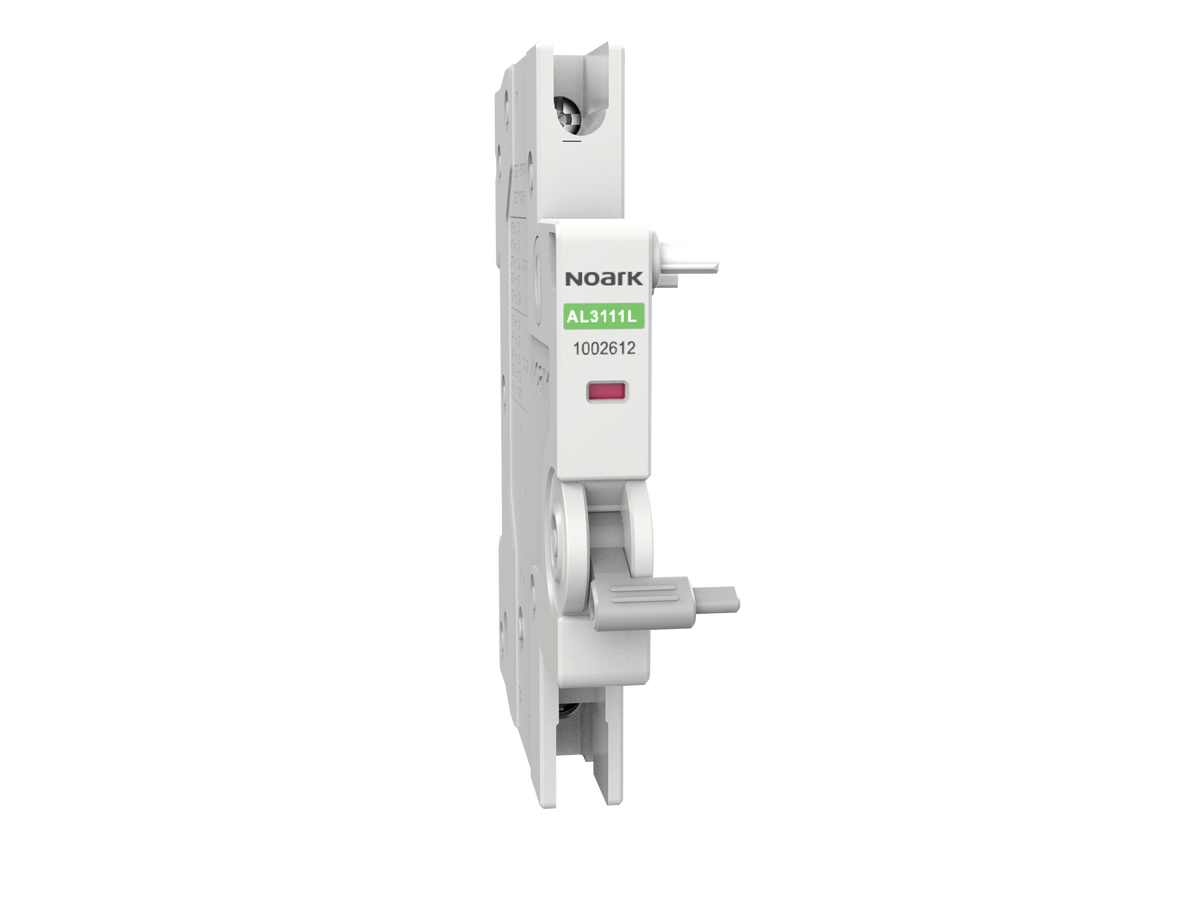

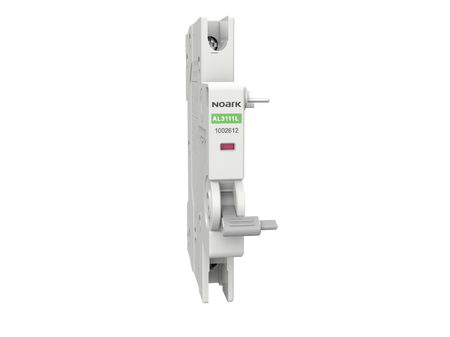

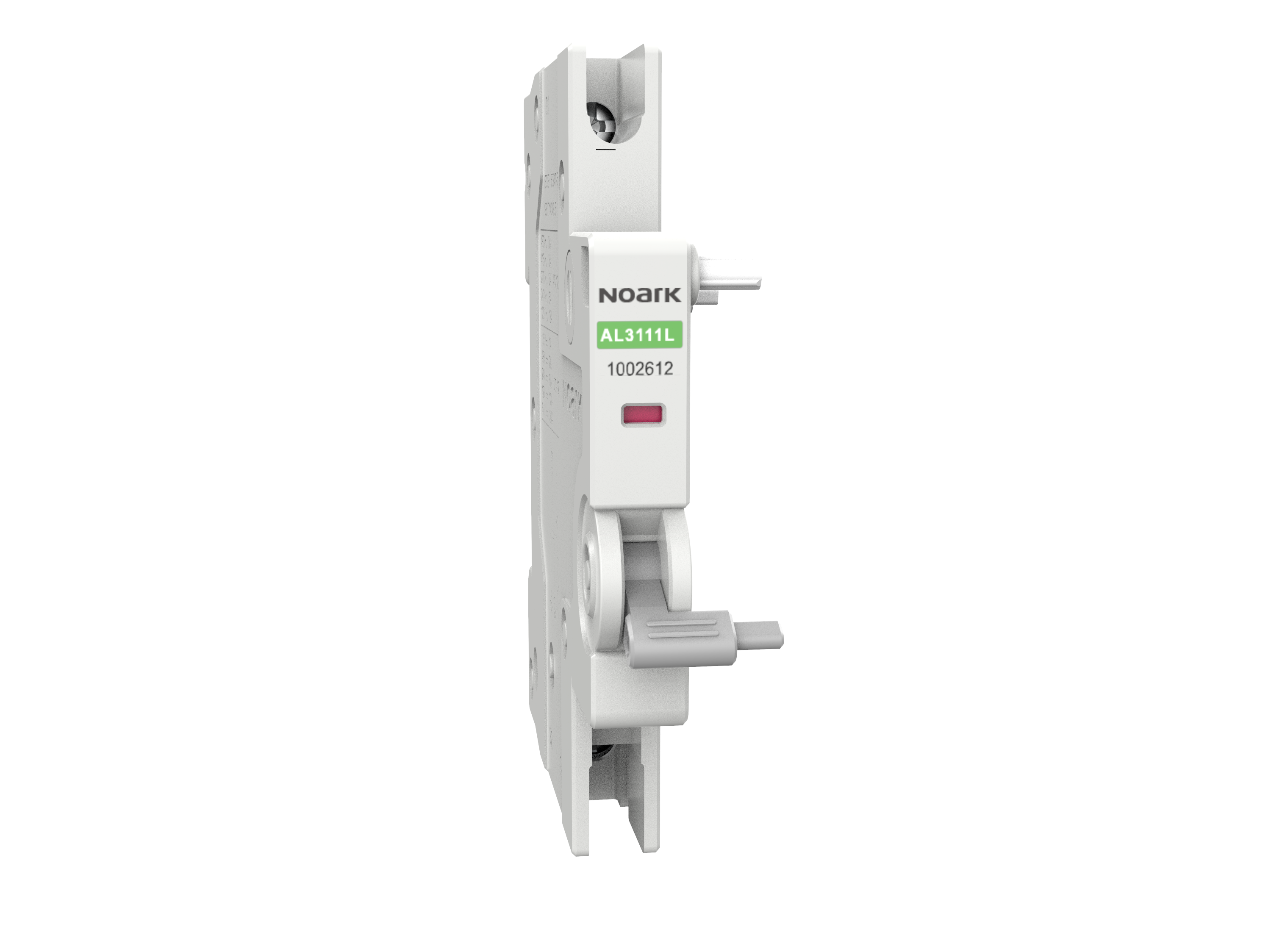

AL3111L-MCB Alarm Contact, UL1077, 1NO+1NC, AC480V/DC130V B1E80~125A
Regular price
$40.50 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Auxiliary contact |
| Product series / family name | Electrical protection > MCBs accessories > UL1077 > Aux. contacts |
| Functions | Auxiliary combined ON/OFF and TRIP signalling contact / switch block |
| Design | for 80-125A rated current UL1077 devices |
| Rated voltage (AC) | 480Vac |
| Dimensions | H88.9mm x W10.16mm x D76.2mm H3.2" x W0.4" x D3" |
| Order code / Manufacturer SKU | AL3111L 1002612 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1002612 |
| Compliant with standard(s) | UL1077 |
| Short Description | Alarm (AL) ON/OFF and TRIP signalling contact/switch UL1077 - 1002612 - 1NO+1NC - 480Vac/130Vdc |
| Type | Option = Standard (No options) |
| Rated current | 1A (130Vdc) 2A (48Vdc) 3A (227Vac / 415Vac / 480Vac) 6A (240Vac / 24Vdc) 12A (120Vac / 12Vdc) 24A (6Vdc) |
| Rated Voltage (DC) | 130Vdc |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Net weight | 41 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Auxiliary combined ON/OFF and TRIP signalling contact / switch block - NOARK |
| Description generating formula | A |
| Description | Auxiliary combined ON/OFF and TRIP signalling contact / switch block - for 80-125A rated current UL1077 devices - NOARK - 480Vac / 130Vdc rated voltage - 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts - DIN rail mounting (35mm width) - equivalent to 1002612 |
| Catalogue connector | NOARK - MCB accessories - Alarm switch - AL31-L AL3111L |
| Mounting mode | DIN rail |
| Net Width (mm) | 35 |
