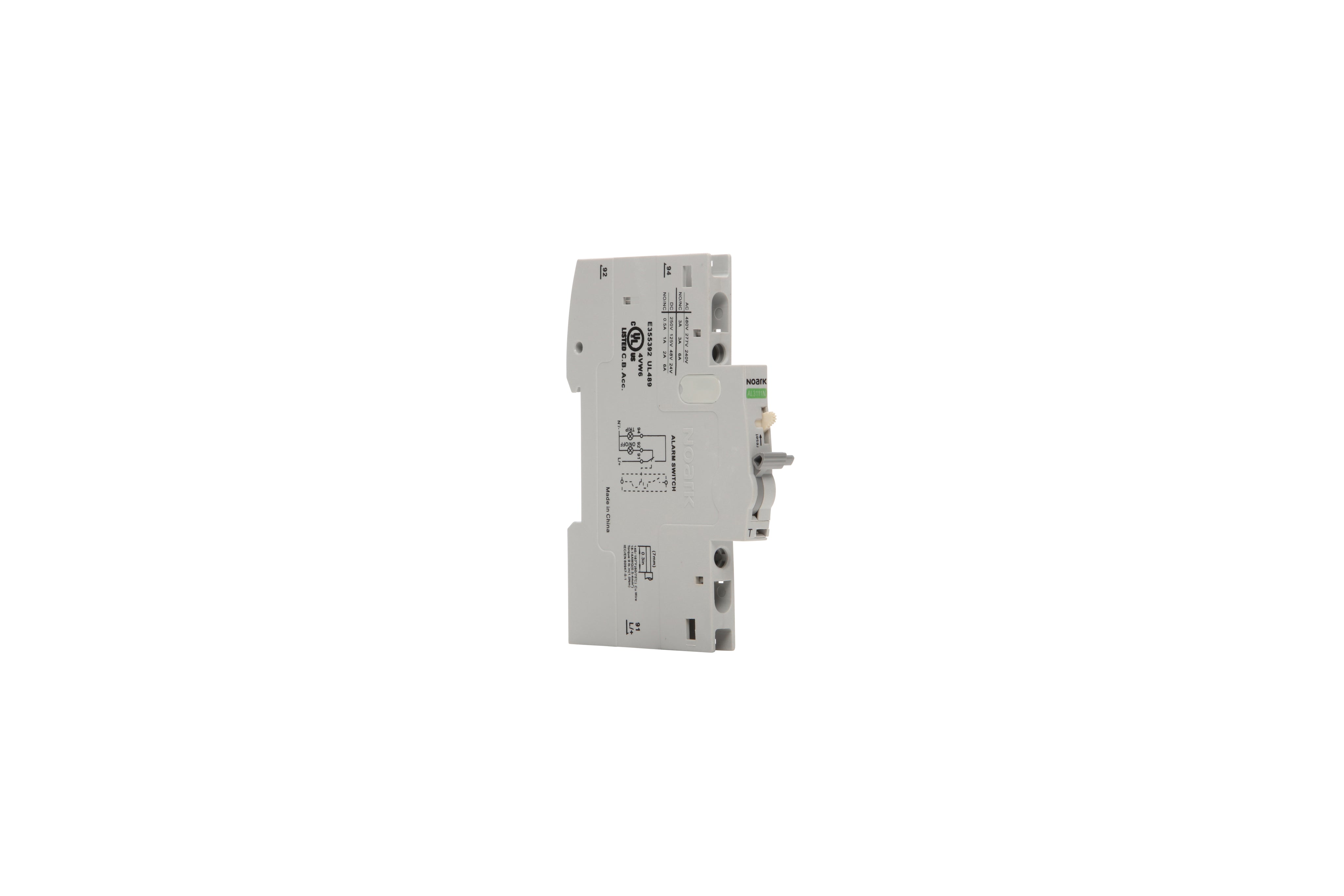

AL3111N-MCB Alarm Switch, UL 489, 1NO+1NC
Regular price
$27.95 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Auxiliary contact |
| Product series / family name | Electrical protection > MCBs accessories > UL489 > Aux. contacts |
| Functions | Auxiliary combined ON/OFF and TRIP signalling contact / switch block |
| Design | for UL489 devices |
| Cross-section | for #18AWG...#14AWG / 0.5mm2...4mm2 Cu wires at 140/167°F / 60/75°C |
| Dimensions | H103mm x W8.8mm x D75.5mm 7mm / 0.3" reference stripping length H4.06" x W0.35" x D2.97" |
| Order code / Manufacturer SKU | AL3111N 1001201 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1001201 |
| Compliant with standard(s) | UL489 (file number E355392) |
| Short Description | Alarm (AL) ON/OFF and TRIP signalling contact/switch UL489 - 1001201 - 1NO+1NC |
| Type | Option = Standard (No options) |
| Rated current | 0.5A (250Vdc) 1A (125Vdc) 2A (48Vdc) 3A (480Vac / 277Vac) 6A (240Vac / 24Vdc) |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Tightening torque | 9lb.in / 1 |
| Net weight | 42 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Auxiliary combined ON/OFF and TRIP signalling contact / switch block - NOARK |
| Description generating formula | A |
| Description | Auxiliary combined ON/OFF and TRIP signalling contact / switch block - for UL489 devices - NOARK - 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts - DIN rail mounting (35mm width) - equivalent to 1001201 |
| Catalogue connector | NOARK - MCB accessories - Alarm switch - AL31 AL3111N |
| Mounting mode | DIN rail |
| Net Width (mm) | 35 |
