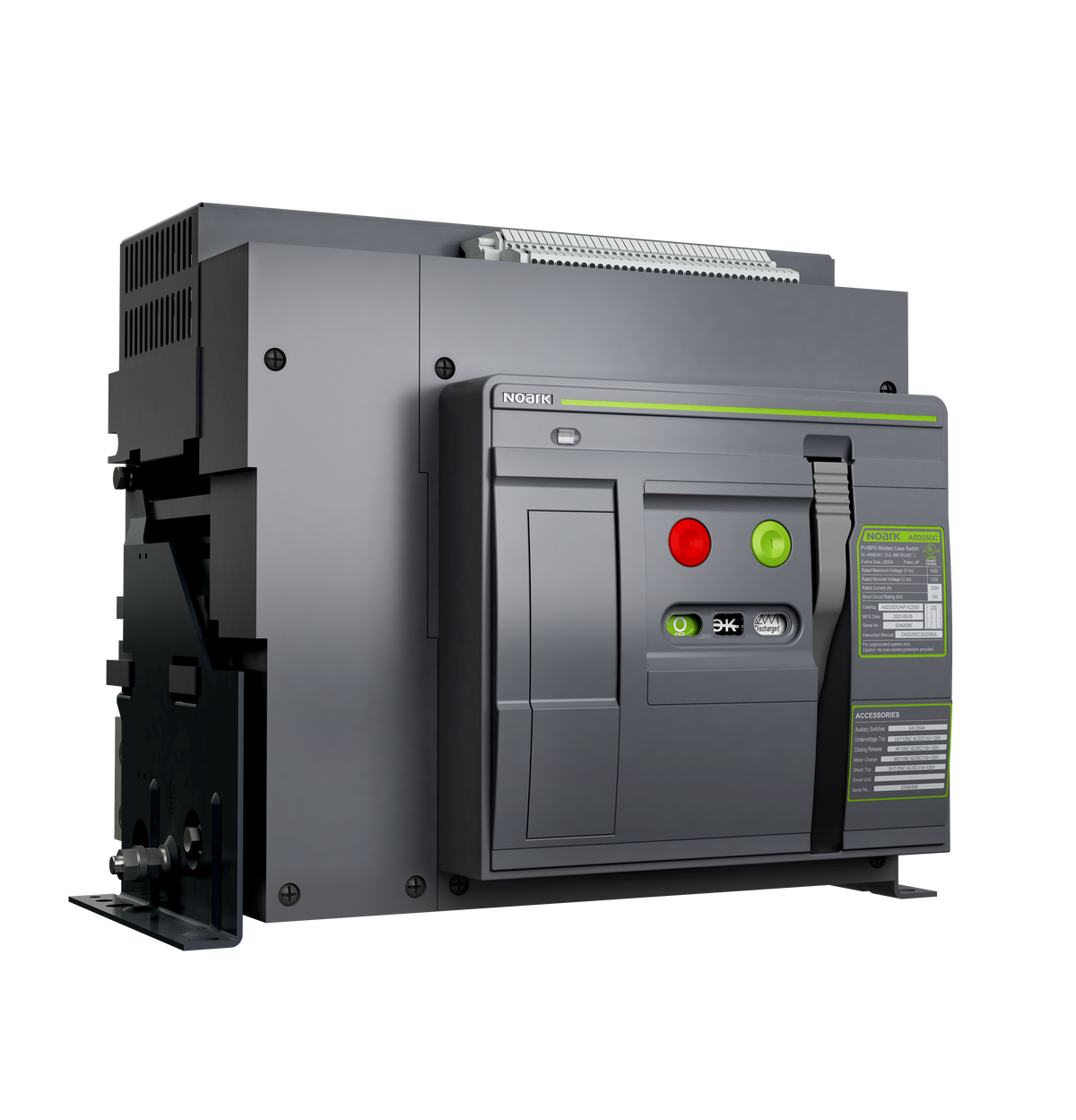

ASD25DC4FHC1250-1500V DC Disconnect Switch, UL489B, 125kA, 4P, Fixed, Horizontal, C type connection, 1250A
Regular price
$13,927.38 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Switch-disconnector |
| Product series / family name | Electrical protection > Disconnector switches > DC non-automatic power switch-disconnectors |
| Sub-range name | ASD25 series |
| Functions | Fixed-type front-operated DC moulded case switch-disconnector (MCS) |
| Design | C-type wiring 125kA interrupting/short time withstanding rating non-fusible 2500A frame |
| Poles | 4-poles (4P4d) |
| Connection type | Rear fixed-type horizontal connection pads (simpler electrical circuits mechanical design; higher breaker derating) |
| Dimensions | H391.9mm x W465.1mm x D432.1mm H15.43" x W18.31" x D17.01" |
| Ambient air temperature for operation | -40°C...+70 |
| Order code / Manufacturer SKU | ASD25DC4FHC1250 1800383 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800383 |
| Electrical durability | 12500 hours |
| Mechanical durability | 2000 hours |
| Short Description | Fixed-type DC MCS - 1800383 - C-type wiring - 2500A frame - 4P4d - 1250A rated - rear fixed horizontal connection - 1500Vdc |
| Type | Option = special connection pads (horizontal) |
| Rated current | 1250A |
| Short circuit withstand current(Icw) | 125kA (1500Vdc) |
| Rated Voltage (DC) | 1500Vdc |
| Response time | (breaking time) max. 30ms / 0.03 (closing time) max. 70ms / 0.07 |
| Connection type(electrical) | Fixed |
| Net weight | 70000 |
| Category code | Global_Cat_001001006 Electrical components Electrical circuits protection Switch-disconnectors |
| Product title | Fixed-type front-operated DC moulded case switch-disconnector (MCS) - NOARK ASD25 series |
| Description generating formula | A |
| Description | Fixed-type front-operated DC moulded case switch-disconnector (MCS) - C-type wiring - 125kA interrupting/short time withstanding rating - non-fusible - NOARK (ASD25 series) - 4-poles (4P4d) - Rated current 1250A - Rear fixed-type horizontal connection pads - 2500A frame - equivalent to 1800383 |
| Catalogue connector | NOARK - ASD25 series ASD25DC4FHC1250 |
| Benefits | NOARK Electric ASD25 DC disconnect switches are available in current ratings of 800A-2500A. They offer short-time withstand current capabilities of up to 150kA at 1500Vdc. The ASD25 DC disconnect switch features a poles-in-series design. It offers jumper connection configurations are offered for grounded and ungrounded systems. The ASD25 DC disconnect switch is backed by a 1-year limited warranty. Features - UL489B / UL489 Supplement SC Compliant. - Operating voltage up to 1500Vdc (4-poles in series) - Rated short-time withstand current up to 150kA Can be used in grounded and ungrounded systems. - Ambient temperature 40°C-70°C - Full line of internal and external accessories available. - Factory mounted connection jumpers comply with UL regulations. |
