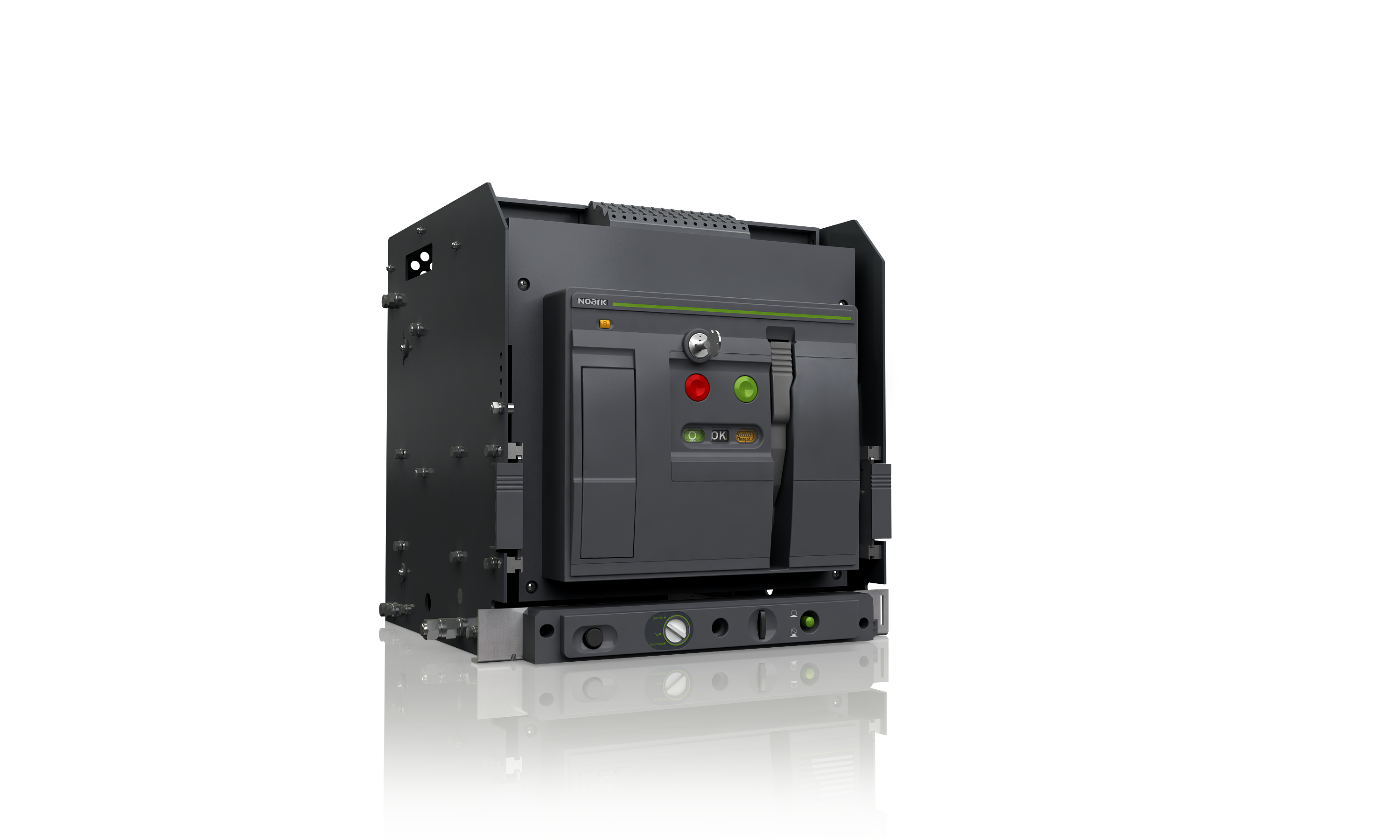

ASD32Q3FV2000-UL 1066 ACB Non-Automatic Switch, 3200A Frame, 65kA, 3P, Fixed type, Vertical connection, 2000A
Regular price
$15,232.83 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Switch-disconnector |
| Product series / family name | Electrical protection > Disconnector switches > AC non-automatic power switch-disconnectors |
| Sub-range name | ASD32 series |
| Functions | Fixed-type front-operated power switch-disconnector (MCS) |
| Design | 65kA interrupting/short time withstanding rating non-fusible 3200A frame |
| Poles | 3-poles (3P3d) |
| Rated voltage (AC) | 600Vac |
| Connection type | Rear fixed-type vertical connection pads (more advanced electrical circuits mechanical design; lower breaker derating) |
| Dimensions | H391.9mm x W430mm x D395mm H15.43" x W16.93" x D15.55" |
| Order code / Manufacturer SKU | ASD32Q3FV2000 1800108 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800108 |
| Compliant with standard(s) | UL1066 UL1066 (low-voltage AC and DC power circuit breakers) CSA C22.2 No.31 ANSI C37.13 (low-voltage power circuit breakers) ANSI C37.16 (low-voltage power circuit breakers ratings; related requirements and applications) ANSI C37.17 (IEEE standard for trip systems) ANSI C37.50 (low-voltage AC power circuit breakers; test procedure) |
| Electrical durability | 6000 hours |
| Mechanical durability | 10000 hours |
| Short Description | Power switch-disconnector MCS - 1800108 - UL1066 - 3200A frame - 3P3d - 2000A rated - 600Vac |
| Type | Option = special connection pads (vertical) |
| Rated current | 2000A |
| Short circuit withstand current(Icw) | 65kA (240Vac) 65kA (480Vac) 65kA (600Vac) |
| Connection type(electrical) | Fixed |
| Net weight | 57000 |
| Cross - sells with | CAS12N3V2500 AX12NF44 AX12NF44C AX12NF66 AX12NF66C RCP12N3F2500 CDP12N PHS12N2 IN12N20 SU40NMD SU40NMC SU40NMA SU40NHD SU40NHC SU40NHA SU40NAD SU40NAC SU40NAA SU30NMD SU30NMC SU30NMA SU30NHD SU30NHC SU30NHA SU30NAD SU30NAC SU30NAA SU20NMD SU20NMC SU20NMA SU20NHD SU20NHC SU20NHA SU20NAD SU20NAC SU20NAA SHT12NA SHT12NB SHT12NC SHT12ND SHT12NE XF12NA XF12NB XF12NC XF12ND XF12NE UVT12NA UVT12NB UVT12NC UVT12ND UVT12NE EF12N MD12NA MD12NB MD12NC MD12ND PF12N KLK12N1 KLK12N2 KLK12N3 ELM10 VBP12N IPA12N NCT12N |
| Category code | Global_Cat_001001006 Electrical components Electrical circuits protection Switch-disconnectors |
| Product title | Fixed-type front-operated power switch-disconnector (MCS) - NOARK ASD32 series |
| Description generating formula | A |
| Description | Fixed-type front-operated power switch-disconnector (MCS) - 65kA interrupting/short time withstanding rating - non-fusible - UL1066 - NOARK (ASD32 series) - 3-poles (3P3d) - Rated current 2000A - Rear fixed-type vertical connection pads - 3200A frame - equivalent to 1800108 |
| Catalogue connector | NOARK - ASD32 series ASD32Q3FV2000 |
| Benefits | NOARK Electric is proud to offer its A32 family of Power Circuit Breakers, Non-Automatic Disconnect Switches, and accessories. Our A32 products are optimized for OEMs and are manufactured under world-class quality systems in our ISO accredited factories. Like all NOARK products, these breakers are designed to deliver high quality, superior performance, and outstanding value. A32 Power Circuit Breakers are available up to 3200 amps and are capable of IC ratings up to 100kA at 635 Volts. UL Listed and CSA Certified, the A32 family of products provide design standardization for OEM's no matter where they do business. A32 breakers offer a broad range of available trip units, accessories, and communications options. They are the ideal OEM solution for low voltage switchgear and customized power distribution assemblies. They can be used in Data Centers, Standby Power, Industrial, Healthcare and Commercial applications. Ratings - 800A through 3200A - IC ratings up to 100kA at 635V - Short-Time Withstand, 100kA at 635V - 50 or 60Hz operation - 3 Pole and 4 Pole designs - 10000 Operations, before maintenance (Mechanical) - 6000 Operations, before maintenance (Electrical) - Meets ANSI C37.13, C37.16, C37.17 and C37.50 Approvals - UL 1066, Low-Voltage AC and DC Power Circuit Breakers - CSA C22.2 No. 31 - ANSI C37.13 Low Voltage Power Circuit Breakers - ANSI C37.16 Low Voltage Power Circuit Breakers Ratings, Related Requirements and Applications - ANSI C37.17 - IEEE Standard for Trip Systems - ANSI C37.50 - Low Voltage AC Power Circuit Breakers, Test Procedure Protection & Control Options - LI, LSI, or LSIG Protection - Standard LED display - Color LCD display available - Optional multi-metering trip unit with total harmonic distortion analysis and waveform capture - Stored energy operating mechanism - AC and DC rated motor operator, shunt trip and undervoltage release accessories - Arc Flash Reduction Maintenance Mode - Zone Selective Interlocking - RS-485 Modbus Communication available Design Features - UL/CSA field-installable accessories - Rear horizontal or vertical connections - Through-the-door design - 3 Pole and 4 Pole designs - OEM optimized Cassette - Phase barriers (optional) - Available as Disconnect Switch (ASD32) |
