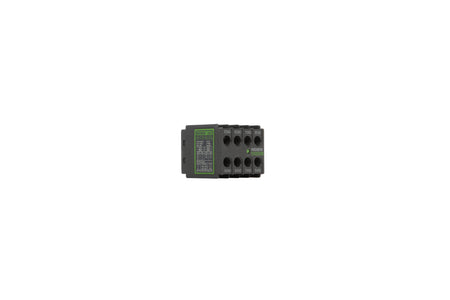

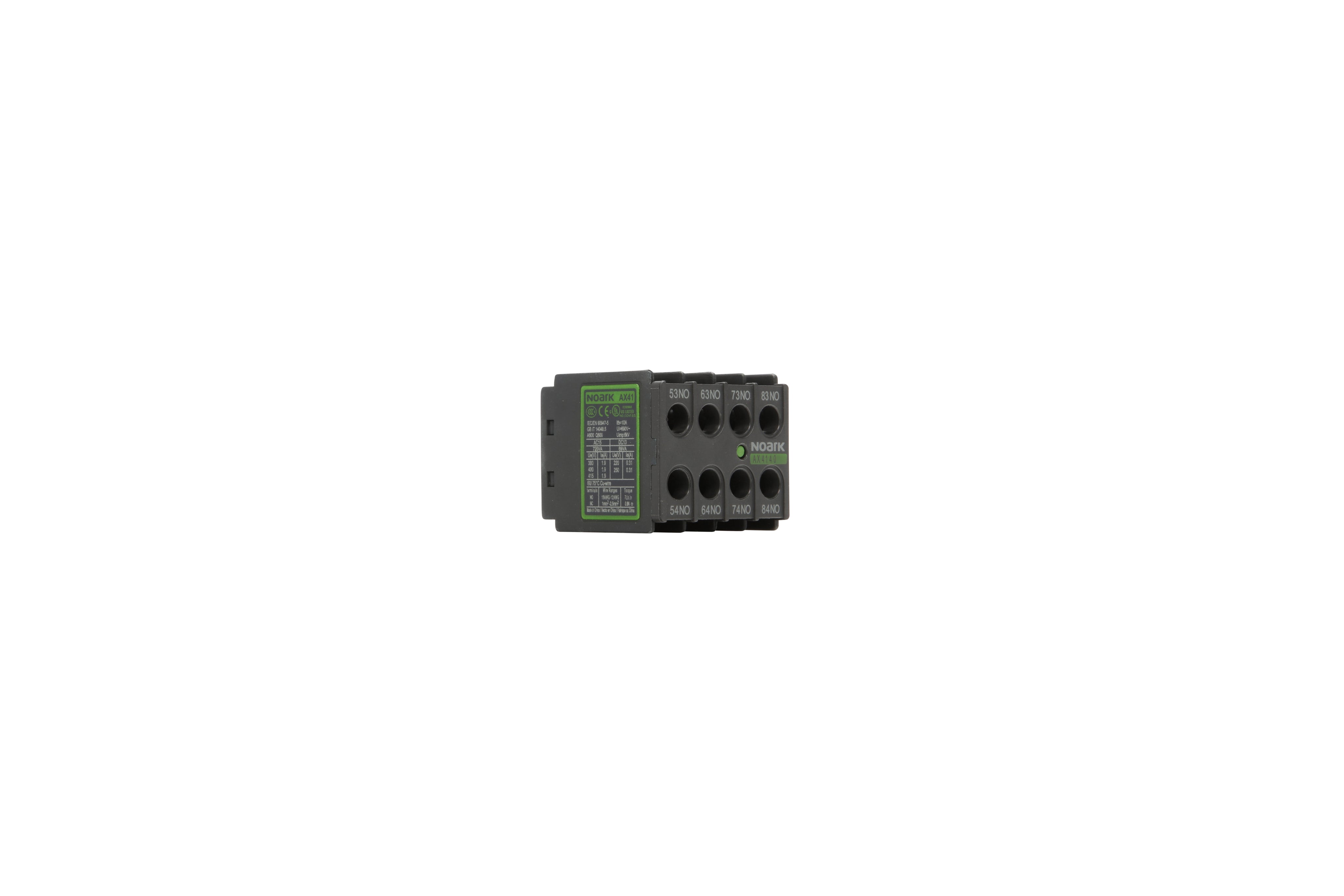

AX4140UL-Auxiliary Contact, Ex9CS/CSR, Miniature, Front Mount, 06~12A, 4NO
Regular price
$23.98 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Auxiliary contact |
| Product series / family name | Industrial controls > Contactors > ``Standard contactors > Accessories > Auxiliary contacts |
| Sub-range name | Ex9CS series |
| Functions | Miniature auxiliary contact block / switch block |
| Design | mounts on 6A-12A cont. |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | 690 |
| Cross-section | for #18AWG...#12AWG / 1mm2...4mm2 conductors |
| Dimensions | H39mm x W33mm x D37mm H1.54" x W1.3" x D1.46" |
| Order code / Manufacturer SKU | AX4140UL 1330005 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1330005 |
| Compliant with standard(s) | UL 508 (file number E353866) IEC 60947-5-1 EN 60947-5-1 CSA CCC RoHS compliant |
| Short Description | Auxiliary contact - 1330005 - Ex9CS - mounts on 6A-12A cont. - 4NO - top mounting |
| Type | Option = Standard (No options) |
| Rated current | 1.9A (380Vac/400Vac/415Vac; AC-15) 0.31A (220Vdc/250Vdc; DC-15) 10A (Ith conventional free air thermal current) |
| Rated power | 720VA (AC-15) switching 69W (DC-13) switching |
| Normally Open (NO) auxliary contacts | 4 |
| Normally Closed (NC) auxiliary contacts | 0 |
| Contacts type | 4NO (4 Normally Open) aux. contacts |
| Tightening torque | 0.8 |
| Degree of protection | IP20 |
| Net weight | 42 |
| Category code | Global_Cat_001003 Electrical components Motor control and protection |
| Product title | Miniature auxiliary contact block / switch block - NOARK Ex9CS series |
| Description generating formula | A |
| Description | Miniature auxiliary contact block / switch block - mounts on 6A-12A cont. - NOARK (Ex9CS series) - 4NO (4 Normally Open) aux. contacts - Lift term. connection - top mounting - IP20 - equivalent to 1330005 |
| Catalogue connector | NOARK - Ex9CS series AX4140UL |
| Mounting mode | top mounting |
