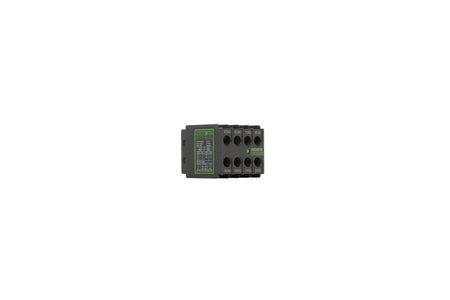

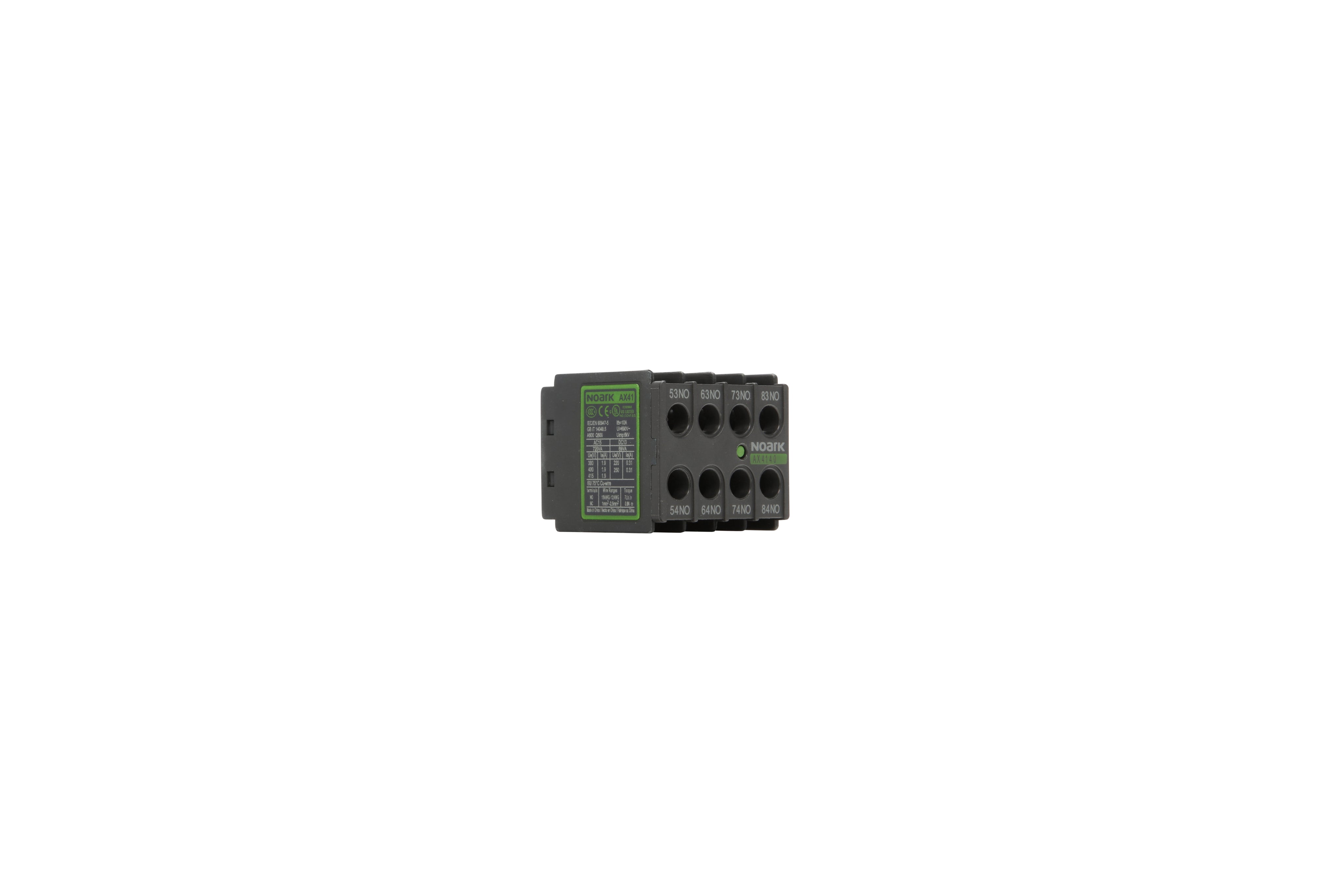

AX4202UL-Auxiliary Contact, Ex9C/CR, Standard, Front Mount, 09-500A, 2NC
Regular price
$26.42 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Auxiliary contact |
| Product series / family name | Industrial controls > Contactors > ``Standard contactors > Accessories > Auxiliary contacts |
| Sub-range name | Ex9C series |
| Functions | Auxiliary contact block / switch block |
| Design | mounts on 9A-150A cont. |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | 690 |
| Cross-section | for #18AWG...#12AWG / 1mm2...4mm2 conductors |
| Dimensions | H37mm x W48mm x D26mm H1.46" x W1.89" x D1.02" |
| Order code / Manufacturer SKU | AX4202UL 1330006 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1330006 |
| Compliant with standard(s) | UL 508 (file number E353866) IEC 60947-5-1 EN 60947-5-1 CSA CCC RoHS compliant |
| Short Description | Auxiliary contact - 1330006 - Ex9C - mounts on 9A-150A cont. - 2NC - top mounting |
| Type | Option = Standard (No options) |
| Rated current | 1.9A (380Vac/400Vac/415Vac; AC-15) 0.31A (220Vdc/250Vdc; DC-15) 10A (Ith conventional free air thermal current) |
| Rated power | 720VA (AC-15) switching 69W (DC-13) switching |
| Normally Open (NO) auxliary contacts | 0 |
| Normally Closed (NC) auxiliary contacts | 2 |
| Contacts type | 2NC (2 Normally Closed) aux. contacts |
| Tightening torque | 1.7 |
| Degree of protection | IP20 |
| Net weight | 50 |
| Category code | Global_Cat_001003 Electrical components Motor control and protection |
| Product title | Auxiliary contact block / switch block - NOARK Ex9C series |
| Description generating formula | A |
| Description | Auxiliary contact block / switch block - mounts on 9A-150A cont. - NOARK (Ex9C series) - 2NC (2 Normally Closed) aux. contacts - Lift term. connection - top mounting - IP20 - equivalent to 1330006 |
| Catalogue connector | NOARK - Ex9C series AX4202UL |
| Mounting mode | top mounting |
