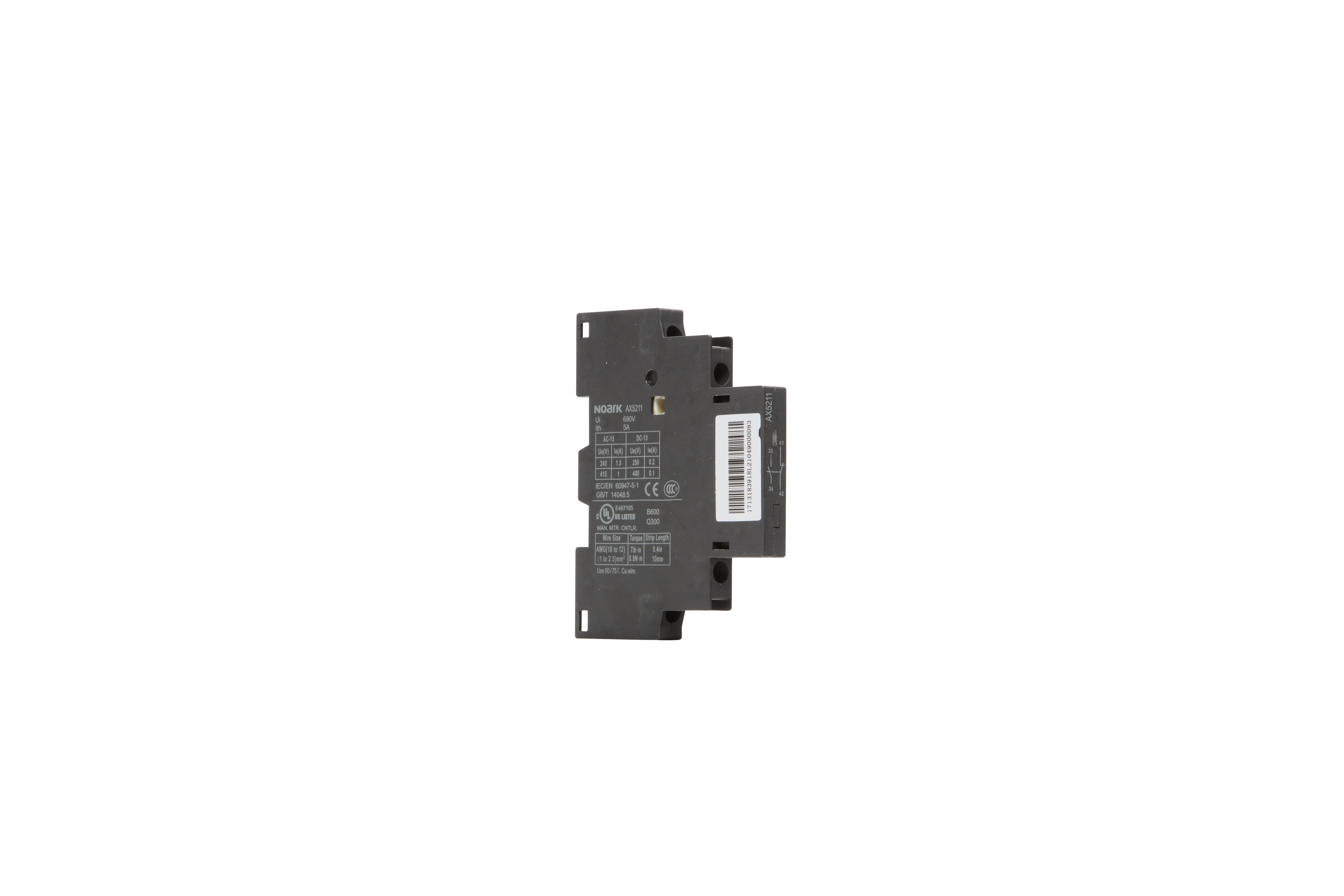

AX5211-Ex9S32/80 Auxiliary Contacy, Left Side, 1NO + 1NC
Regular price
$9.72 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Auxiliary contact |
| Product series / family name | Industrial controls > Manual Motor Starters (MMSs) > Accessories > Auxiliary contacts |
| Sub-range name | Ex9S32 series |
| Functions | Instantaneous auxiliary ON/OFF signalling contact block / switch block |
| Rated impulse voltage (Uimp) | 6 |
| Connection type | M3 slotted head screw connections |
| Cross-section | #18AWG / 1mm2 + 2 x #12AWG / 4mm2 conductors |
| Order code / Manufacturer SKU | AX5211 1600063 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1600063 |
| Technical compatibility with | Ex9S32 mtr. starter |
| Short Description | Instantaneous auxiliary ON/OFF signalling contact block - 1600063 - Ex9S32 - left mount |
| Type | Option = Standard (No options) |
| Rated current | Contacts ratings B600 / Q300 contact type 5A conventional heating current (Ith) |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Tightening torque | 0.8 |
| Category code | Global_Cat_001 Electrical components |
| Product title | Instantaneous auxiliary ON/OFF signalling contact block / switch block - NOARK Ex9S32 series |
| Description generating formula | A |
| Description | Instantaneous auxiliary ON/OFF signalling contact block / switch block - NOARK (Ex9S32 series) - 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts - M3 slotted head screw connections - left side mounting - compatible with Ex9S32 mtr. starter - equivalent to 1600063 |
| Product image quality | Good |
| Product Image (Full size) | AX52.jpg |
| Documents names | NOARK - Ex9S series - Datasheet.pdf |
| Catalogue connector | NOARK - Ex9S32 series AX5211 |
| Mounting mode | left side mounting |
