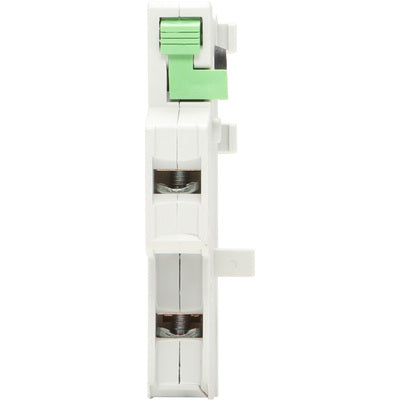

AXFD22-Auxiliary Contact, Ex9CK, Side Mounted , Ex9CK20~40, 3P/4P, 2NO+2NC Microswitch
Regular price
$30.24 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Auxiliary contact |
| Product series / family name | Industrial controls > Contactors > `Definite purpose contactors > Accessories > Auxiliary contacts |
| Sub-range name | Ex9CKT series |
| Functions | Auxiliary contact block / microswitch block |
| Design | mounts on 20-40A 3P cont. |
| Order code / Manufacturer SKU | AXFD22 1314053 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1314053 |
| Short Description | Auxiliary contact (microswitch) - 1314053 - Ex9CKT - mounts on 20-40A 3P cont. - 2 SPDT per side - side mounting |
| Type | Option = Standard (No options) |
| Rated current | 3A (drop-out at 120Vac) 1.5A (drop-out at 240Vac) 0.75A (drop-out at 480Vac) 0.6A (drop-out at 600Vac) 30A (pick-up at 120Vac) 15A (pick-up at 240Vac) 7.5A (pick-up at 480Vac) 6A (pick-up at 600Vac) 10A (continuous at 120Vac/240Vac/480Vac/600Vac) 15A (125Vac or 250Vac) 4A (120Vac on lamp load) 0.5A (125Vdc) 0.25A (250Vdc) |
| Normally Open (NO) auxliary contacts | 2 |
| Normally Closed (NC) auxiliary contacts | 2 |
| Contacts type | 2 SPDT per side |
| Category code | Global_Cat_001003 Electrical components Motor control and protection |
| Product title | Auxiliary contact block / microswitch block - NOARK Ex9CKT series |
| Description generating formula | A |
| Description | Auxiliary contact block / microswitch block - mounts on 20-40A 3P cont. - NOARK (Ex9CKT series) - 2 SPDT per side - Screw connection - side mounting - equivalent to 1314053 |
| Catalogue connector | NOARK - Ex9CKT series AXFD22 |
| Mounting mode | side mounting |
