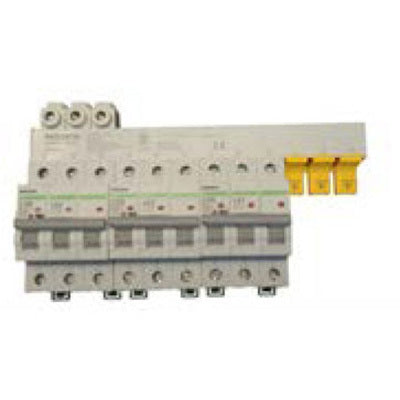

CBB1P18P18-Comb Bus Bar, UL 1077, 1P, 18 pins, 18 mm²
Regular price
$21.63 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Busbar (comb) |
| Product series / family name | Electrical protection > MCBs accessories > UL1077 > Busbars |
| Sub-range name | CBB busbar series |
| Functions | Comb busbar |
| Design | for UL1077 1-pole devices 90° bent |
| Poles | for 18 single-pole devices (18P) ``18P |
| Rated voltage (AC) | 600Vac |
| Cross-section | 18mm2 |
| Short circuit breaking rating | 10kA (J-fus. rating) |
| Dimensions | H35.4mm x W323mm x D21.2mm H1.39" x W12.72" x D0.83" |
| Order code / Manufacturer SKU | CBB1P18P18 1002045 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1002045 |
| Compliant with standard(s) | UL1077 CE compliant RoHS compliant |
| Short Description | Comb busbar UL1077 - 1002045 - 18P - 600Vac/1000Vdc - 18mm pitch - 18mm2 - 90° bent |
| Type | Option = Standard (No options) |
| Rated current | ``70A < In ≤ 80 80A (end feed) 160A (center feed) |
| Rated Voltage (DC) | 1000Vdc |
| Degree of protection | IP20 |
| Cross-sells with | FD50 EC10771 PC1077 TM802150S TM802153S |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Comb busbar - NOARK CBB busbar series |
| Description generating formula | A |
| Description | Comb busbar - for UL1077 1-pole devices - 90° bent - 0.71" / 18mm pitch - NOARK (CBB busbar series) - 80A (end feed) rated current - for 18 single-pole devices (18P) - 600Vac / 1000Vdc rated voltage - equivalent to 1002045 |
| Catalogue connector | NOARK - UL1077 busbar - CBB series CBB1P18P18 |
| Distance | 0.71" / 18mm pitch |
| Benefits | - Complete range of UL 489 listed miniature circuit breakers up to a 63A current rating - Breakers mount on standard 35mm DIN rail - B1NQ also provides a flush and surface mount options with additional mounting clips - Standard ratings of 10kA at 480Y/277Vac and 10kA at 125Vdc - Suitable for branch circuit device protection - Trip-free design - breaker cannot be defeated by holding the handle in the ON position - Captive screws cannot be lost - For use in applications for which UL 1077 or CSA C22.2 No.235 are also allowed - Field installable shunt trip and auxiliary switch subsequent mounting - Available with provisions for ring tongue terminals - Module width of only 0.71 in (18 mm) per pole - Contact position indicator (red/green) - Possibility for locking the toggle in ON or OFF position |
