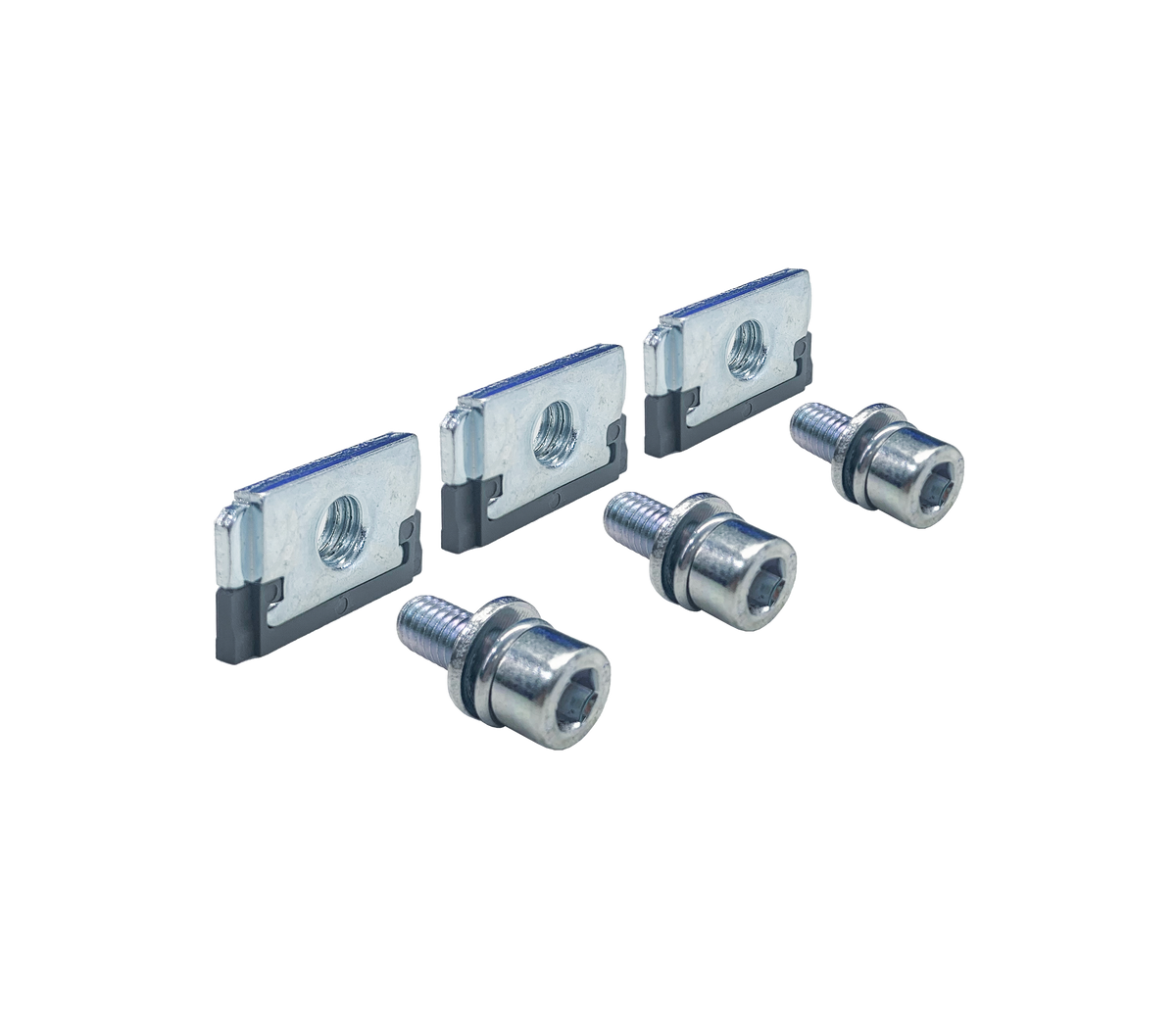

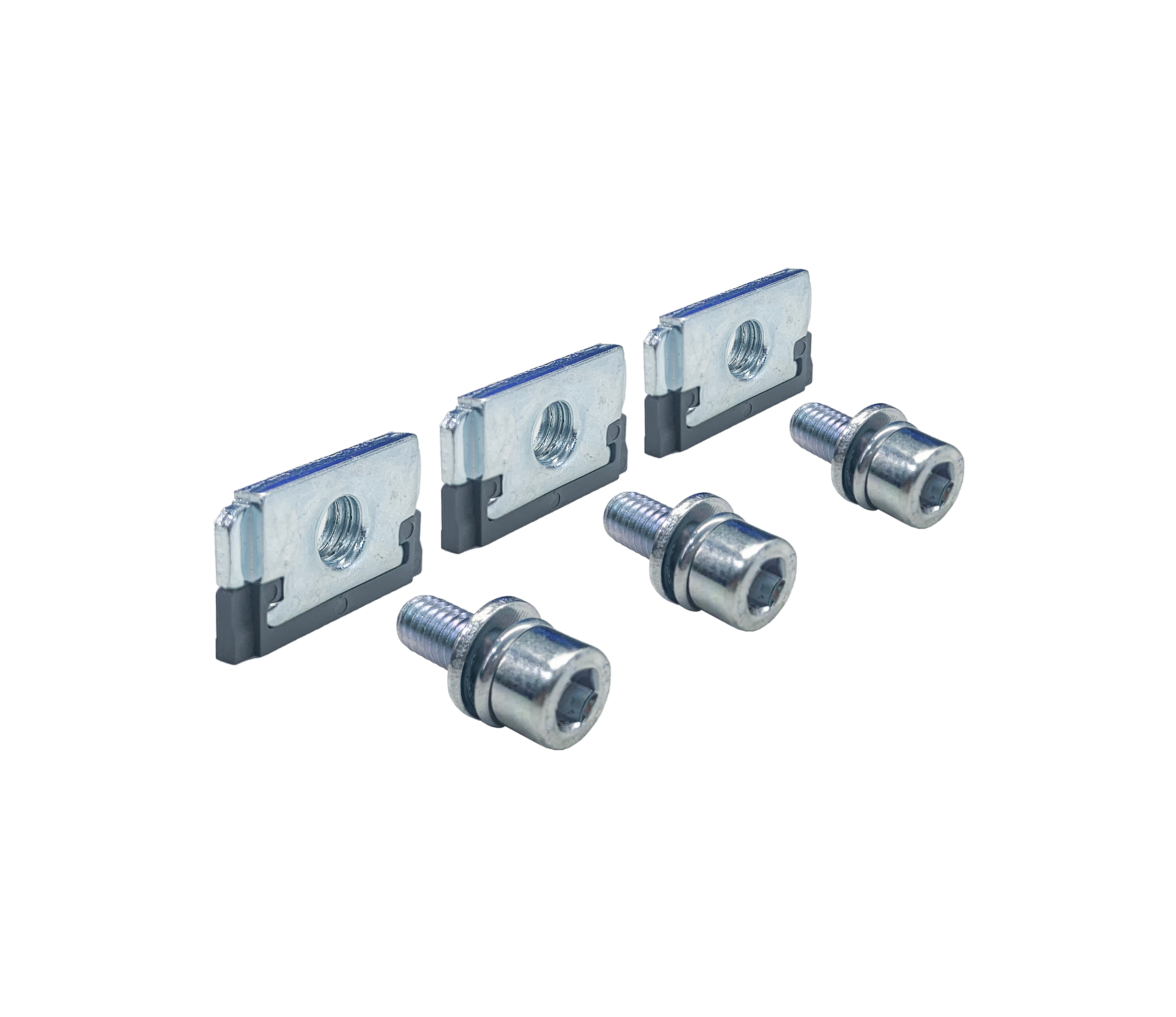

CKLB21-Lugs to Busbar Conversion Kit (M1) Suitable for Line side OR Load side connections.
Regular price
$15.58 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Mounting accessory |
| Product series / family name | Electrical protection > MCCBs and disconnector switches accessories > Connection hardware |
| Functions | Lug-to-busb. conversion kit |
| Design | M6x16 bolt |
| Dimensions | H18.5mm x W14.2mm x D14.8mm bus pad (upside) H17.5mm x W14.2mm x D16.8mm bus pad (down-side) |
| Order code / Manufacturer SKU | CKLB21 1102722 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1102722 |
| Technical compatibility with | for M1 frame size |
| Short Description | Lug-to-busbar conversion kit - 1102722 - M6x16 bolt - for M1 |
| Type | Option = Standard (No options) |
| Tightening torque | 6 |
| Net weight | 100 |
| Contents | 3 x plates 1 x screw |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Lug-to-busb. conversion kit - NOARK |
| Description generating formula | A |
| Description | Lug-to-busb. conversion kit - M6x16 bolt - for M1 frame size - NOARK - equivalent to 1102722 |
| Catalogue connector | NOARK - Circuit breaker accessories CKLB21 |
