DA1408 Ccompression connector with 14-10 AWG wire size, 0 DEG barrel angle, Standard barrel size, 1 hole(s), and #8 bolt size.
Regular price
$0.60 CAD
Couldn't load pickup availability
High-performance compression connector with 14-10 AWG wire size, 0 DEG barrel angle, Standard barrel size, 1 hole(s), and #8 bolt size.
| Wire Size | 14-10 AWG |
| Barrel Angle | 0 DEG |
| Barrel Size | Standard |
| Number of Holes | 1 |
| Flex Class | - |
| Bolt Size | #8 |

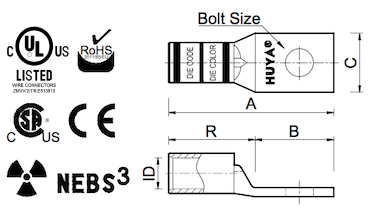

| Total Length (A) | 1.33 in |
| Tongue Length (B) | 0.68 in |
| Tongue Width (C) | 0.36 in |
| Tongue Thickness | 0.05 in |
| Barrel Length (R) | 0.65 in |
| Barrel Inner Diameter | 0.13 in |
| Die Code | - |
| Die Color | -- |
| Material | Cu |
| Finish | Electro tin plated |
| Voltage Rating | 600V-35KV |
| Certification | UL/CUL, CSA |
