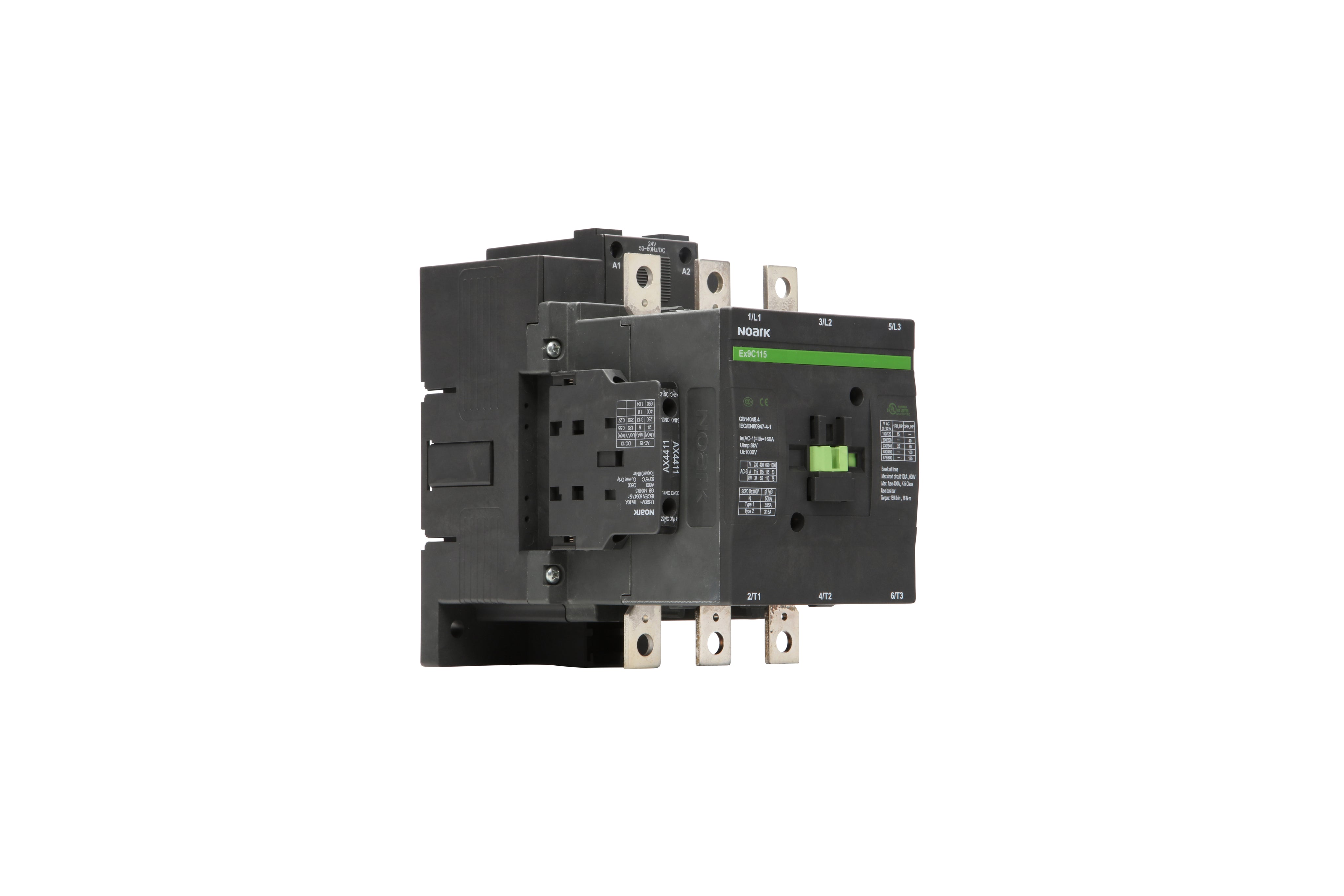

Ex9C150F22L-Contactor, Ex9C, Standard, FVNR, 150A, Wide Range Operating Coil, 2NO+2NC, 250-500Vac/dc, 3NO
Regular price
$440.96 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Contactor |
| Product series / family name | Industrial controls > Contactors > ``Standard contactors > `DOL / FVNR |
| Sub-range name | Ex9C series |
| Functions | Contactor |
| Poles | 3-poles (3P; 3NO) |
| Rated operating voltage (Ue) | (aux. contacts) 690 |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 1000 |
| Connection type | M8 screw connection (power circuits) M3.5 screw connections (auxiliary contact) |
| Cross-section | 1 x #4AWG / 25mm2 and 2 x 250MCM / 120mm2 conductors (main power connection; bare flexible cable) 1 x #4AWG / 25mm2 and 2 x 250MCM / 120mm2 conductors (main power connection; bare rigid cable) 2 x 20mm 5mm busbars #18AWG...#12AWG / 1mm2...2.5mm2 conductors (auxiliary contact terminal connection) |
| Dimensions | H173mm x W120mm x L174mm H6.81" x W4.75" x L6.85" |
| Ambient air temperature for operation | -4°F...+140°F / -20°C...+60 |
| Ambient air temperature for storage | -76°F...+176°F / -60°C...+80 |
| Order code / Manufacturer SKU | Ex9C150F22L 1321439 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1321439 |
| Compliant with standard(s) | UL 508 (file number E353866) IEC 60947 EN 60947 CSA CCC RoHS compliant Production Standard -- IEC 60947-1 Production Standard -- IEC 60947-4-1 Production Standard -- UL 60947-1 Production Standard -- UL 60947-4-1 Environmental Testing According to IEC 60068-2-1 / IEC 60068-2-2 / IEC 60068-2-11 / IEC 60068-2-30 |
| Electrical durability | (AC-4; 380/400V) 200 000 (AC-3; 380/400V) 1 000 000 |
| Mechanical durability | 8 000 000 |
| Short Description | Contactor - 1321439 - Ex9C - 150A - 250-500Vac/dc - 3P (3NO) - 2NO+2NC aux. contacts |
| Type | ``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = 50Hz/60Hz `Coil frequency = 50Hz `Coil frequency = 60Hz `Coil frequency = DC Option = Standard (No options) |
| Rated current | `100A < In ≤ 150 150A (380/400Vac; AC-3) 150A (660/690Vac; AC-3) 185A (690Vac; AC-1) 200A (24Vdc; DC-1; 1P/2P/3P series connection) 200A (48/75Vdc; DC-1; 1P/2P/3P series connection) 150A (125Vdc; DC-1; 1P series connection) 200A (125Vdc; DC-1; 2P/3P series connection) 160A (24Vdc; DC-2 to DC-5; 1P/2P/3P series connection) 7.5A (48/75Vdc; DC-2 to DC-5; 1P series connection) 160A (48/75Vdc; DC-2 to DC-5; 2P/3P series connection) 2.5A (125Vdc; DC-2 to DC-5; 1P series connection) 160A (125Vdc; DC-2 to DC-5; 2P/3P series connection) 2A (225Vdc; DC-2 to DC-5; 1P series connection) 7.5A (225Vdc; DC-2 to DC-5; 2P series connection) 160A (225Vdc; DC-2 to DC-5; 3P series connection) 6A (24Vac; AC-15) 3.13A (230Vac; AC-15) 3A (240Vac; AC-15) 1.8A (400Vac; AC-15) 1.04A (690Vac; AC-15) 0.55A (125Vdc; DC-13) 0.31A (220Vdc; DC-13) 0.27A (250Vdc; DC-13) 185A (Ith conventional free air thermal current at 40°C ambient) 170A (Ith conventional free air thermal current at 60°C ambient) 160A (Ith conventional free air thermal current at 70°C ambient) |
| Control Voltage (DC) | 212.5-550Vdc (250Vdc-500Vdc nom.; 0.85...1.1 x Uc) |
| Control Voltage (AC) | 212.5-550Vac (250Vac-500Vac nom.; 50/60Hz; 0.85...1.1 x Uc) |
| Power consumption | (AC; inrush) 400 (AC; sealed) 18 (DC; hold) 5 (DC; pick-up) 400 |
| Response time | (operating / closing time) 75-120ms / 0.075-0.12 (drop-off / opening time) 45-70ms / 0.045-0.07 |
| Normally Open (NO) auxliary contacts | 2 |
| Normally Closed (NC) auxiliary contacts | 2 |
| Contacts type | 2NO+2NC (2 Normally Open + 2 Normally Closed) aux. contacts |
| Connection type (electrical) | Terminals (Screw-clamp) |
| Tightening torque | (main power terminal connection) 18 (busbar terminal connection) 18 (auxiliary contact connection) 1.7 |
| Degree of protection | IP20 |
| Degree of pollution | Class III |
| Net weight | 3000 |
| Cross-sells with | AX4202UL AX4204UL AX4211UL AX4213UL AX4220UL AX4222UL AX4231UL AX4240UL AX4402UL AX4411UL AX4420UL MIT44UL PCL185UL SDWK45-L SDWK41 SDWK45 LTC46NA1 TCV46 COU41F185LUL |
| Category code | Global_Cat_001003001 Electrical components Motor control and protection Magnetic contactors |
| Product title | Contactor - NOARK Ex9C series |
| Description generating formula | A |
| Description | Contactor - NOARK (Ex9C series) - 3-poles (3P; 3NO) - 150A (380/400Vac; AC-3) rated current - 212.5-550Vac (250Vac-500Vac nom.; 50/60Hz; 0.85...1.1 x Uc) / 212.5-550Vdc (250Vdc-500Vdc nom.; 0.85...1.1 x Uc) coil - 2NO+2NC aux. contact - Screw connection - 75kW (380/400Vac; AC-3) / 30HP (220-240Vac; single-phase; UL) / 125HP (440-480Vac; 3-phase; UL) rated power - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - IP20 - equivalent to 1321439 |
| Catalogue connector | NOARK - Ex9C series Ex9C150F22L |
| Mounting mode | screw mounting on a plate (8mm holes) |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) 6562ft / 2000m max. height above sea level |
| Rated active power (kW) | ```75 75kW (380/400Vac; AC-3) 45kW (230Vac; AC-3) 132kW (660/690Vac; AC-3) 90kW (1000Vac; AC-3) |
| Rated power (HP) | ``125 125HP (440-480Vac; 3-phase; UL) 30HP (220-240Vac; single-phase; UL) 50HP (200-208Vac; 3-phase; UL) 60HP (220-240Vac; 3-phase; UL) 150HP (550-600Vac; 3-phase; UL) |
| Power factor (cos phi) | 0.9-0.95 (coil) |
| Operating rate | (AC-3) 750 (AC-4) 130 |
| Benefits | Ex9C contactors are intended for various applications including heavy industrial loads. 9 frame sizes allows optimization of electrical parameters and mechanical dimensions. A range of overload relays are available in a variety of frame sizes to fit respective contactors of given rated current. - Nine frame sizes with rated current up to 1000A at 690V AC-3 - Coil control voltage available in AC and DC with ranges from 24-600V - Wide range electronic coil available for 9-500A contactors features built-in surge suppression - DIN rail 35mm and panel mountable |
