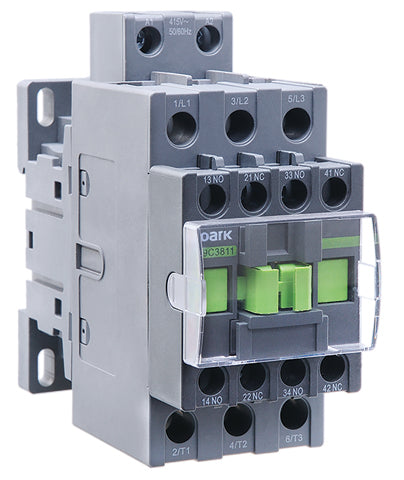

Ex9C1811X7-Contactor, Ex9C, Standard, FVNR, 18A, AC, 1NO+1NC, 208V, 50/60 Hz, 3NO
Regular price
$33.28 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Contactor |
| Product series / family name | Industrial controls > Contactors > ``Standard contactors > `DOL / FVNR |
| Sub-range name | Ex9C series |
| Functions | Contactor |
| Poles | 3-poles (3P; 3NO) |
| Rated operating voltage (Ue) | (aux. contacts) 690 |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | 690 |
| Connection type | M3.5 screw connection (power circuits) M3.5 screw connections (auxiliary contact) |
| Cross-section | #18AWG...#10AWG / 1.5mm2...6mm2 conductors (main power connection; bare flexible cable) #18AWG...#10AWG / 1.5mm2...6mm2 conductors (main power connection; bare rigid cable) #18AWG...#12AWG / 1mm2...2.5mm2 conductors (auxiliary contact terminal connection) |
| Dimensions | H94mm x W45mm x L91mm H3.7" x W1.77" x L3.58" |
| Ambient air temperature for operation | -4°F...+140°F / -20°C...+60 |
| Ambient air temperature for storage | -76°F...+176°F / -60°C...+80 |
| Order code / Manufacturer SKU | Ex9C1811X7 1320629 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1320629 |
| Compliant with standard(s) | UL 508 (file number E353866) IEC 60947 EN 60947 CSA CCC RoHS compliant Production Standard -- IEC 60947-1 Production Standard -- IEC 60947-4-1 Production Standard -- UL 60947-1 Production Standard -- UL 60947-4-1 Environmental Testing According to IEC 60068-2-1 / IEC 60068-2-2 / IEC 60068-2-11 / IEC 60068-2-30 |
| Electrical durability | (AC-4; 380/400V) 40 000 (AC-3; 380/400V) 1 200 000 |
| Mechanical durability | 10 000 000 |
| Short Description | Contactor - 1320629 - Ex9C - 18A - 208Vac (50/60Hz) - 3P (3NO) - 1NO+1NC aux. contacts |
| Type | ``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = 50Hz/60Hz `Coil frequency = 50Hz `Coil frequency = 60Hz Option = Standard (No options) |
| Rated current | ``15A < In ≤ 20 18A (380/400Vac; AC-3) 10.6A (660/690Vac; AC-3) 32A (690Vac; AC-1) 32A (24Vdc; DC-1; 1P/2P/3P series connection) 32A (48/75Vdc; DC-1; 1P/2P/3P series connection) 15A (125Vdc; DC-1; 1P series connection) 25A (125Vdc; DC-1; 2P/3P series connection) 1A (225Vdc; DC-1; 1P series connection) 4A (225Vdc; DC-1; 2P series connection) 25A (225Vdc; DC-1; 3P series connection) 25A (24Vdc; DC-2 to DC-5; 1P/2P/3P series connection) 25A (48/75Vdc; DC-2 to DC-5; 1P/2P/3P series connection) 2A (125Vdc; DC-2 to DC-5; 1P series connection) 25A (125Vdc; DC-2 to DC-5; 2P/3P series connection) 0.5A (225Vdc; DC-2 to DC-5; 1P series connection) 2A (225Vdc; DC-2 to DC-5; 2P series connection) 8A (225Vdc; DC-2 to DC-5; 3P series connection) 6A (120Vac; AC-15) 3A (240Vac; AC-15) 1.9A (380Vac; AC-15) 1.2A (600Vac; AC-15) 0.55A (125Vdc; DC-13) 0.31A (220Vdc; DC-13) 0.27A (250Vdc; DC-13) 32A (Ith conventional free air thermal current at 40°C ambient) 32A (Ith conventional free air thermal current at 60°C ambient) 24A (Ith conventional free air thermal current at 70°C ambient) |
| Control Voltage (AC) | 176.8-228.8Vac (208Vac nom.; 50/60Hz; 0.85...1.1 x Uc) |
| Power consumption | (inrush) 80 (sealed) 9.5 |
| Response time | (operating / closing time) 14-30ms / 0.014-0.03 (drop-off / opening time) 6-20ms / 0.006-0.02 |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Connection type (electrical) | Terminals (Screw-clamp) |
| Tightening torque | (main power terminal connection) 1.7 (auxiliary contact connection) 1.7 |
| Degree of protection | IP20 |
| Degree of pollution | Class III |
| Net weight | 350 |
| Cross-sells with | AX4202UL AX4204UL AX4211UL AX4213UL AX4220UL AX4222UL AX4231UL AX4240UL AX4311UL MIT42UL SDWK41 COU41A18XUL CCU42BUL |
| Category code | Global_Cat_001003001 Electrical components Motor control and protection Magnetic contactors |
| Product title | Contactor - NOARK Ex9C series |
| Description generating formula | A |
| Description | Contactor - NOARK (Ex9C series) - 3-poles (3P; 3NO) - 18A (380/400Vac; AC-3) rated current - 176.8-228.8Vac (208Vac nom.; 50/60Hz; 0.85...1.1 x Uc) coil - 1NO+1NC aux. contact - Screw connection - 7.5kW (380/400Vac; AC-3) / 3HP (220-240Vac; single-phase; UL) / 10HP (440-480Vac; 3-phase; UL) rated power - DIN rail mounting (NS35/7.5) - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - IP20 - equivalent to 1320629 |
| Catalogue connector | NOARK - Ex9C series Ex9C1811X7 |
| Mounting mode | DIN rail mounting (NS35/7.5) screw mounting on a plate (4mm holes) |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) 6562ft / 2000m max. height above sea level |
| Rated active power (kW) | ````7.5 7.5kW (380/400Vac; AC-3) 4kW (230Vac; AC-3) 10kW (660/690Vac; AC-3) |
| Rated power (HP) | ```10 10HP (440-480Vac; 3-phase; UL) 3HP (220-240Vac; single-phase; UL) 1.5HP / 1-1/2HP (110-120Vac; single-phase; UL) 5HP (200-208Vac; 3-phase; UL) 5HP (220-240Vac; 3-phase; UL) 15HP (550-600Vac; 3-phase; UL) |
| Operating rate | (AC-3) 1200 (AC-4) 300 |
| Benefits | Ex9C contactors are intended for various applications including heavy industrial loads. 9 frame sizes allows optimization of electrical parameters and mechanical dimensions. A range of overload relays are available in a variety of frame sizes to fit respective contactors of given rated current. - Nine frame sizes with rated current up to 1000A at 690V AC-3 - Coil control voltage available in AC and DC with ranges from 24-600V - Wide range electronic coil available for 9-500A contactors features built-in surge suppression - DIN rail 35mm and panel mountable |
