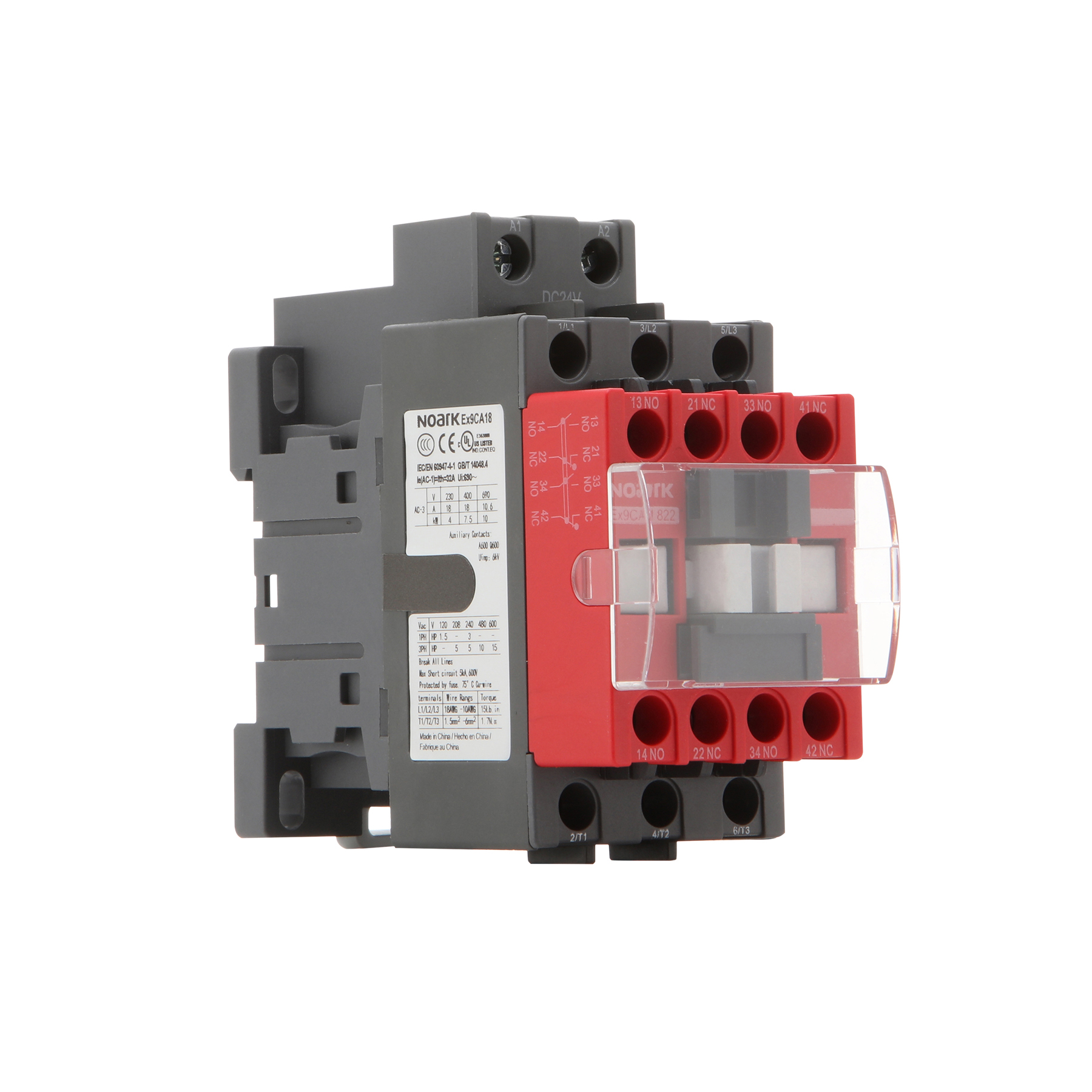

Ex9CA25D11G
Primary brand NOARK Main function Contactor Product series / family name Industrial controls > Contactors > Safety contactors Sub-range name Ex9CA series Functions Safety contactor Poles 3-poles (3P; 3NO)```3P (3NO) Rated...
$236.50 CAD
sold in last hours
People are viewing this right now
Description
| Primary brand | NOARK |
| Main function | Contactor |
| Product series / family name | Industrial controls > Contactors > Safety contactors |
| Sub-range name | Ex9CA series |
| Functions | Safety contactor |
| Poles | 3-poles (3P; 3NO) ```3P (3NO) |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | 690 |
| Dimensions | H108mm x W45mm x L100mm H4.25" x W1.77" x L3.94" |
| Ambient air temperature for operation | -4°F...+140°F / -20°C...+60 |
| Ambient air temperature for storage | -76°F...+176°F / -60°C...+80 |
| Order code / Manufacturer SKU | Ex9CA25D11G 1322013 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1322013 |
| Compliant with standard(s) | UL 60947-1 UL 60947-4-1 IEC 60947-1 IEC 60947-4-1 GB/T14048.4 Environmental Testing According to IEC 60068-2-1 / IEC 60068-2-2 / IEC 60068-2-11 / IEC 60068-2-30 |
| Electrical durability | (AC-4; 380/400V) 50 000 (AC-3; 380/400V) 1 200 000 (B10D typical lifetime; AC coil) 1 130 000 |
| Mechanical durability | 10 000 000 |
| Short Description | Safety contactor - 1322013 - Ex9CA - 25A - 120Vdc - 3P (3NO) - 1NO+1NC aux. contacts |
| Type | ``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = DC Option = Standard (No options) |
| Rated current | ``20A < In ≤ 25 25A (380/400Vac; AC-3) 17.3A (660/690Vac; AC-3) 40A (690Vac; AC-1) 10A (AC-12) 6A (120Vac; AC-15) 3A (230Vac; AC-15) 3A (240Vac; AC-15) 1.9A (400Vac; AC-15) 1.5A (480Vac; AC-15) 1.4A (500Vac; AC-15) 1.2A (600Vac; AC-15) 2.8 (24Vdc; DC-13) 1.2 (48Vdc; DC-13) 0.55 (110Vdc; DC-13) 0.27 (220Vdc; DC-13) 0.15 (440Vdc; DC-13) 40A (Ith conventional free air thermal current at 40°C ambient) 40A (Ith conventional free air thermal current at 60°C ambient) 28A (Ith conventional free air thermal current at 70°C ambient) 600A (switching capacity; load carrying capacity per UL) |
| Rated Voltage (DC) | 600Vdc (load carrying capacity per UL) |
| Control Voltage (DC) | `120 120Vdc 96-132Vdc pick-up (0.85...1.1 x Us) -- control voltage above which contactor is guaranteed to close 12-90Vdc drop-out (0.1...0.75 x Us) -- control voltage below which contactor is guaranteed to open |
| Power consumption | (hold-in) max. 3.5 (pick-up) max. 70 |
| Response time | (closing delay) 100-170ms / 0.1-0.17 (opening delay) 30-100ms / 0.03-0.1 |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Degree of pollution | Class III |
| Net weight | 450 |
| Category code | Global_Cat_002006 Automation components Safety components |
| Product title | Safety contactor - NOARK Ex9CA series |
| Description generating formula | A |
| Description | Safety contactor - NOARK (Ex9CA series) - 3-poles (3P; 3NO) - 25A (380/400Vac; AC-3) rated current - 120Vdc coil - 1NO+1NC aux. contact - 11kW (380/400Vac; AC-3) / 3HP (220-240Vac; single-phase; UL) / 15HP (440-480Vac; 3-phase; UL) rated power - DIN rail mounting (35mm) - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - equivalent to 1322013 |
| Catalogue connector | NOARK - Ex9CA series Ex9CA25D11G |
| Mounting mode | DIN rail mounting (35mm) |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) 6562ft / 2000m max. height above sea level |
| Rated active power (kW) | ```11 11kW (380/400Vac; AC-3) 15kW (660/690Vac; AC-3) |
| Rated power (HP) | ```15 15HP (440-480Vac; 3-phase; UL) 3HP (220-240Vac; single-phase; UL) 2HP (110-120Vac; single-phase; UL) 7.5HP / 7-1/2HP (200-208Vac; 3-phase; UL) 7.5HP / 7-1/2HP (220-240Vac; 3-phase; UL) 20HP (550-600Vac; 3-phase; UL) |
| Operating rate | (AC-3) 1000 (AC-4) 150 |
| Benefits | The NOARK Ex9CA Safety Contactor is designed for use in safety function applications. It offers special features that allow the design of safe control circuits with current ratings up to 38 Amps. The Normally Closed (NC) Auxiliary contact is a mirror contact to the main contacts and is mechanically linked to the Normally Open (NO) Auxiliary contacts. This allows for optimal design selections in SRP/CS. - Positively guided mirror contacts/mechanically linked contacts according to IEC/UL60947-4-1 Annex F, IEC/UL60947-5-1 Annex L - Mirror contacts/ mechanically linked symbol on the side of Aux block - Fixed transparent anti-dust cover for easy identification of the device action and prevents the manual operation - AC or DC operating coils - Integrated body with built in auxiliary contacts up to 2NC and 2NO - Integrated surge suppression on DC coil models - 5-Year limited warranty |
