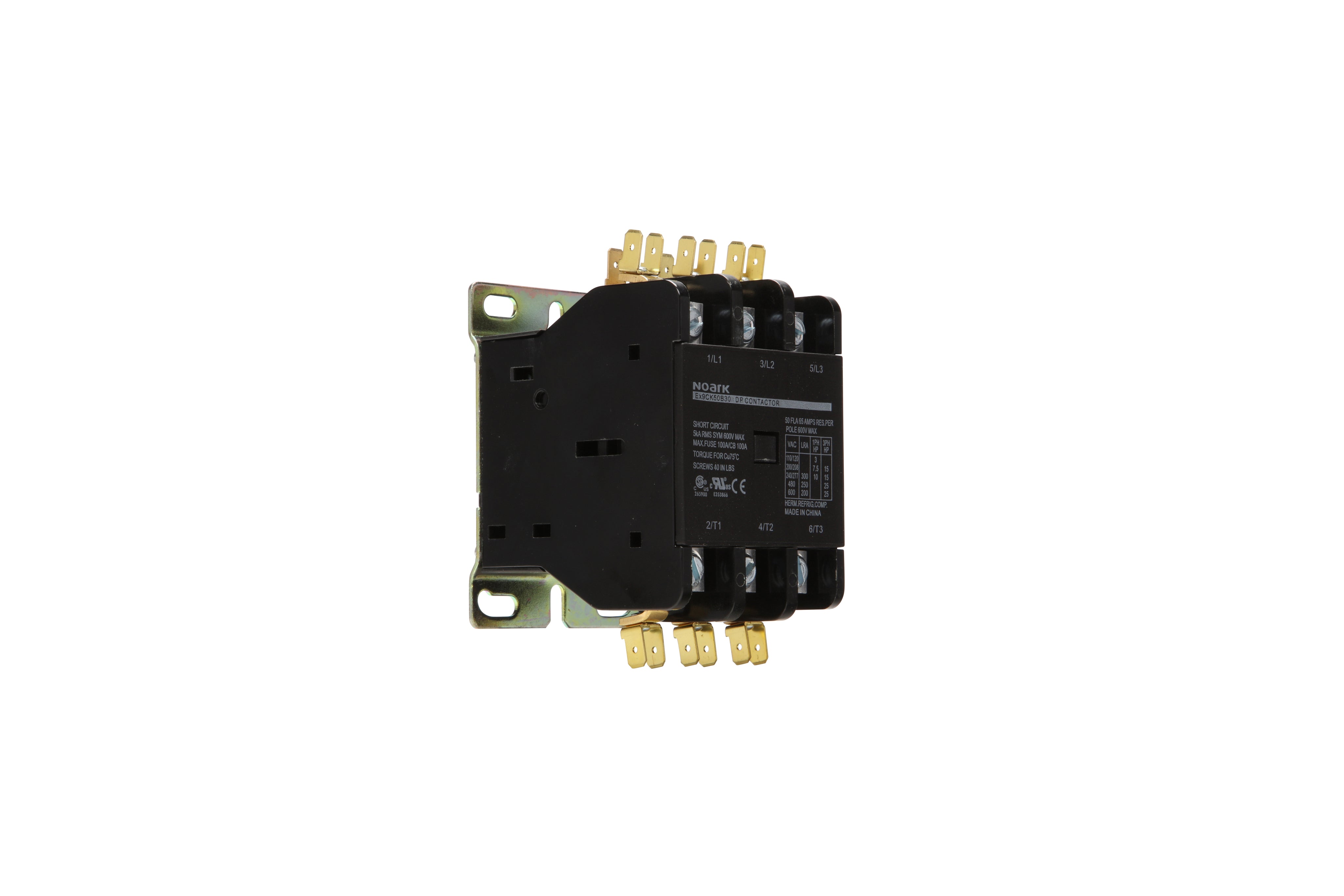

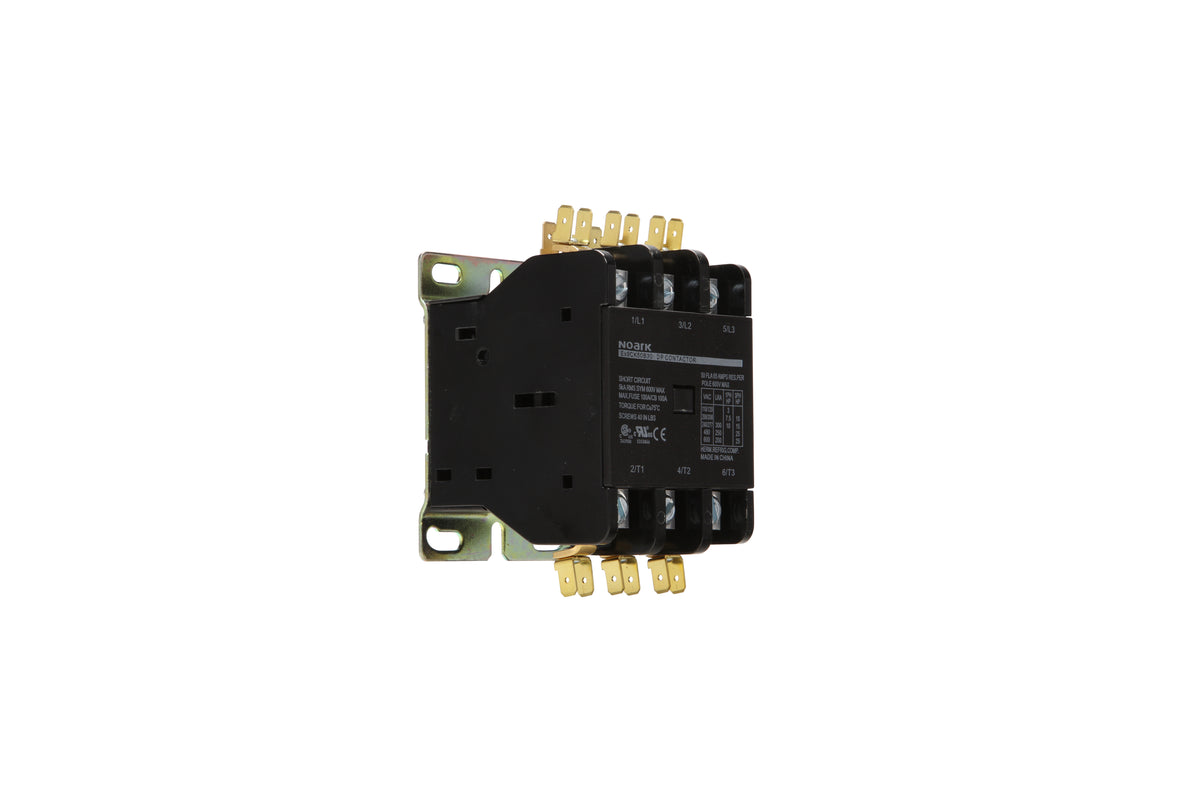

Ex9CK60B30G7-Definite Purpose Contactor, Ex9CK, Lug, 60 A, 3NO, 120V, 50/60 Hz
Regular price
$82.22 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Contactor |
| Product series / family name | Industrial controls > Contactors > `Definite purpose contactors |
| Sub-range name | Ex9CK series |
| Functions | Definite-purpose (DP) contactor |
| Poles | 3-poles (3P; 3NO) |
| Connection type | Dual FASTON Quick Connect spade connectors (2 connectors per pole) |
| Cross-section | #14AWG...#6AWG / 2.5mm2...16mm2 conductors (Copper rigid cable) #10AWG...#8AWG / 4mm2...10mm2 conductors (Copper flexible stranded cable) |
| Short circuit breaking rating | 100kA (480Vac with MCCB; at 600Vac with fuse) |
| Dimensions | H118mm x W67.5mm x D79mm H4.65" x W2.66" x D3.11" |
| Order code / Manufacturer SKU | Ex9CK60B30G7 1311672 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1311672 |
| Compliant with standard(s) | UL (file number E353866) IEC 60947-4-1 EN 60947-4-1 CSA RoHS compliant VDE Insulation -- Class B 266°F (130°C) |
| Technical compatibility with | Recommended protection -- 100A M1N series circuit breaker or 200A class J/class L fuse |
| Short Description | Definite-purpose (DP) contactor - 1311672 - Ex9CK - 60A - 120Vac (50/60Hz) - 3P (3NO) |
| Type | ``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = 50Hz/60Hz `Coil frequency = 50Hz `Coil frequency = 60Hz Option = special version (with Dual FASTON Quick Connect spade connector) |
| Rated current | ``50A < In ≤ 60 60A (FLA) 60A (at 240/277Vac; 480Vac; 600Vac) 75A (Resistive Load Amps; 600Vac) 360A (240/277Vac; Locked Rotor Amperes) 300A (480Vac; Locked Rotor Amperes) 240A (600Vac; Locked Rotor Amperes) |
| Control Voltage (AC) | 120Vac (50/60Hz) |
| Power consumption | (inrush; 50Hz) 84 (inrush; 60Hz) 83 (sealed; 50Hz) 14 (sealed; 60Hz) 9.3 |
| Normally Open (NO) auxliary contacts | 0 |
| Normally Closed (NC) auxiliary contacts | 0 |
| Connection type (electrical) | Lug connection FASTON connector |
| Tightening torque | (main circuit) 4-7 (coil) 0.8-1.2 |
| Net weight | 590 |
| Cross-sells with | AXFC11 AXFC11Q |
| Category code | Global_Cat_001003001 Electrical components Motor control and protection Magnetic contactors |
| Product title | Definite-purpose (DP) contactor - NOARK Ex9CK series |
| Description generating formula | A |
| Description | Definite-purpose (DP) contactor - NOARK (Ex9CK series) - 3-poles (3P; 3NO) - 60A (FLA) rated current - 120Vac (50/60Hz) coil - Lug connection for line and load sides + Dual FASTON Quick Connect spade connectors (2 connectors per pole) - 30HP (600Vac; 3-phase) rated power - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - equivalent to 1311672 |
| Catalogue connector | NOARK - Ex9CK series Ex9CK60B30G7 |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) |
| Rated power (HP) | ```30 30HP (600Vac; 3-phase) 5HP (110/120Vac; single-phase) 7.5HP / 7-1/2HP (200/208Vac; single-phase) 10HP (240/277Vac; single-phase) 25HP (200/208Vac; 3-phase) 25HP (240/277Vac; 3-phase) 30HP (480Vac; 3-phase) |
