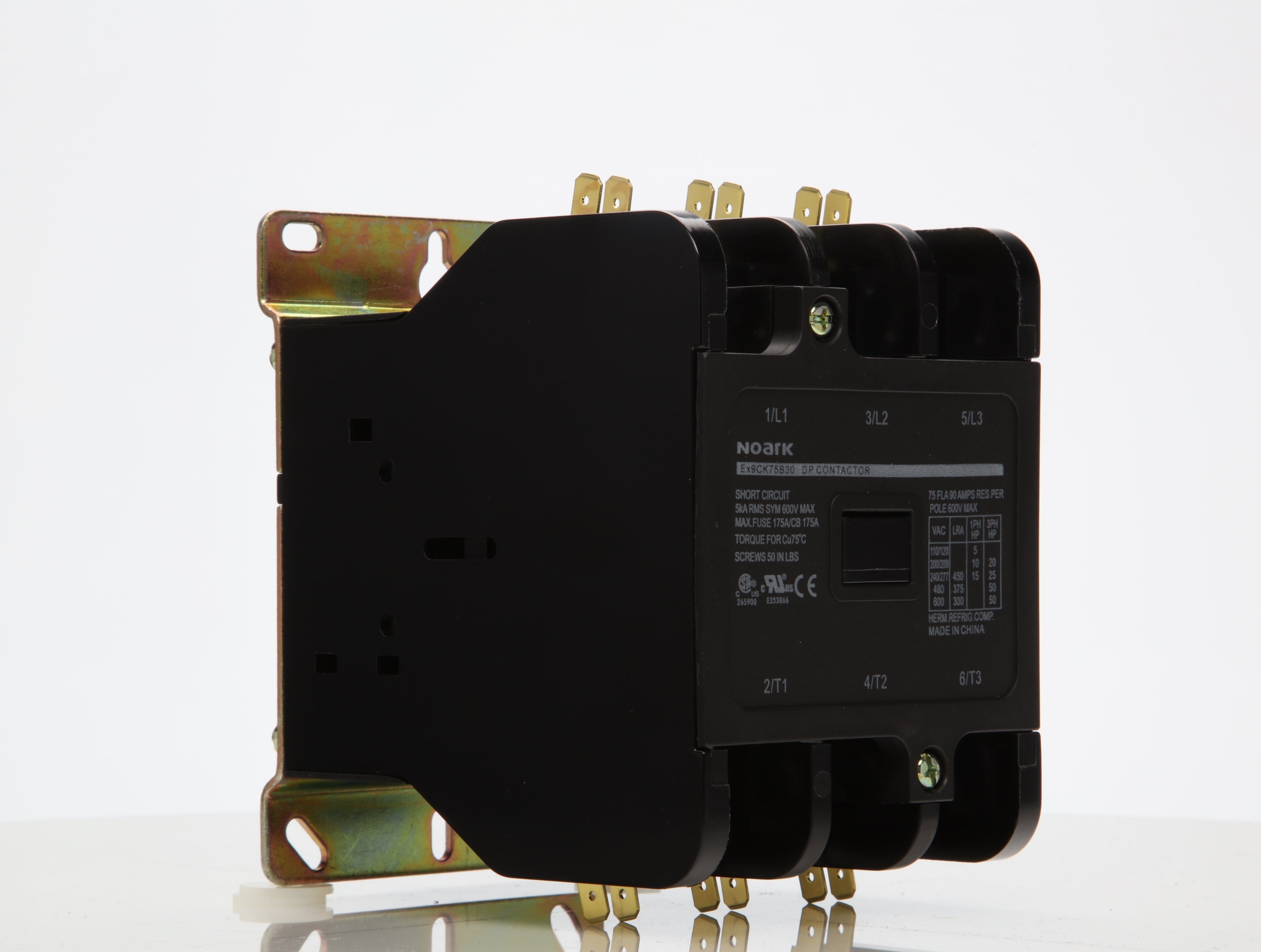

Ex9CK90B30G7-Definite Purpose Contactor, Ex9CK, Lug, 90 A, 3NO, 120V, 50/60 Hz
Regular price
$163.24 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Contactor |
| Product series / family name | Industrial controls > Contactors > `Definite purpose contactors |
| Sub-range name | Ex9CK series |
| Functions | Definite-purpose (DP) contactor |
| Poles | 3-poles (3P; 3NO) |
| Connection type | Dual FASTON Quick Connect spade connectors (2 connectors per pole) |
| Cross-section | #4AWG...#3AWG / 25mm2...35mm2 conductors (Copper rigid cable) #8AWG...#4AWG / 16mm2...25mm2 conductors (Copper flexible stranded cable) |
| Short circuit breaking rating | 100kA (480Vac with MCCB; at 600Vac with fuse) |
| Dimensions | H133mm x W89mm x D116mm H5.24" x W3.5" x D4.57" |
| Order code / Manufacturer SKU | Ex9CK90B30G7 1311700 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1311700 |
| Compliant with standard(s) | UL (file number E353866) IEC 60947-4-1 EN 60947-4-1 CSA RoHS compliant VDE Insulation -- Class B 266°F (130°C) |
| Technical compatibility with | Recommended protection -- 125A M1N series circuit breaker or 200A class J/class L fuse |
| Short Description | Definite-purpose (DP) contactor - 1311700 - Ex9CK - 90A - 120Vac (50/60Hz) - 3P (3NO) |
| Type | ``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = 50Hz/60Hz `Coil frequency = 50Hz `Coil frequency = 60Hz Option = special version (with Dual FASTON Quick Connect spade connector) |
| Rated current | ``80A < In ≤ 90 90A (FLA) 90A (at 240/277Vac; 480Vac; 600Vac) 120A (Resistive Load Amps; 600Vac) 540A (240/277Vac; Locked Rotor Amperes) 450A (480Vac; Locked Rotor Amperes) 360A (600Vac; Locked Rotor Amperes) |
| Control Voltage (AC) | 120Vac (50/60Hz) |
| Power consumption | (inrush; 50Hz) 165 (inrush; 60Hz) 250 (sealed; 50Hz) 30 (sealed; 60Hz) 27 |
| Normally Open (NO) auxliary contacts | 0 |
| Normally Closed (NC) auxiliary contacts | 0 |
| Connection type (electrical) | Lug connection FASTON connector |
| Tightening torque | (main circuit) 4-7 (coil) 0.8-1.2 |
| Net weight | 1510 |
| Cross-sells with | AXFC11 AXFC11Q |
| Category code | Global_Cat_001003001 Electrical components Motor control and protection Magnetic contactors |
| Product title | Definite-purpose (DP) contactor - NOARK Ex9CK series |
| Description generating formula | A |
| Description | Definite-purpose (DP) contactor - NOARK (Ex9CK series) - 3-poles (3P; 3NO) - 90A (FLA) rated current - 120Vac (50/60Hz) coil - Lug connection for line and load sides + Dual FASTON Quick Connect spade connectors (2 connectors per pole) - 60HP (600Vac; 3-phase) rated power - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - equivalent to 1311700 |
| Catalogue connector | NOARK - Ex9CK series Ex9CK90B30G7 |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) |
| Rated power (HP) | ```60 60HP (600Vac; 3-phase) 7.5HP / 7-1/2HP (110/120Vac; single-phase) 15HP (200/208Vac; single-phase) 20HP (240/277Vac; single-phase) 25HP (200/208Vac; 3-phase) 30HP (240/277Vac; 3-phase) 60HP (480Vac; 3-phase) |
