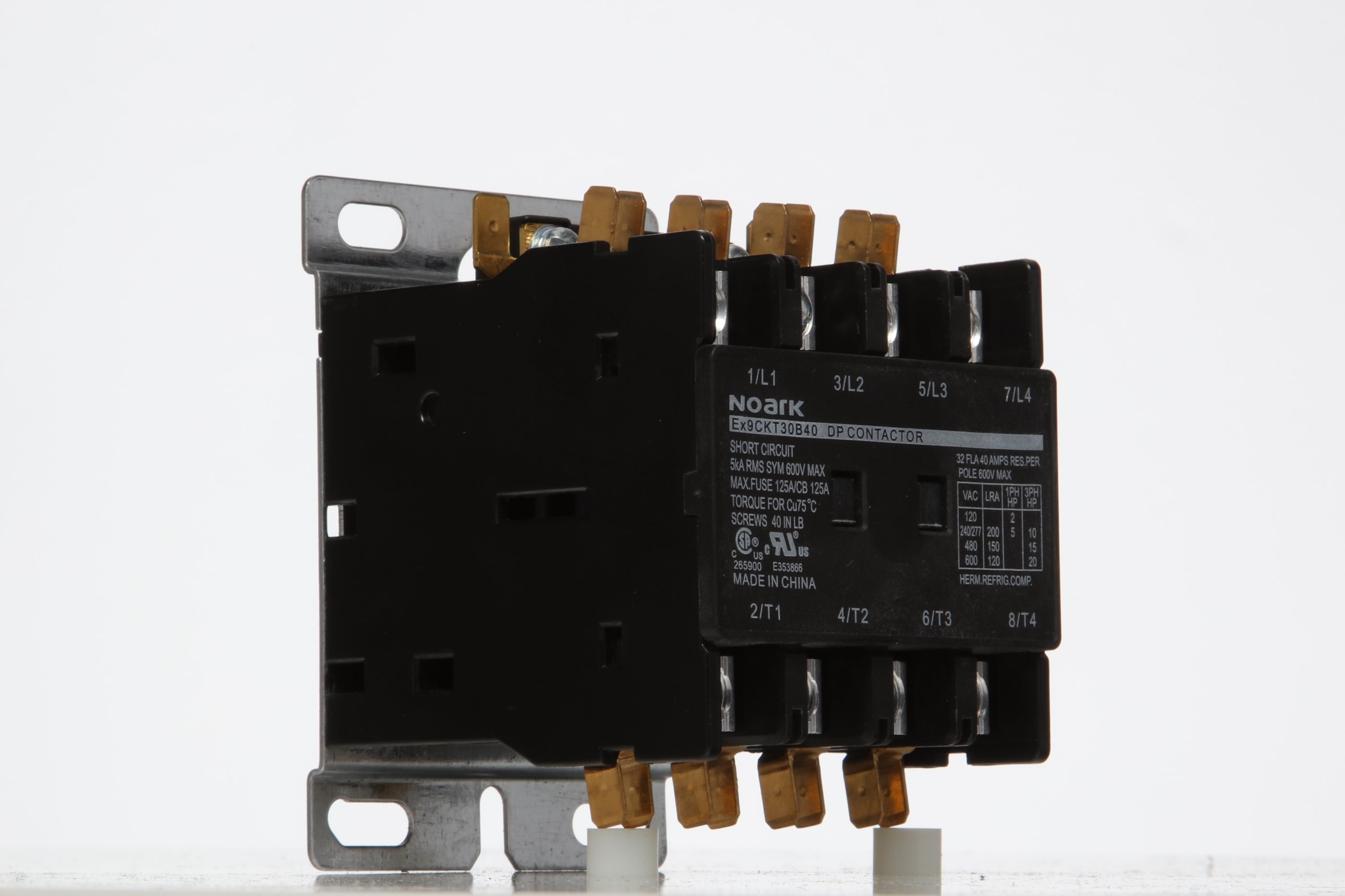

Ex9CKT30B40Y7-Definite Purpose Contactor, Ex9CKT, 30A,Lug, Dual,4NO, coil 600V 50/60Hz Coil
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Contactor |
| Product series / family name | Industrial controls > Contactors > `Definite purpose contactors |
| Sub-range name | Ex9CKT series |
| Functions | Definite-purpose (DP) contactor |
| Poles | 4-poles (4P; 4NO) |
| Connection type | Dual FASTON Quick Connect spade connectors (2 connectors per pole) |
| Cross-section | #14AWG...#8AWG / 2.5mm2...10mm2 conductors (Copper rigid cable) #14AWG...#8AWG / 2.5mm2...10mm2 conductors (Copper flexible stranded cable) |
| Dimensions | H75mm x W70mm x D78mm H2.95" x W2.76" x D3.07" |
| Order code / Manufacturer SKU | Ex9CKT30B40Y7 1314080 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1314080 |
| Compliant with standard(s) | UL 60947-4-1 UL 508 UL (file number E353866) IEC 60947-4-1 EN 60947-4-1 CSA C22.2 No.265900 CE compliant ARI-780 HVAC Insulation -- Class B 266°F (130°C) |
| Technical compatibility with | Recommended protection -- 50A M1N series circuit breaker or 80A class J/class L fuse |
| Short Description | Definite-purpose (DP) contactor - 1314080 - Ex9CKT - 30A - 600Vac (50/60Hz) - 4P (4NO) |
| Type | ``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = 50Hz/60Hz `Coil frequency = 50Hz `Coil frequency = 60Hz Option = special version (with Dual FASTON Quick Connect spade connector) |
| Rated current | ``25A < In ≤ 30 30A (FLA) 32A (at 240/277Vac; 480Vac; 600Vac) 40A (Resistive Load Amps; 600Vac) 200A (240/277Vac; Locked Rotor Amperes) 150A (480Vac; Locked Rotor Amperes) 120A (600Vac; Locked Rotor Amperes) 40A (Tungsten & Ballast rating) |
| Control Voltage (AC) | 600Vac (50/60Hz) |
| Power consumption | (inrush; 50Hz) 80.5 (inrush; 60Hz) 73 (sealed; 50Hz) 10.5 (sealed; 60Hz) 8.8 |
| Normally Open (NO) auxliary contacts | 0 |
| Normally Closed (NC) auxiliary contacts | 0 |
| Connection type (electrical) | Lug connection FASTON connector |
| Tightening torque | (main circuit) 4.5 (coil) 1.2 |
| Net weight | 580 |
| Cross-sells with | AXFC11 AXFC11Q AXFD11 AXFD22 M1H50T3L |
| Category code | Global_Cat_001003001 Electrical components Motor control and protection Magnetic contactors |
| Product title | Definite-purpose (DP) contactor - NOARK Ex9CKT series |
| Description generating formula | A |
| Description | Definite-purpose (DP) contactor - NOARK (Ex9CKT series) - 4-poles (4P; 4NO) - 30A (FLA) rated current - 600Vac (50/60Hz) coil - Lug connection with slot screw for line and load sides + Dual FASTON Quick Connect spade connectors (2 connectors per pole) - 20HP (600Vac; 3-phase) rated power - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - equivalent to 1314080 |
| Catalogue connector | NOARK - Ex9CKT series Ex9CKT30B40Y7 |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) |
| Rated power (HP) | ```20 20HP (600Vac; 3-phase) 15HP (480Vac; 3-phase) |
| Resistance (Ω) | 3480Ω (nominal coil resistance) |
| Benefits | Ex9CKT Series DP Contactors provide high performance with both flexibility and reliability. They are designed to match numerous applications including: - Air conditioning - Resistive heating - Refrigeration equipment - Motors - Welding - Pumps - Power supplies - Food service equipment - Compressors - Business machines - Lighting (25-50A) Available as: - 20-40A, 1- to 4-pole available now - Enclosed coil standard for all 1- to 4-pole frame sizes - Industry standard mounting plate provides easily accessible mounting holes - Connection terminal options, including screw or lug connections each with quick connect spades - Coil is Class B 266°F (130°C) insulation system with a wide range of voltages and 50/60 Hz ratings - Double E magnet assembly provides optimal performance with reduced power consumption - Base assembly is made from high arc-resistant polyester - 100,000 to 250,000 cycles by UL 508/UL60947-4-1 for air resistance heating application |
