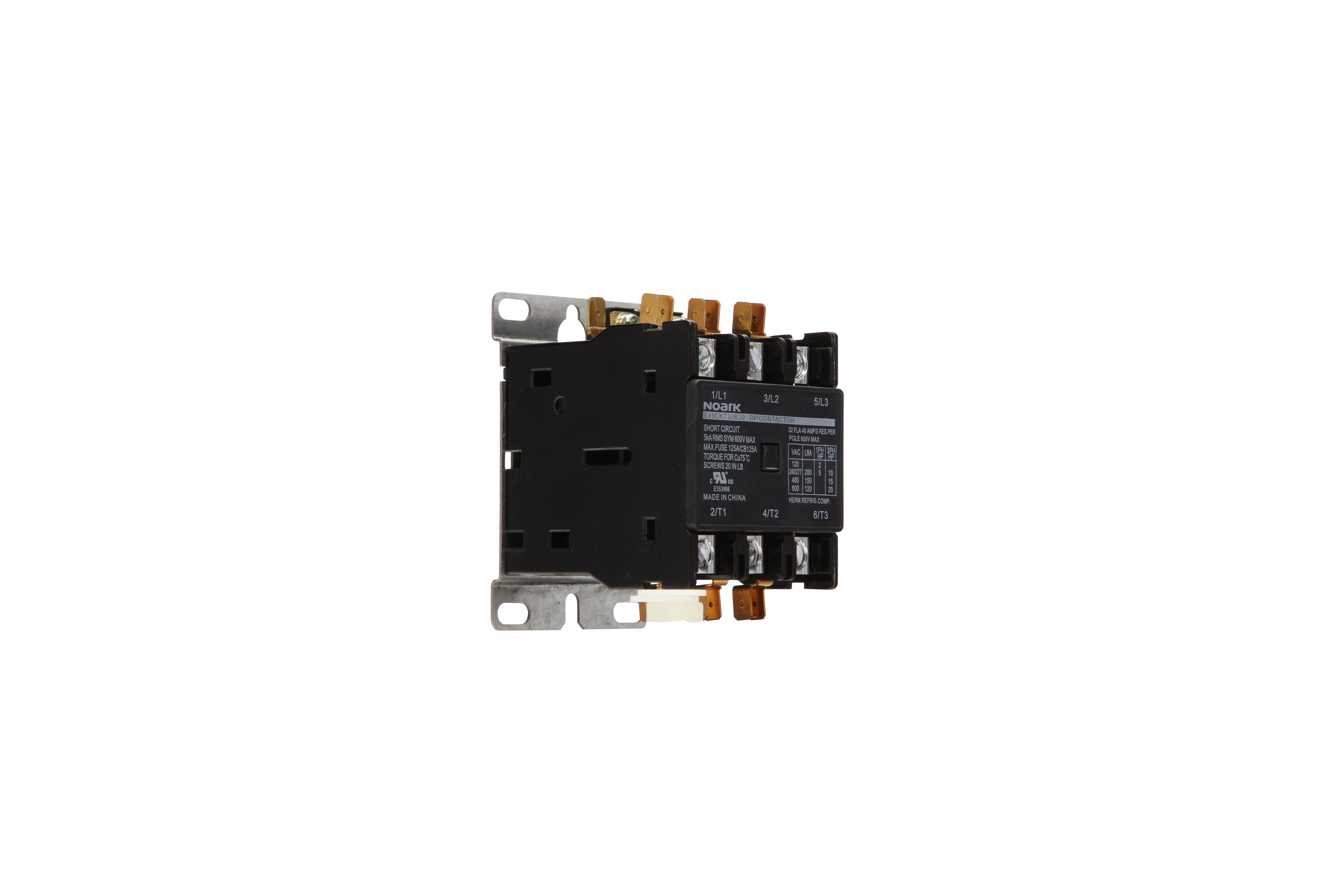

Ex9CKT40B30T7NQ
Primary brand NOARK Main function Contactor Product series / family name Industrial controls > Contactors > `Definite purpose contactors Sub-range name Ex9CKT series Functions Definite-purpose (DP) contactor Poles 3-poles (3P; 3NO)```3P...
$40.95 CAD
People are viewing this right now
Description
| Primary brand | NOARK |
| Main function | Contactor |
| Product series / family name | Industrial controls > Contactors > `Definite purpose contactors |
| Sub-range name | Ex9CKT series |
| Functions | Definite-purpose (DP) contactor |
| Poles | 3-poles (3P; 3NO) ```3P (3NO) |
| Connection type | Lug connection with slot screw for line and load sides Quad FASTON Quick Connect spade connectors (4 connectors per pole; coil only) |
| Cross-section | #12AWG...#8AWG / 4mm2...10mm2 conductors (Copper rigid cable) #14AWG...#12AWG / 2.5mm2...6mm2 conductors (Copper flexible stranded cable) |
| Dimensions | H92mm x W60.3mm x D73.9mm H3.62" x W2.37" x D2.91" |
| Order code / Manufacturer SKU | Ex9CKT40B30T7NQ 1314681 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1314681 |
| Compliant with standard(s) | UL 60947-4-1 UL 508 UL (file number E353866) IEC 60947-4-1 EN 60947-4-1 CSA C22.2 No.265900 CE compliant ARI-780 HVAC Insulation -- Class B 266°F (130°C) |
| Technical compatibility with | Recommended protection -- 70A M1N series circuit breaker or 100A class J/class L fuse |
| Short Description | Definite-purpose (DP) contactor - 1314681 - Ex9CKT - 40A - 480Vac (50/60Hz) - 3P (3NO) |
| Type | ``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = 50Hz/60Hz `Coil frequency = 50Hz `Coil frequency = 60Hz Option = special version (with Quad FASTON Quick Connect spade connectors) |
| Rated current | ``35A < In ≤ 40 40A (FLA) 40A (at 240/277Vac; 480Vac; 600Vac) 50A (Resistive Load Amps; 600Vac) 240A (240/277Vac; Locked Rotor Amperes) 200A (480Vac; Locked Rotor Amperes) 160A (600Vac; Locked Rotor Amperes) 40A (Ballast rating) 50A (Tungsten rating) |
| Control Voltage (AC) | 480 480Vac (50/60Hz) 408Vac max. pick-up voltage -- control voltage above which contactor is guaranteed to close 96Vac min. drop-out voltage -- control voltage below which contactor is guaranteed to open |
| Power consumption | (inrush; 50Hz) 60 (inrush; 60Hz) 53 (sealed; 50Hz) 8 (sealed; 60Hz) 6.5 |
| Normally Open (NO) auxliary contacts | 0 |
| Normally Closed (NC) auxiliary contacts | 0 |
| Connection type (electrical) | Lug connection FASTON connector |
| Tightening torque | (main circuit) 4.5 (coil) 1.2 |
| Net weight | 440 |
| Cross-sells with | AXFC11 AXFC11Q AXFD11 AXFD22 M1H70T3L |
| Category code | Global_Cat_001003001 Electrical components Motor control and protection Magnetic contactors |
| Product title | Definite-purpose (DP) contactor - NOARK Ex9CKT series |
| Description generating formula | A |
| Description | Definite-purpose (DP) contactor - NOARK (Ex9CKT series) - 3-poles (3P; 3NO) - 40A (FLA) rated current - 480Vac (50/60Hz) coil - Lug connection with slot screw for line and load sides + Quad FASTON Quick Connect spade connectors (4 connectors per pole; coil only) - 15HP (480Vac; 3-phase) rated power - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - equivalent to 1314681 |
| Catalogue connector | NOARK - Ex9CKT series Ex9CKT40B30T7NQ |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) |
| Rated power (HP) | ```15 15HP (480Vac; 3-phase) 3HP (120Vac; single-phase) 7.5HP / 7-1/2HP (240/277Vac; single-phase) 10HP (240/277Vac; 3-phase) |
| Resistance (Ω) | 2650Ω (nominal coil resistance) |
| Benefits | Ex9CKT Series DP Contactors provide high performance with both flexibility and reliability. They are designed to match numerous applications including: - Air conditioning - Resistive heating - Refrigeration equipment - Motors - Welding - Pumps - Power supplies - Food service equipment - Compressors - Business machines - Lighting (25-50A) Available as: - 20-40A, 1- to 4-pole available now - Enclosed coil standard for all 1- to 4-pole frame sizes - Industry standard mounting plate provides easily accessible mounting holes - Connection terminal options, including screw or lug connections each with quick connect spades - Coil is Class B 266°F (130°C) insulation system with a wide range of voltages and 50/60 Hz ratings - Double E magnet assembly provides optimal performance with reduced power consumption - Base assembly is made from high arc-resistant polyester - 100,000 to 250,000 cycles by UL 508/UL60947-4-1 for air resistance heating application |
