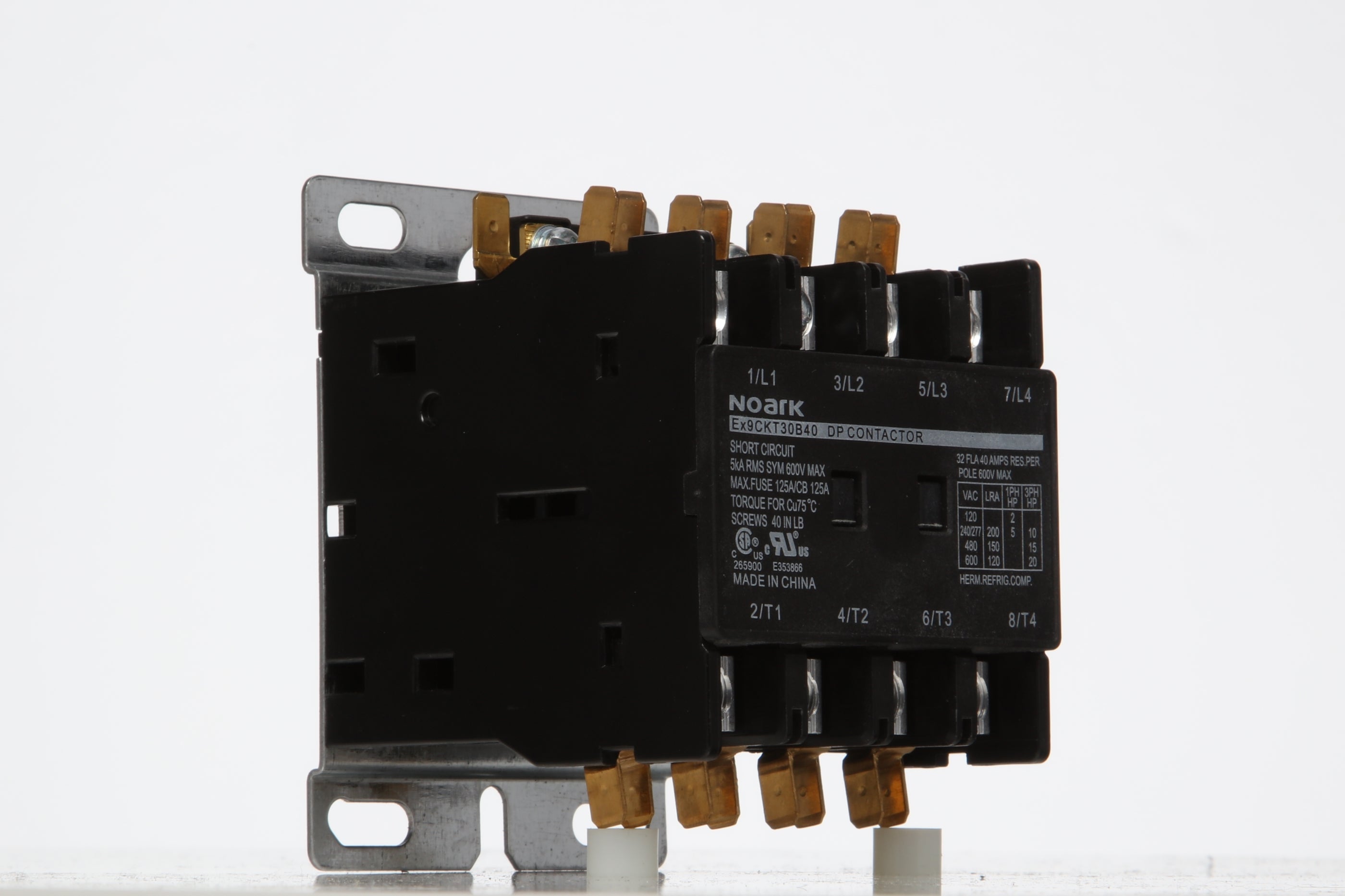

Ex9CKT40B40G7-Definite Purpose Contactor, Ex9CKT, 40A, Lug, Dual, 4NO, coil 120V,50/60Hz

Name: Ex9CKT40B40G7-Definite Purpose Contactor, Ex9CKT, 40A, Lug, Dual, 4NO, coil 120V,50/60Hz
Brand: NOARK
SKU: Ex9CKT40B40G7
Price: 95.96 CAD
Availability: InStock

In stock - 60 items available

SKU: Ex9CKT40B40G7

(0)

$95.96 CAD

Primary brand	NOARK
Main function	Contactor
Product series / family name	Industrial controls > Contactors > `Definite purpose contactors
Sub-range name	Ex9CKT series
Functions	Definite-purpose (DP) contactor
Poles	4-poles (4P; 4NO)
Connection type	Dual FASTON Quick Connect spade connectors (2 connectors per pole)
Cross-section	#14AWG...#8AWG / 2.5mm2...10mm2 conductors (Copper rigid cable) #14AWG...#8AWG / 2.5mm2...10mm2 conductors (Copper flexible stranded cable)
Dimensions	H75mm x W70mm x D78mm H2.95" x W2.76" x D3.07"
Order code / Manufacturer SKU	Ex9CKT40B40G7 1314367
Manufacturer product status	Commercialized
Equivalent to	1314367
Compliant with standard(s)	UL 60947-4-1 UL 508 UL (file number E353866) IEC 60947-4-1 EN 60947-4-1 CSA C22.2 No.265900 CE compliant ARI-780 HVAC Insulation -- Class B 266°F (130°C)
Technical compatibility with	Recommended protection -- 70A M1N series circuit breaker or 100A class J/class L fuse
Short Description	Definite-purpose (DP) contactor - 1314367 - Ex9CKT - 40A - 120Vac (50/60Hz) - 4P (4NO)
Type	``Starting type = Non-Reversing ``Starting type = FVNR ``Starting type = DOL `Coil frequency = 50Hz/60Hz `Coil frequency = 50Hz `Coil frequency = 60Hz Option = special version (with Dual FASTON Quick Connect spade connector)
Rated current	``35A < In ≤ 40 40A (FLA) 40A (at 240/277Vac; 480Vac; 600Vac) 50A (Resistive Load Amps; 600Vac) 240A (240/277Vac; Locked Rotor Amperes) 200A (480Vac; Locked Rotor Amperes) 160A (600Vac; Locked Rotor Amperes) 40A (Ballast rating) 50A (Tungsten rating)
Control Voltage (AC)	120Vac (50/60Hz)
Power consumption	(inrush; 50Hz) 80.5 (inrush; 60Hz) 73 (sealed; 50Hz) 10.5 (sealed; 60Hz) 8.8
Normally Open (NO) auxliary contacts	0
Normally Closed (NC) auxiliary contacts	0
Connection type (electrical)	Lug connection FASTON connector
Tightening torque	(main circuit) 4.5 (coil) 1.2
Net weight	580
Cross-sells with	AXFC11 AXFC11Q AXFD11 AXFD22 M1H70T3L
Category code	Global_Cat_001003001 Electrical components Motor control and protection Magnetic contactors
Product title	Definite-purpose (DP) contactor - NOARK Ex9CKT series
Description generating formula	A
Description	Definite-purpose (DP) contactor - NOARK (Ex9CKT series) - 4-poles (4P; 4NO) - 40A (FLA) rated current - 120Vac (50/60Hz) coil - Lug connection with slot screw for line and load sides + Dual FASTON Quick Connect spade connectors (2 connectors per pole) - 20HP (600Vac; 3-phase) rated power - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - equivalent to 1314367
Catalogue connector	NOARK - Ex9CKT series Ex9CKT40B40G7
Application type	Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.)
Rated power (HP)	```20 20HP (600Vac; 3-phase)
Resistance (Ω)	152.5Ω (nominal coil resistance)
Benefits	Ex9CKT Series DP Contactors provide high performance with both flexibility and reliability. They are designed to match numerous applications including: - Air conditioning - Resistive heating - Refrigeration equipment - Motors - Welding - Pumps - Power supplies - Food service equipment - Compressors - Business machines - Lighting (25-50A) Available as: - 20-40A, 1- to 4-pole available now - Enclosed coil standard for all 1- to 4-pole frame sizes - Industry standard mounting plate provides easily accessible mounting holes - Connection terminal options, including screw or lug connections each with quick connect spades - Coil is Class B 266°F (130°C) insulation system with a wide range of voltages and 50/60 Hz ratings - Double E magnet assembly provides optimal performance with reduced power consumption - Base assembly is made from high arc-resistant polyester - 100,000 to 250,000 cycles by UL 508/UL60947-4-1 for air resistance heating application
