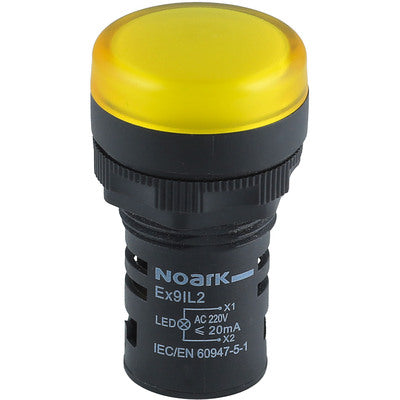

Ex9IL2N5-Indicator Lights, Ex9IL, Curved Lens, Capacitance Type, Yellow, 110/220 Vac
Regular price
$10.94 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Pilot light |
| Product series / family name | Industrial controls > Pilot devices > `Pilot lights |
| Sub-range name | Ex9IL series |
| Functions | High-brightness compact pilot indicator light |
| Design | capacitance / neon type full-voltage input |
| Dimensions (mm) | ``D22mm |
| Dimensions | H52mm x W30.5mm x D30.5mm H2.05" x W1.2" x D1.2" |
| Order code / Manufacturer SKU | Ex9IL2N5 1200733 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1200733 |
| Compliant with standard(s) | UL Listed (File Number E353866) CSA IEC/EN 60947 VDE 0660 CE compliant RoHS compliant |
| Electrical durability | (min) 30 000 |
| Short Description | High-brightness indicator light (neon) - Ex9IL - 1200733 - Round Curve - Yellow - 110/120Vac LED |
| Type | ``Illumination = Neon lamp `Material = thermoplastic body ``Input = full voltage Option = Standard (No options) |
| Supply voltage (AC) | 110Vac/120Vac 110 120 |
| Degree of protection | IP65 |
| Net weight | 20 |
| Category code | Global_Cat_002001002001 Automation components Control components Control & signalling Push-buttons and pilot lights |
| Product title | High-brightness compact pilot indicator light - NOARK Ex9IL series |
| Description generating formula | A |
| Description | High-brightness compact pilot indicator light with capacitance / neon type - full-voltage input - NOARK (Ex9IL series) - Yellow - 22mm (7/8") round curved / domed - Plastic body and cap - Supply voltage 110Vac/120Vac - IP65 - equivalent to 1200733 |
| Catalogue connector | NOARK - Ex9IL series Ex9IL2N5 |
| Light Color | Yellow Yellow |
| Current consumption | 20mA max. |
| Brightness | 60cd/m2 |
| Diameter | 22.5mm mounting hole diameter |
| Shape | 22mm (7/8") round curved / domed `Light = round `Light = dome `Light = extended / protruding / raised |
| Material | Plastic body and cap |
| Benefits | Features - Metal construction for superior durability and visual appeal - UL listed and IP 40* (front) available for protection against dust and water - Low behind the panel depth - Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products - Field convertible from maintained to momentary (available on maintained pushbuttons only) - Modular construction makes assembly fast and simplifies stocking of components and complete devices |
