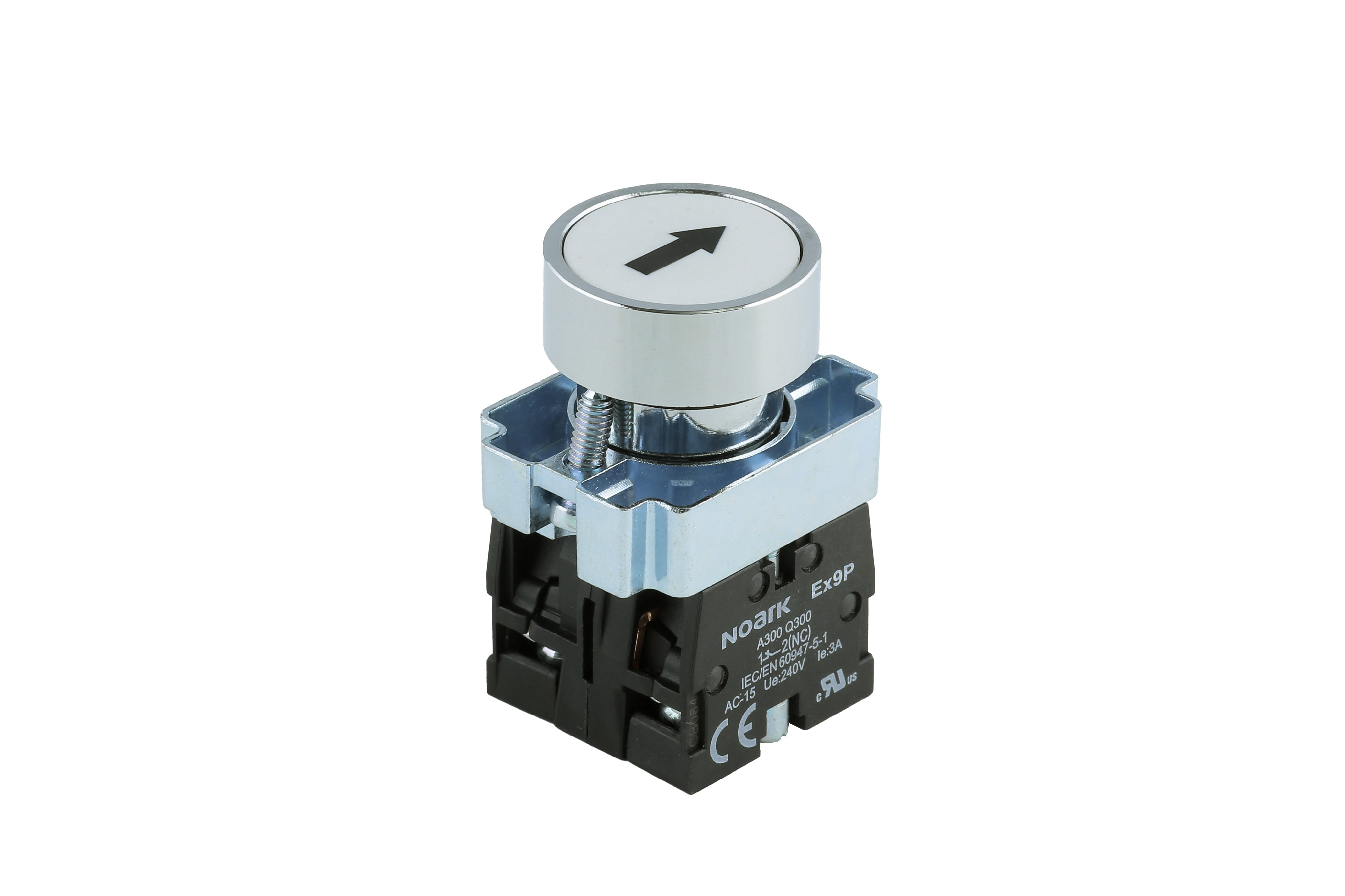

Ex9PBA3311-Pushbutton Non-Illuminated, Ex9PB, Momentary Flush, Green+Symbol, 1NO
Regular price
$10.94 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Push-button |
| Product series / family name | Industrial controls > Pilot devices > ``Push-buttons (non-illuminated) |
| Sub-range name | Ex9PB series |
| Functions | Pushbutton/push-button/PB |
| Design | symbol |
| Rated operating voltage (Ue) | 125 240 415 |
| Rated insulation voltage (Ui) | 415 |
| Dimensions (mm) | ``D22mm |
| Dimensions | H56mm x W40mm x D30mm H2.20" x W1.57" x D1.18" |
| Order code / Manufacturer SKU | Ex9PBA3311 1200030 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1200030 |
| Compliant with standard(s) | UL Listed (File Number E353865) CSA IEC/EN 60947 VDE 0660 CE compliant RoHS compliant |
| Short Description | Push-button - Ex9PB - 1200030 - Momentary - Round Flat - w/symbol - Green - 1NO |
| Type | `Material = metal body Option = special version (with "I" marking) |
| Rated current | 3mA (AC-15; at 240Vac) 1.9mA (AC-15; at 415Vac) 0.55mA (DC-13; at 125Vac) 0.27mA (DC-13; at 240Vac) 10A (Ith) |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 0 |
| Contacts type | 1NO contact `1NO SPST-NO (Single Pole Single Throw - Normally Open) |
| Color | Green button Chrome bezel Green |
| Degree of protection | IP65 |
| Net weight | 62 |
| Cross-sells with | Ex9PBE101 Ex9PBE102 |
| Category code | Global_Cat_002001002001 Automation components Control components Control & signalling Push-buttons and pilot lights |
| Product title | Pushbutton/push-button/PB - NOARK Ex9PB series |
| Description generating formula | A |
| Description | Pushbutton/push-button/PB with symbol - NOARK (Ex9PB series) - Green button - Round bezel / 22mm (7/8") round flat / flush - Spring-return (impulse/momentary) - 1NO contact - Metallic alloy body / Chrome-plated bezel - IP65 - White "I" label - equivalent to 1200030 |
| Catalogue connector | NOARK - Ex9PB series Ex9PBA3311 |
| Operating mode | Spring-return (impulse/momentary) ``Impulse / momentary |
| Diameter | 22.5mm mounting hole diameter |
| Shape | Round bezel 22mm (7/8") round flat / flush ``Bezel = round `Button = round `Button = flush / flat ``Head = single |
| Marking | White "I" |
| Material | Metallic alloy body Chrome-plated bezel |
| Benefits | Features - Metal construction for superior durability and visual appeal - UL recognized component and labeled IP 40 (front) for protection against dust and water - Low behind the panel depth - Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products - Field convertible from maintained to momentary (available on maintained pushbuttons only) - More than one million mechanical operations on momentary and half million on maintained pushbuttons |
