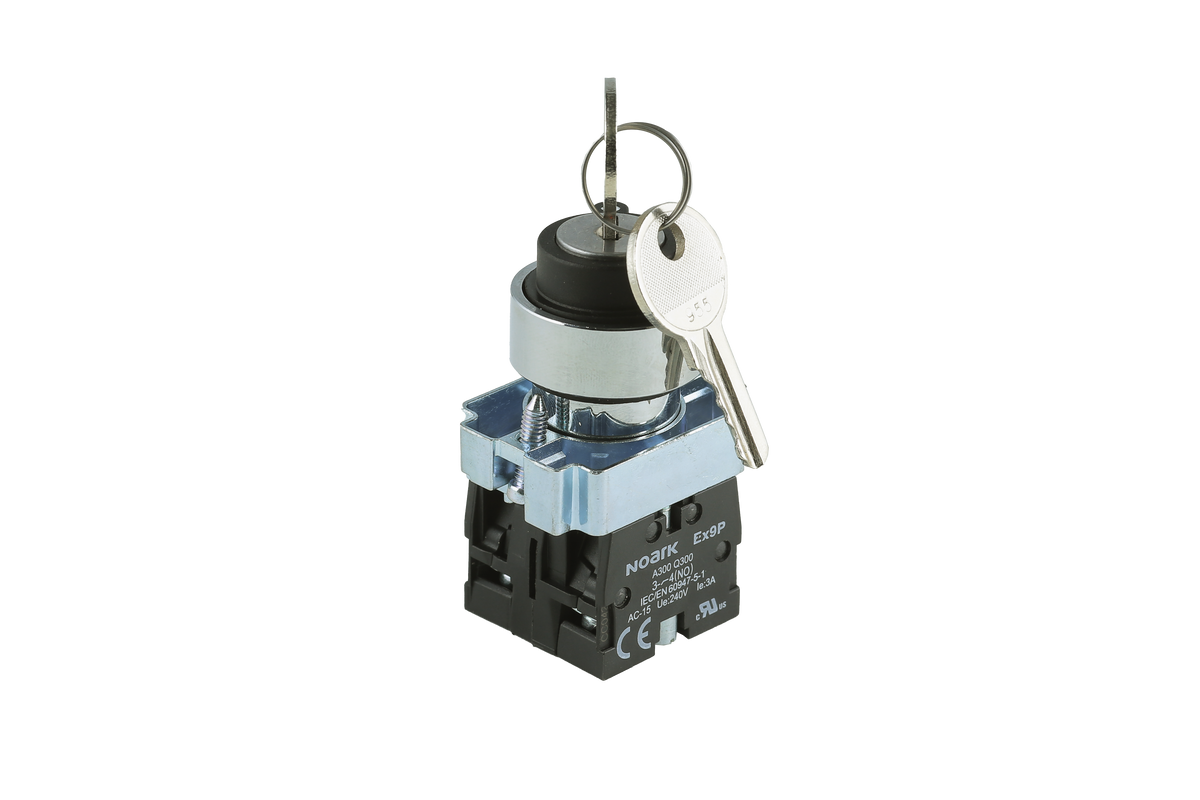

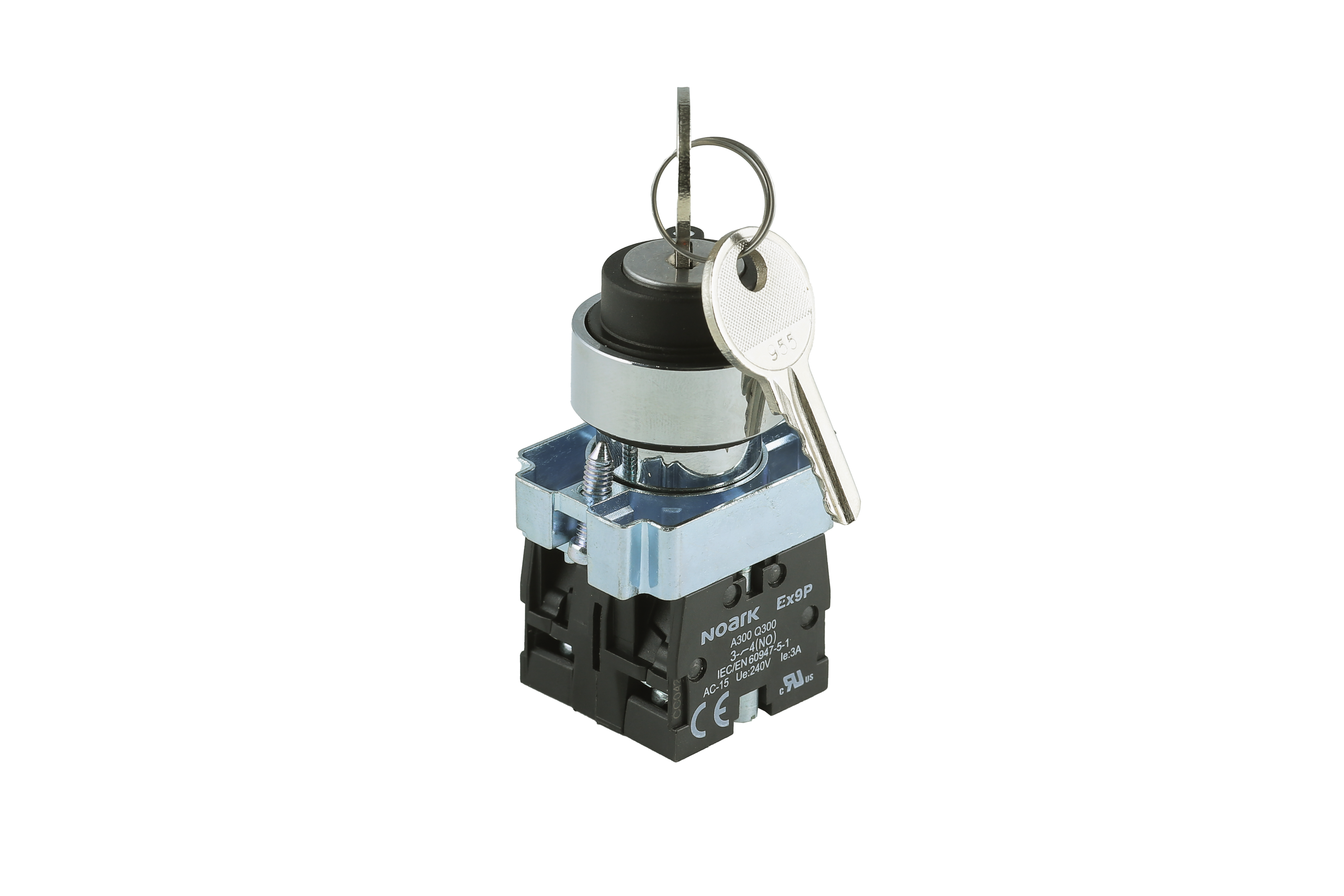

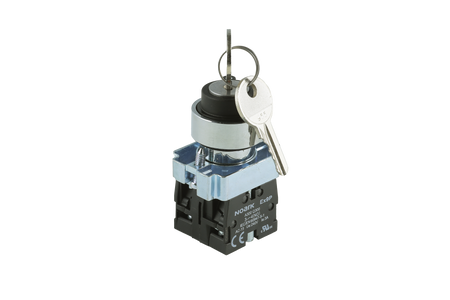

Ex9PBG45-Pushbutton Non-Illuminated, Ex9PB, Selector Switch - Key, 2-Position - Reset - Left Key, 1NO+1NC
Regular price
$14.30 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Key switch |
| Product series / family name | Industrial controls > Pilot devices > `Selector switches |
| Sub-range name | Ex9PB series |
| Functions | Key selector switch / SSw. |
| Rated operating voltage (Ue) | 125 240 415 |
| Rated insulation voltage (Ui) | 415 |
| Dimensions (mm) | ``D22mm |
| Dimensions | H63mm x W40mm x D30mm H2.48" x W1.57" x D1.18" |
| Order code / Manufacturer SKU | Ex9PBG45 1200537 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1200537 |
| Compliant with standard(s) | UL Listed (File Number E353865) CSA IEC/EN 60947 VDE 0660 CE compliant RoHS compliant |
| Short Description | Key switch - Ex9PB - 1200537 - Black - 2-positions - Reset - 1NO+1NC |
| Type | `Material = metal body Option = Standard (No options) |
| Rated current | 3mA (AC-15; at 240Vac) 1.9mA (AC-15; at 415Vac) 0.55mA (DC-13; at 125Vac) 0.27mA (DC-13; at 240Vac) 10A (Ith) |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC contacts `1NO SPST-NO (Single Pole Single Throw - Normally Open) `1NC SPST-NC (Single Pole Single Throw - Normally Closed) |
| Color | Black Chrome bezel Black |
| Degree of protection | IP40 |
| Net weight | 110 |
| Cross-sells with | Ex9PBE101 Ex9PBE102 |
| Category code | Global_Cat_002001002002 Automation components Control components Control & signalling Selector switches |
| Product title | Key selector switch / SSw. - NOARK Ex9PB series |
| Description generating formula | A |
| Description | Key selector switch / SSw. - NOARK (Ex9PB series) - Black - Spring-return from right position to left - 1NO+1NC contacts - Free key withdrawal in left position only - Metallic alloy body / Chrome-plated bezel - IP40 - equivalent to 1200537 |
| Catalogue connector | NOARK - Ex9PB series Ex9PBG45 |
| Operating mode | Spring-return from right position to left ``Impulse / momentary Free key withdrawal in left position only Free key withdrawal in left position 2-positions `2-positions |
| Diameter | 22.5mm mounting hole diameter |
| Material | Metallic alloy body Chrome-plated bezel |
| Benefits | Features - Metal construction for superior durability and visual appeal - UL recognized component and labeled IP 40 (front) for protection against dust and water - Low behind the panel depth - Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products - Field convertible from maintained to momentary (available on maintained pushbuttons only) - More than one million mechanical operations on momentary and half million on maintained pushbuttons |
