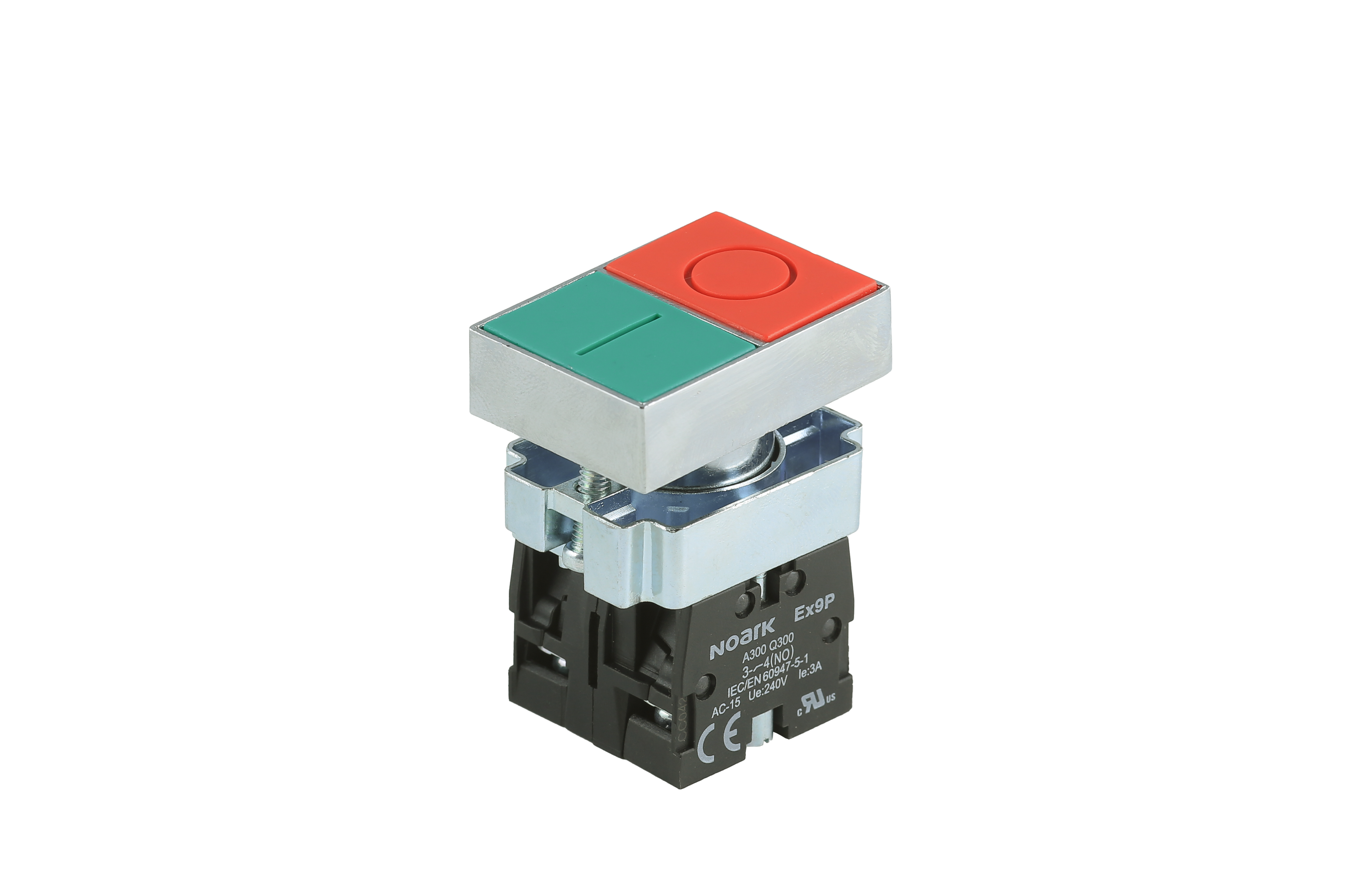

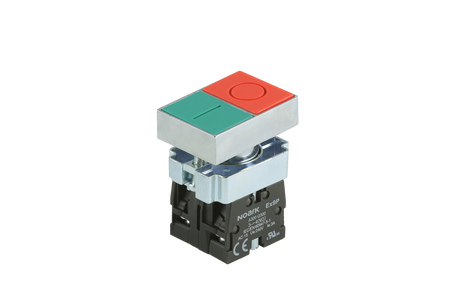

Ex9PBL8325-Pushbutton Non-Illuminated, Ex9PB, Momentary Double Head Flush, Red+Green, 1NO+1NC
Regular price
$31.90 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Push-button |
| Product series / family name | Industrial controls > Pilot devices > ``Push-buttons (non-illuminated) |
| Sub-range name | Ex9PB series |
| Functions | Double-headed pushbutton/push-button/PB |
| Rated operating voltage (Ue) | 125 240 415 |
| Rated insulation voltage (Ui) | 415 |
| Dimensions (mm) | ``D22mm |
| Dimensions | W42mm x D30mm bezel H55mm x W42mm x D30mm H2.17" x W1.65" x D1.18" |
| Order code / Manufacturer SKU | Ex9PBL8325 1200438 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1200438 |
| Compliant with standard(s) | UL Listed (File Number E353865) CSA IEC/EN 60947 VDE 0660 CE compliant RoHS compliant |
| Short Description | Double-headed push-button - Ex9PB - 1200438 - Momentary - Rectangular flush - Red/Green - 1NO+1NC |
| Type | `Material = metal body Option = Standard (No options) |
| Rated current | 3mA (AC-15; at 240Vac) 1.9mA (AC-15; at 415Vac) 0.55mA (DC-13; at 125Vac) 0.27mA (DC-13; at 240Vac) 10A (Ith) |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC contacts `1NO SPST-NO (Single Pole Single Throw - Normally Open) `1NC SPST-NC (Single Pole Single Throw - Normally Closed) |
| Color | Red / Green button Chrome bezel Red Green |
| Degree of protection | IP40 |
| Net weight | 100 |
| Cross-sells with | Ex9PBE101 Ex9PBE102 |
| Category code | Global_Cat_002001002001 Automation components Control components Control & signalling Push-buttons and pilot lights |
| Product title | Double-headed pushbutton/push-button/PB - NOARK Ex9PB series |
| Description generating formula | A |
| Description | Double-headed pushbutton/push-button/PB - NOARK (Ex9PB series) - Red / Green button - Rectangular bezel / 42x30mm rectangular flush - Spring-return (impulse/momentary) - 1NO+1NC contacts - Metallic alloy body / Chrome-plated bezel - IP40 - equivalent to 1200438 |
| Catalogue connector | NOARK - Ex9PB series Ex9PBL8325 |
| Operating mode | Spring-return (impulse/momentary) ``Impulse / momentary |
| Diameter | 22.5mm mounting hole diameter |
| Shape | Rectangular bezel 42x30mm rectangular flush ``Bezel = rectangular `Button = rectangular `Button = flush / flat ``Head = double |
| Material | Metallic alloy body Chrome-plated bezel |
| Benefits | Features - Metal construction for superior durability and visual appeal - UL recognized component and labeled IP 40 (front) for protection against dust and water - Low behind the panel depth - Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products - Field convertible from maintained to momentary (available on maintained pushbuttons only) - More than one million mechanical operations on momentary and half million on maintained pushbuttons |
