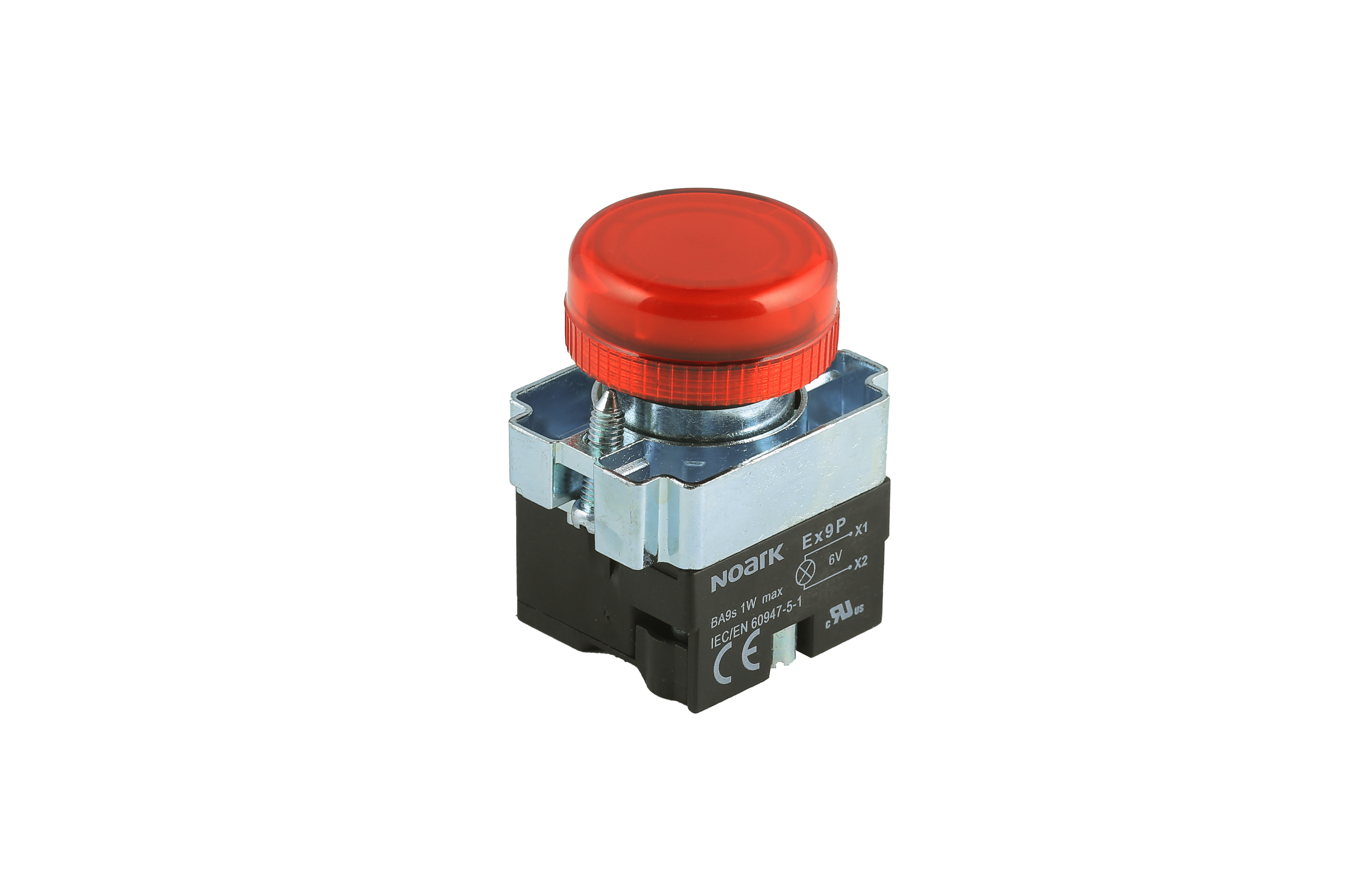

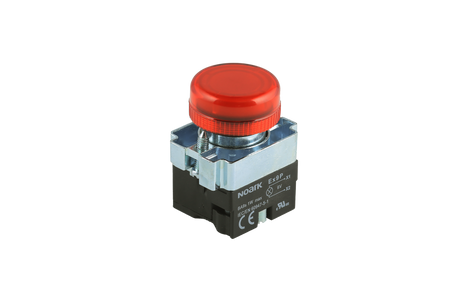

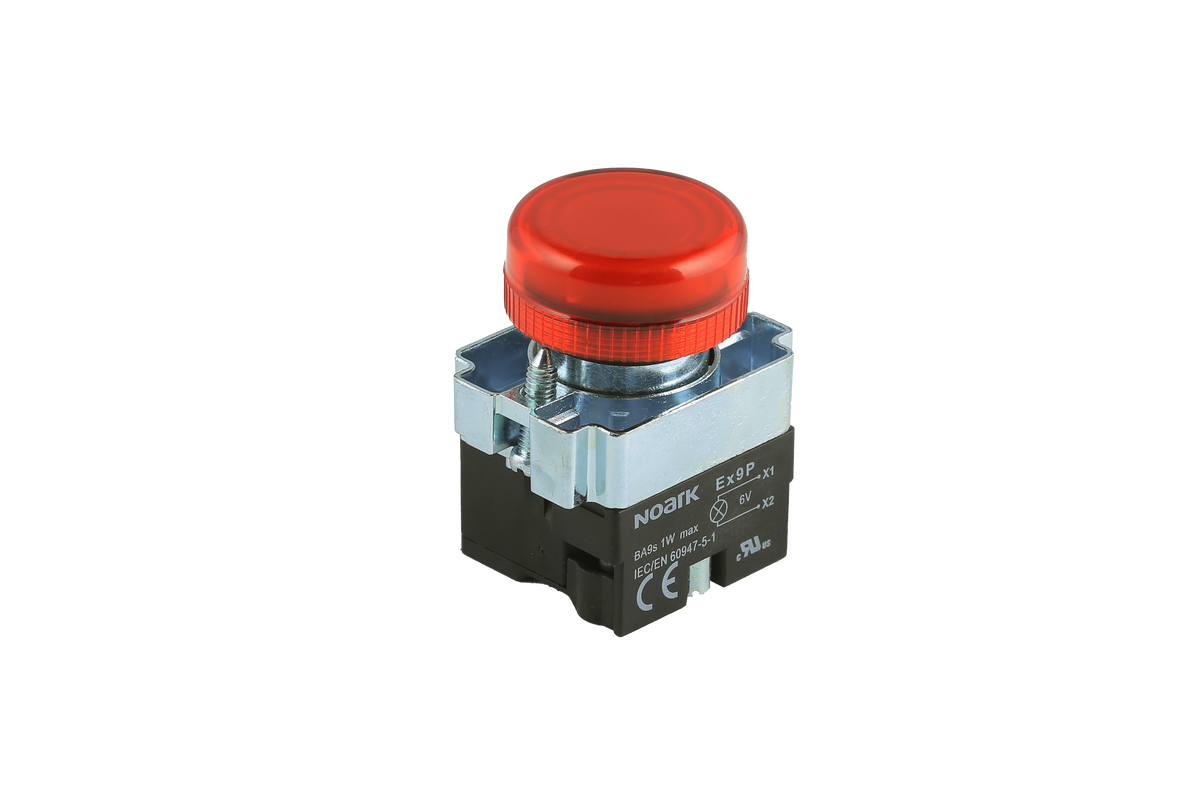

Ex9PBV61C-Pushbutton Illuminated, Ex9PB, Indicator Lights, White 1NO+1NC, 12Vac/dc
Regular price
$17.60 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Pilot light |
| Product series / family name | Industrial controls > Pilot devices > `Pilot lights |
| Sub-range name | Ex9PB series |
| Functions | Pilot indicator light |
| Design | LED full-voltage input |
| Rated insulation voltage (Ui) | 415 |
| Dimensions (mm) | ``D22mm |
| Dimensions | H56mm x W40mm x D30mm H2.2" x W1.57" x D1.18" |
| Order code / Manufacturer SKU | Ex9PBV61C 1200468 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1200468 |
| Compliant with standard(s) | UL Listed (File Number E353865) CSA IEC/EN 60947 VDE 0660 CE compliant RoHS compliant |
| Short Description | Indicator light - Ex9PB - 1200468 - Round Flat - 12Vac/dc LED |
| Type | ``Illumination = LED `Material = metal body ``Input = full voltage Option = Standard (No options) |
| Rated current | 3mA (AC-15; at 240Vac) 1.9mA (AC-15; at 415Vac) 0.55mA (DC-13; at 125Vac) 0.27mA (DC-13; at 240Vac) 10A (Ith) |
| Supply voltage (AC) | 12Vac `12 |
| Supply voltage (DC) | 12Vdc ``12 |
| Degree of protection | IP40 |
| Net weight | 680 |
| Cross-sells with | Ex9PBV/1 |
| Category code | Global_Cat_002001002001 Automation components Control components Control & signalling Push-buttons and pilot lights |
| Product title | Pilot indicator light - NOARK Ex9PB series |
| Description generating formula | A |
| Description | Pilot indicator light with LED - full-voltage input - NOARK (Ex9PB series) - White - 22mm (7/8") round flat - Metallic alloy body / Plastic cap - Supply voltage 12Vac / 12Vdc - IP40 - equivalent to 1200468 |
| Catalogue connector | NOARK - Ex9PB series Ex9PBV61C |
| Light Color | White White |
| Current consumption | 20mA max. |
| Diameter | 22.5mm mounting hole diameter |
| Shape | 22mm (7/8") round flat `Light = round `Light = flat `Light = extended / protruding / raised |
| Material | Metallic alloy body Plastic cap |
| Benefits | Features - Metal construction for superior durability and visual appeal - UL recognized component and labeled IP 40 (front) for protection against dust and water - Low behind the panel depth - Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products - Field convertible from maintained to momentary (available on maintained pushbuttons only) - More than one million mechanical operations on momentary and half million on maintained pushbuttons |
