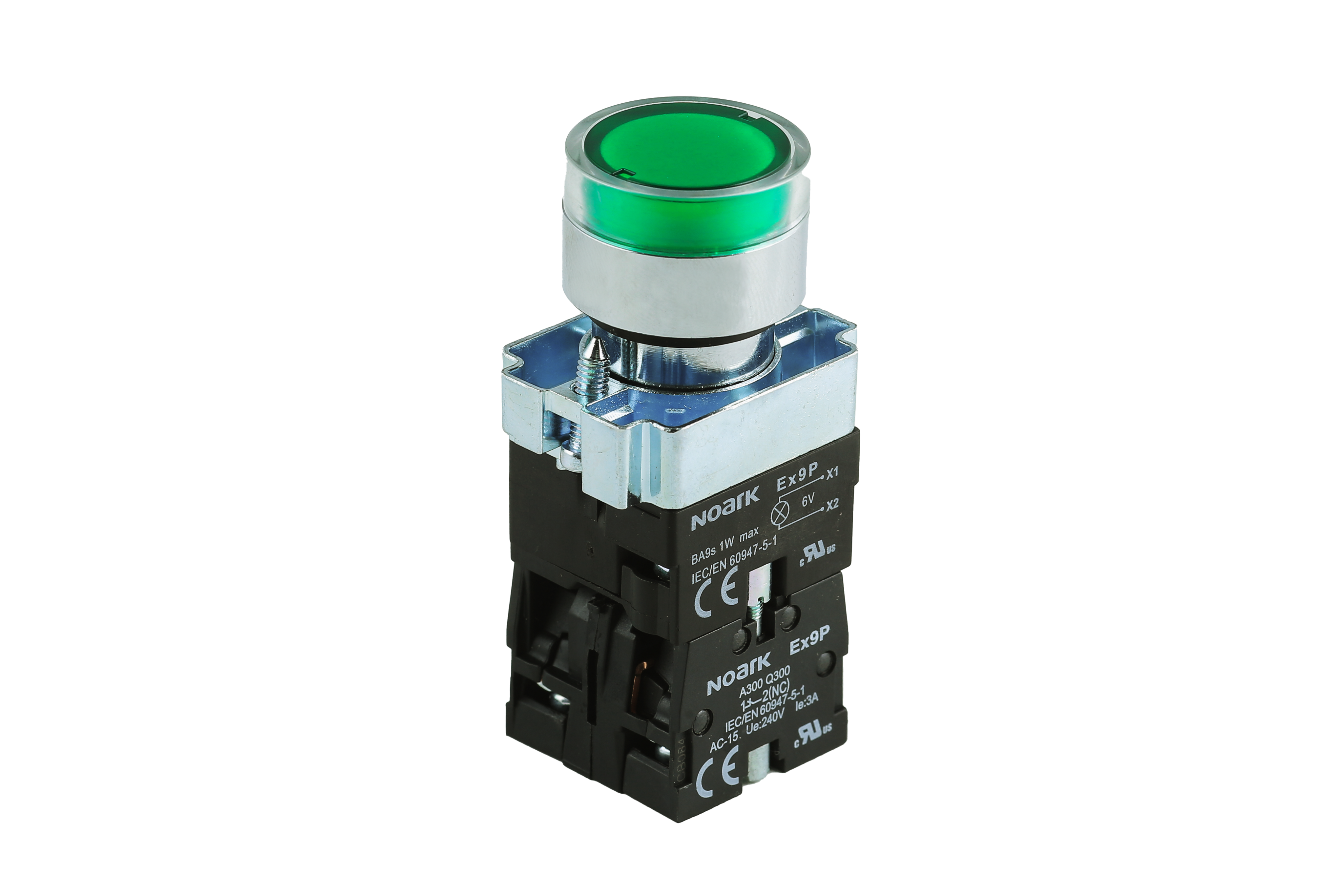

Ex9PBW3663A
Primary brand NOARK Main function Push-button (Illuminated) Product series / family name Industrial controls > Pilot devices > ``Push-buttons (illuminated) Sub-range name Ex9PB series Functions Illuminated pushbutton/push-button/PB Design LEDguardfull-voltage input Rated...
$17.60 CAD
sold in last hours
People are viewing this right now
Description
| Primary brand | NOARK |
| Main function | Push-button (Illuminated) |
| Product series / family name | Industrial controls > Pilot devices > ``Push-buttons (illuminated) |
| Sub-range name | Ex9PB series |
| Functions | Illuminated pushbutton/push-button/PB |
| Design | LED guard full-voltage input |
| Rated insulation voltage (Ui) | 415 |
| Dimensions (mm) | ``D22mm |
| Dimensions | H80mm x W40mm x D30mm H3.27" x W1.57" x D1.18" |
| Order code / Manufacturer SKU | Ex9PBW3663A 1200237 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1200237 |
| Compliant with standard(s) | UL Listed (File Number E353865) CSA IEC/EN 60947 VDE 0660 CE compliant RoHS compliant |
| Short Description | Illuminated push-button - Ex9PB - 1200237 - Momentary - Round Flat - w/guard - Blue - 2NO - 6Vac/dc LED |
| Type | ``Illumination = LED `Material = metal body ``Input = full voltage Option = Standard (No options) |
| Rated current | 3mA (AC-15; at 240Vac) 1.9mA (AC-15; at 415Vac) 0.55mA (DC-13; at 125Vac) 0.27mA (DC-13; at 240Vac) 10A (Ith) |
| Supply voltage (AC) | 6Vac ``6 |
| Supply voltage (DC) | 6Vdc ```6 |
| Normally Open (NO) auxliary contacts | 2 |
| Normally Closed (NC) auxiliary contacts | 0 |
| Contacts type | 2NO contacts `2NO DPST-NO (Double Pole Single Throw - Normally Open) |
| Color | Chrome bezel |
| Degree of protection | IP40 |
| Net weight | 98 |
| Cross-sells with | Ex9PBE101 Ex9PBE102 |
| Category code | Global_Cat_002001002001 Automation components Control components Control & signalling Push-buttons and pilot lights |
| Product title | Illuminated pushbutton/push-button/PB - NOARK Ex9PB series |
| Description generating formula | A |
| Description | Illuminated pushbutton/push-button/PB with LED + guard - full-voltage input - NOARK (Ex9PB series) - Blue - Round bezel / 22mm (7/8") round flat / flush - Spring-return (impulse/momentary) - 2NO contacts - Metallic alloy body / Chrome-plated bezel - Supply voltage 6Vac / 6Vdc - IP40 - equivalent to 1200237 |
| Catalogue connector | NOARK - Ex9PB series Ex9PBW3663A |
| Light Color | Blue Blue |
| Current consumption | 20mA max. |
| Operating mode | Spring-return (impulse/momentary) ``Impulse / momentary |
| Diameter | 22.5mm mounting hole diameter |
| Shape | Round bezel 22mm (7/8") round flat / flush ``Bezel = round `Button = round `Button = flush / flat ``Head = single |
| Material | Metallic alloy body Chrome-plated bezel |
| Benefits | Features - Metal construction for superior durability and visual appeal - UL recognized component and labeled IP 40 (front) for protection against dust and water - Low behind the panel depth - Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products - Field convertible from maintained to momentary (available on maintained pushbuttons only) - More than one million mechanical operations on momentary and half million on maintained pushbuttons |
