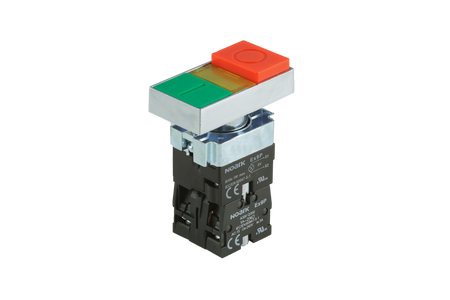

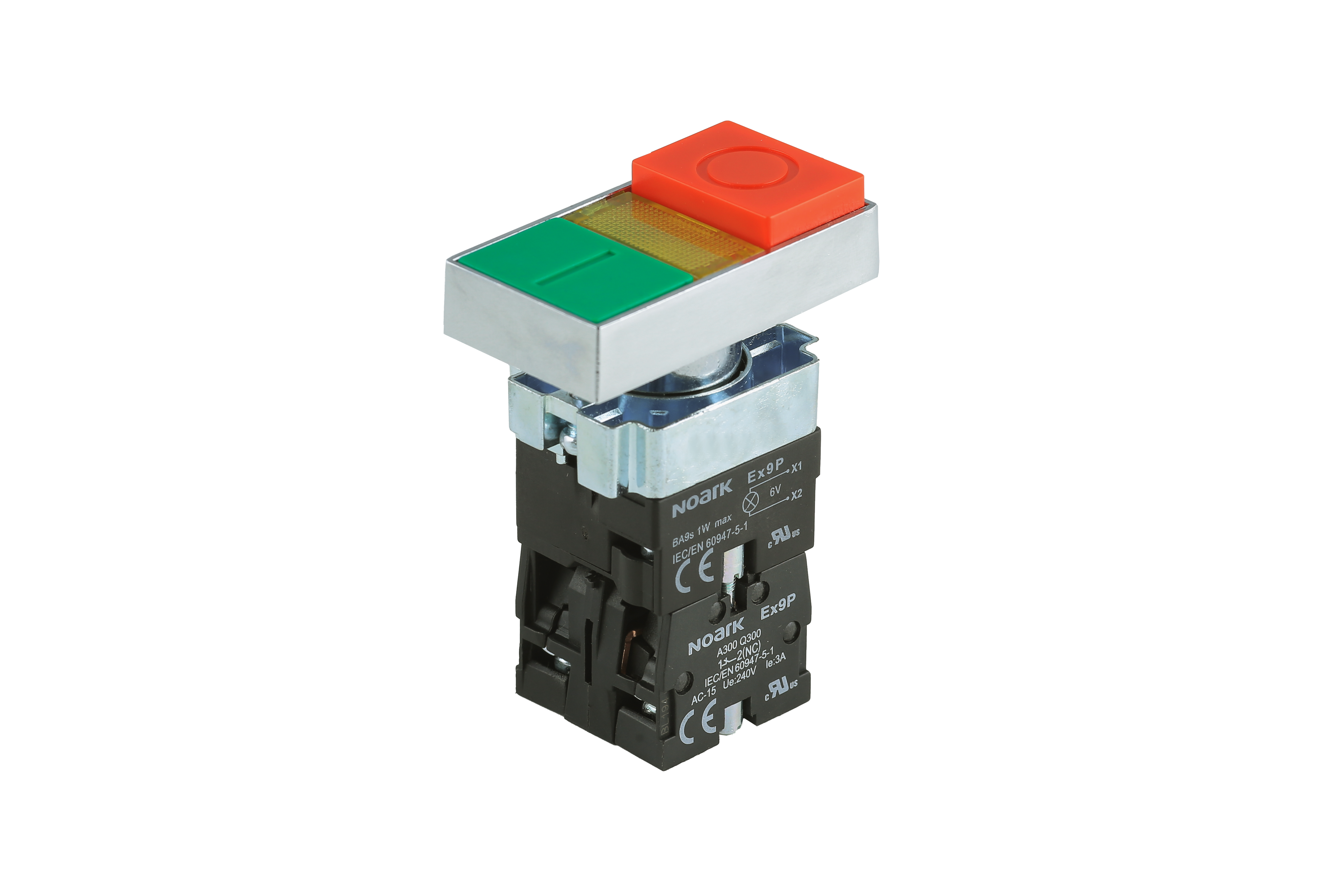

Ex9PBW8465D-Pushbutton Illuminated, Ex9PB, Momentary Double Head Extended, Red+Green 1NO+1NC, 24Vac/dc
Regular price
$17.60 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Push-button (Illuminated) |
| Product series / family name | Industrial controls > Pilot devices > ``Push-buttons (illuminated) |
| Sub-range name | Ex9PB series |
| Functions | Illuminated double-headed pushbutton/push-button/PB |
| Design | LED 1 flush green button 1 projecting red button full-voltage input |
| Rated insulation voltage (Ui) | 415 |
| Dimensions (mm) | ``D22mm |
| Dimensions | W30mm x D55mm bezel H98mm x W55mm X D30mm H3.86" x W2.17" x D1.18" |
| Order code / Manufacturer SKU | Ex9PBW8465D 1200443 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1200443 |
| Compliant with standard(s) | UL Listed (File Number E353865) CSA IEC/EN 60947 VDE 0660 CE compliant RoHS compliant |
| Short Description | Illuminated double-headed push-button - Ex9PB - 1200443 - Momentary - Rectangular extended - Red/Green - 1NO+1NC - 24Vac/dc LED |
| Type | ``Illumination = LED `Material = metal body ``Input = full voltage Option = Standard (No options) |
| Rated current | 3mA (AC-15; at 240Vac) 1.9mA (AC-15; at 415Vac) 0.55mA (DC-13; at 125Vac) 0.27mA (DC-13; at 240Vac) 10A (Ith) |
| Supply voltage (AC) | 24Vac `24 |
| Supply voltage (DC) | 24Vdc ``24 |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC contacts `1NO SPST-NO (Single Pole Single Throw - Normally Open) `1NC SPST-NC (Single Pole Single Throw - Normally Closed) |
| Color | Chrome bezel |
| Degree of protection | IP40 |
| Net weight | 110 |
| Cross-sells with | Ex9PBE101 Ex9PBE102 |
| Category code | Global_Cat_002001002001 Automation components Control components Control & signalling Push-buttons and pilot lights |
| Product title | Illuminated double-headed pushbutton/push-button/PB - NOARK Ex9PB series |
| Description generating formula | A |
| Description | Illuminated double-headed pushbutton/push-button/PB with LED + 1 flush green button + 1 projecting red button - full-voltage input - NOARK (Ex9PB series) - Orange - Rectangular bezel / 55x30mm rectangular flush (green button) + projecting / extended (red button) - Spring-return (impulse/momentary) - 1NO+1NC contacts - Metallic alloy body / Chrome-plated bezel - Supply voltage 24Vac / 24Vdc - IP40 - equivalent to 1200443 |
| Catalogue connector | NOARK - Ex9PB series Ex9PBW8465D |
| Light Color | Orange Orange |
| Current consumption | 20mA max. |
| Operating mode | Spring-return (impulse/momentary) ``Impulse / momentary |
| Diameter | 22.5mm mounting hole diameter |
| Shape | Rectangular bezel 55x30mm rectangular flush (green button) + projecting / extended (red button) ``Bezel = rectangular `Button = rectangular `Button = flush / flat `Button = extended / protruding / raised ``Head = double |
| Material | Metallic alloy body Chrome-plated bezel |
| Benefits | Features - Metal construction for superior durability and visual appeal - UL recognized component and labeled IP 40 (front) for protection against dust and water - Low behind the panel depth - Operators mount in a round 7/8 in (22.5 mm) hole that is interchangeable with competitor's products - Field convertible from maintained to momentary (available on maintained pushbuttons only) - More than one million mechanical operations on momentary and half million on maintained pushbuttons |
