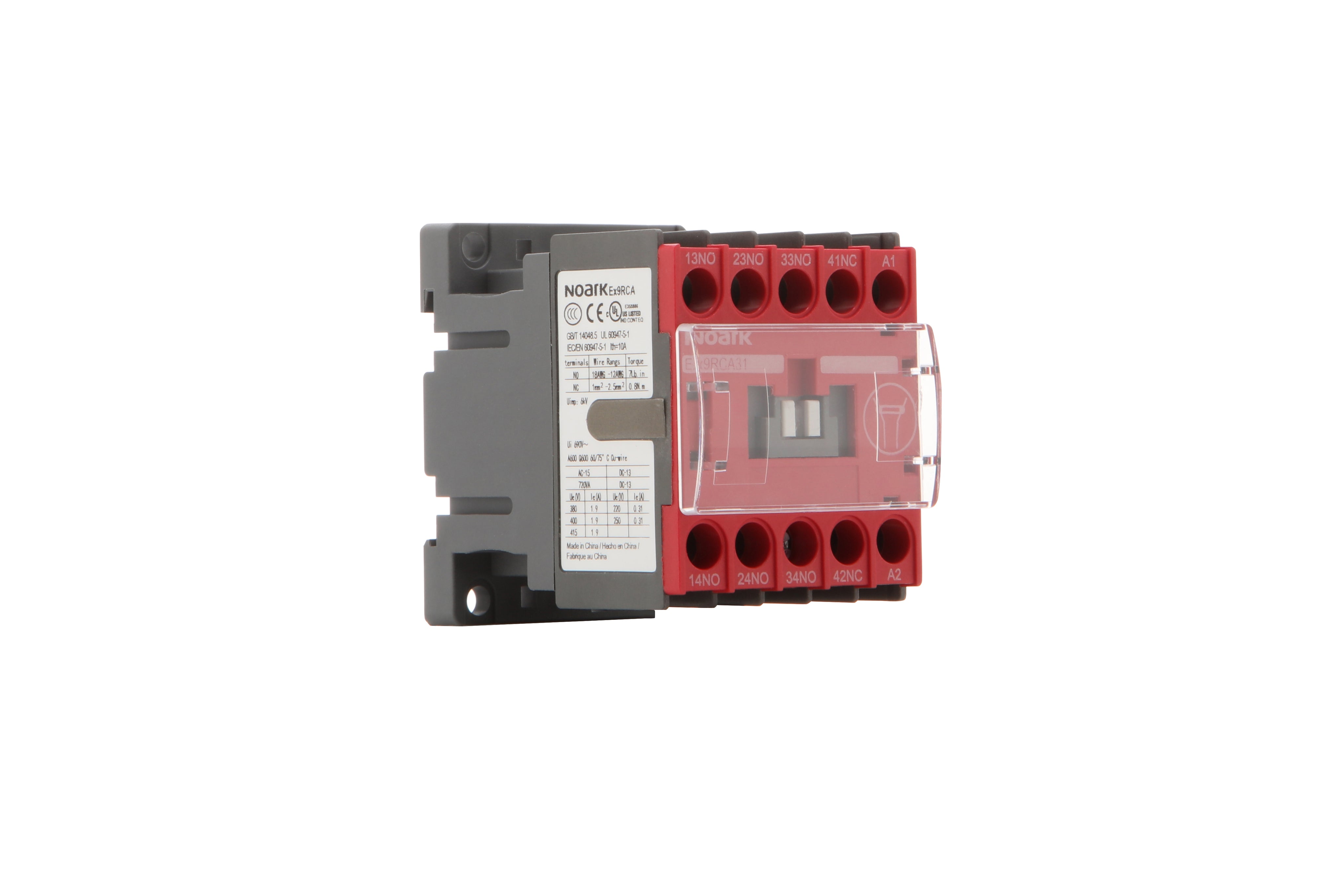

Ex9RCA22X-Safety Contactor Relay, Ex9RC, Standard, FVNR, AC, 208V, 50/60 Hz, 2NO,2NC, 4 pole
Regular price
$101.40 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Safety relay |
| Product series / family name | Industrial controls > Relays > Safety relays |
| Sub-range name | Ex9RCA series |
| Functions | Safety control relay |
| Design | 4-poles model |
| Rated voltage (AC) | 600Vac (load carrying capacity per UL) |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | (IEC) 690 (UL / CSA) 600 |
| Ambient air temperature for operation | -4°F...+140°F / -20°C...+60 |
| Ambient air temperature for storage | -76°F...+176°F / -60°C...+80 |
| Order code / Manufacturer SKU | Ex9RCA22X 1321928 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1321928 |
| Compliant with standard(s) | UL 60947-1 (file number E353865) IEC/EN 60947-5-1 CSA CE CCC RoHS GB/T 14048.4 |
| Type | Option = Standard (No options) |
| Rated current | 10A (continuous) 600A (switching capacity) 6A (120Vac; AC-15) 3A (230Vac; AC-15) 3A (240Vac; AC-15) 1.9A (400Vac; AC-15) 1.5A (480Vac; AC-15) 1.4A (500Vac; AC-15) 1.2A (600Vac; AC-15) 5A (24Vdc; DC-13; main poles) 2.5A (48Vdc; DC-13; main poles) 1.1A (110Vdc; DC-13; main poles) 0.55A (220Vdc; DC-13; main poles) 0.3A (440Vdc; DC-13; main poles) 0.2A (600Vdc; DC-13; main poles) 2.8A (24Vdc; AC-13; auxiliary poles) 1.2A (48Vdc; AC-13; auxiliary poles) 0.55A (110Vdc; AC-13; auxiliary poles) 0.27A (220Vdc; AC-13; auxiliary poles) 0.15A (440Vdc; AC-13; auxiliary poles) 0.1A (600Vdc; AC-13; auxiliary poles) 10A (Ith conventional free air thermal current at 40°C ambient) 10A (Ith conventional free air thermal current at 60°C ambient) |
| Supply voltage (AC) | 208 176.8...228.8Vac (208Vac nom.; 50/60Hz; 0.85...1.1 x Us) 41.6-156Vac drop-off (0.2...0.75 x Us) |
| Power consumption | (pick-up) 40 (hold-in) 9 |
| Response time | (closing delay) 15-30ms / 0.015-0.03 (opening delay) 15-25ms / 0.015-0.025 |
| Degree of protection | IP20 |
| Product title | Safety control relay - NOARK Ex9RCA series |
| Description generating formula | A |
| Description | Safety control relay - 4-poles model - NOARK (Ex9RCA series) - 176.8...228.8Vac (208Vac nom.; 50/60Hz; 0.85...1.1 x Us) supply voltage - with 1 x pow. suppl. input (A1-A2) + 1 x safety output (4PST with 2NO+2NC contacts) (11NC-12NC; 23NO-24NO; 33NO-34NO; 41NC-42NC) - IP20 - equivalent to 1321928 |
| Catalogue connector | NOARK - Ex9RCA series Ex9RCA22X |
