Ex9RE40C02
Primary brand NOARK Main function Electronic Overload Relay (EOR) Product series / family name Industrial controls > Overload relays Sub-range name Ex9RE series Functions Electronic Overload Relay (EOR)Manual reset function120s fixed...
$207.36 CAD
People are viewing this right now
Description
| Primary brand | NOARK |
| Main function | Electronic Overload Relay (EOR) |
| Product series / family name | Industrial controls > Overload relays |
| Sub-range name | Ex9RE series |
| Functions | Electronic Overload Relay (EOR) Manual reset function 120s fixed automatic reset function TEST and STOP pushbutton Status and fault signalling (2 x LEDs) |
| Poles | 3-poles (3P) ```3P |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | (IEC) 690 (UL/CSA) 600 (IEC; auxiliary contact) 250 |
| Connection type | Screw-clamp connections M4 screw connection (main power) M3 screw connections (aux. contact) |
| Cross-section | #18AWG...#8AWG / 1mm2...10mm2 conductors (main power connection; flexible cable) #18AWG / 1mm2 conductors (auxiliary contact terminal connection; flexible cable) 2 x #12AWG / 2.5mm2 conductors (auxiliary contact terminal connection; flexible cable) #18AWG / 1mm2 conductors (auxiliary contact terminal connection; flexible cable with cable end) 1 x #16AWG / 1.5mm2 + 1 x #12AWG / 2.5mm2 conductors (auxiliary contact terminal connection; flexible cable with cable end) |
| Short circuit breaking rating | 25kA (at 600Vac with MCCB M1; at 600Vac max. with fuse) 100kA (at 480Vac with MCCB M1; at 600Vac max. with fuse) |
| Protection functions | ``Electronic overload protection = Class 5 ``Electronic overload protection = Class 10 ``Electronic overload protection = Class 20 ``Electronic overload protection = Class 30 Adjustable electronic protection (Overload) Class 5 / Class 10 / Class 20 / Class 30 Short-circuit protection Phase failure protection Stall and jam protection |
| Protection settings | Protection against electronic overload -- 0.4A...2A (adjustable) Phase failure -- 0.36 x In sensitivity (current unbalance; trip in 2s) Stall and jam protection -- 4.8 x FLA (trip in 3s) |
| Dimensions | frame size 40AF H2.76" x W1.77" x D2.82" H70.1mm x W45mm x D71.8mm |
| Ambient air temperature for operation | -13...+104°F / -25...+40 |
| Order code / Manufacturer SKU | Ex9RE40C02 1420053 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1420053 |
| Compliant with standard(s) | Vibration resistance - 4gn for all 3 axes Shock resistance - 15gn for 11ms; for all 3 axes UL 60947-4-1 UL 60947-5-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 CB CE CCC GB/T 14048.4 GB/T 14048.5 |
| Short Description | Electronic Overload Relay (EOR) - 1420053 - Ex9RE - 40A frame - 0.4-2A setting - class 5/10/20/30 |
| Type | Option = Standard (No options) |
| Rated current | ````````0.4A ... ```2 ````In ≤ 1 ```1A < In ≤ 5 0.4A...2A current setting range Contacts ratings 3A rated operating current (at 250Vac; AC-15; aux. contact) 3A rated operating current (at 30Vdc; DC-13; aux. contact) 3A (conventional thermal current; Ith) |
| Minimum current | 0.4 |
| Maximum current | 2 |
| Supply voltage (AC) | 220Vac (50/60Hz) 220 |
| Contacts type | 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Connection type (electrical) | Terminals (Screw-clamp) |
| Tightening torque | (main power connection) 2 (auxiliary contact connection) 0.8 |
| Display | 2 x LEDs (status and fault signalling) |
| Degree of protection | IP20 |
| Cross-sells with | AD57UL |
| Category code | Global_Cat_001003002002 Electrical components Motor control and protection Motor protections Electronic protection relays |
| Product title | Electronic Overload Relay (EOR) - NOARK Ex9RE series |
| Description generating formula | A |
| Description | Electronic Overload Relay (EOR) - NOARK (Ex9RE series) - 0.4A...2A current setting range - 220Vac (50/60Hz) supply voltage - 3-poles (3P) - 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts - Screw-clamp connections - Direct mounting - frame size 40AF - IP20 - equivalent to 1420053 |
| Product image quality | Good |

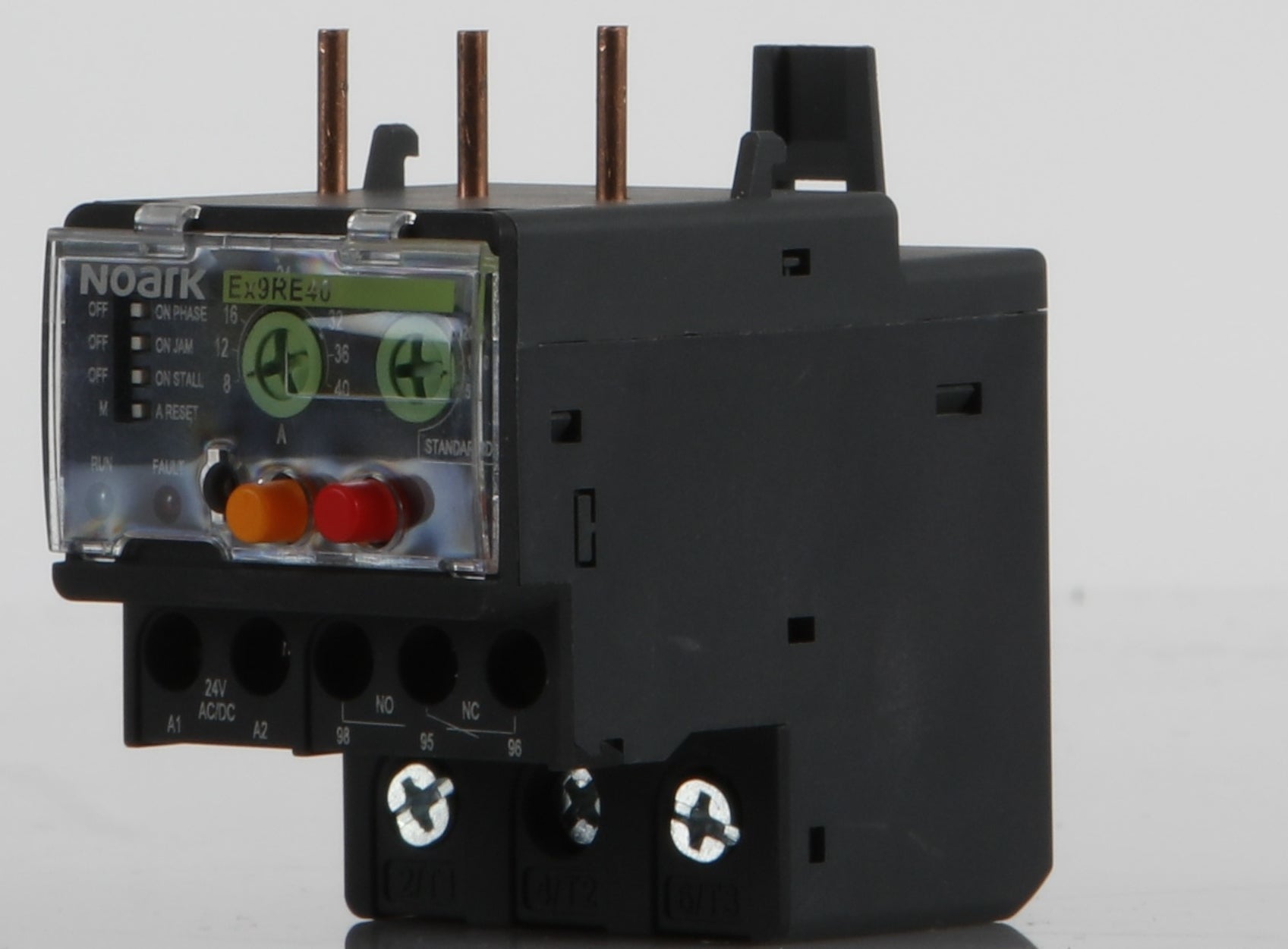

| Product Image (Full size) | Ex9RE40.jpg |
| Documents names | NOARK - Contactors - Relays - Manual Motor Starters - Datasheet.pdf |
| Catalogue connector | NOARK - Ex9RE series Ex9RE40C02 |
| Mounting mode | Direct mounting Direct mounting on contactor |
| Application type | 2000m / 6562ft max. operating altitude |
| Class | 5/10/20/30 |
| Benefits | NOARK Electric Ex9RE40 electronic thermal overload relays are designed to provide dependable and accurate protection for motors if an overload or phase failure occur. They also offer jam, stall and current unbalance protection. The Ex9RE40 is available with coil voltages of 24Vac/dc, 110Vac and 220Vac with current ranges from 0.1A to 40A. Each unit has selectable trip class settings of 5, 10, 20 and 30 providing a wide range of coverage with fewer products. They are also equipped with integrated diagnostics via LED lights to allow for quick status identification. Control settings are protected by a clear plastic cover. - Coil voltages: 24Vac/dc, 110Vac, 220Vac - Available in 4 current ranges: 0.1-0.5A, 0.4-2A, 1.8-9A, 8-40A - Integrated diagnostics with LED indicators - Selectable trip class: 5, 10, 20, 30 - 1NO + 1NC auxiliary contact - Manual or automatic reset - Compact 45mm size - Easily mounts on NOARK Ex9C 09-38 A contactor or on DIN 35mm - 5 year limited warranty |
