Ex9S80A32AM
Primary brand NOARK Main function Motor Protection Circuit Breaker (MPCB) Product series / family name Industrial controls > Manual Motor Starters (MMSs) Sub-range name Ex9S80 series Functions Magnetic-only Manual Motor Starter...
$196.50 CAD
People are viewing this right now
Description
| Primary brand | NOARK |
| Main function | Motor Protection Circuit Breaker (MPCB) |
| Product series / family name | Industrial controls > Manual Motor Starters (MMSs) |
| Sub-range name | Ex9S80 series |
| Functions | Magnetic-only Manual Motor Starter (MMS) / Branch protector |
| Design | low magnetic-trip threshold (below 15 x Ie) |
| Poles | 3-poles (3P) ```3P |
| Frame current rating | 80 |
| Rated operating voltage (Ue) | (AC) 230/240 (AC) 400/415 (AC) 460/480 (AC) 575/600 |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | (IEC) 690 (UL/CSA) 600 |
| Connection type | M8 HEX head screw connections |
| Short circuit breaking rating | `40kA ≤ SCCR < 45 42kA (type E; 240Vac; 480Y/277Vac) 30kA (type E; 600Y/347Vac) |
| Ultimate short circuit current breaking capacity (Icu) | 100kA (400Vac) 8kA (690Vac) |
| Service short circuit current breaking capacity (Ics) | 100kA (400Vac) 8kA (690Vac) |
| Trip unit type | ```Technology = `Magnetic only |
| Protection functions | Adjustable thermal protection (Overload) Class 10 Fixed threshold magnetic protection (Short-circuit) Phase failure protection |
| Protection settings | Protection against thermal overload -- 24A...32A (adjustable) Magnetic instantaneous protection against short-circuit -- 445A |
| Dimensions | H5.51" x W2.17" x D5.39" H140mm x W55mm x D136.8mm |
| Ambient air temperature for operation | -4...+140°F / -20...+60 |
| Order code / Manufacturer SKU | Ex9S80A32AM 1600187 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1600187 |
| Compliant with standard(s) | Vibration resistance - 5-150Hz with 5gn Shock resistance - 30gn for 11ms UL 60947-4-1 UL 60947-1 IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 IEC/EN 60947-5-1 RoHS CCC NOM CSA 22.2 No. 60947-1 CSA 22.2 No. 60947-4-1 GB/T 14048.1 GB/T 14048.2 GB/T 14048.4 |
| Technical compatibility with | Ex9S80 mtr. starter |
| Short Description | Magnetic-only Manual Motor Starter (MMS) - 1600187 - Ex9S80 - 24-32A setting - class 10 - rotary handle operation |
| Type | Option = special version (low magnetic-trip threshold; below 15 x Ie) |
| Rated current | ```````24A ... ``32 ``25A < In ≤ 30 ``30A < In ≤ 35 24A...32A current setting range 32A (conventional thermal current; Ith) Matched backup fuse ratings 50A (Class aM fuse at 690Vac) 63A (Class gl/gG fuse at 690Vac) |
| Minimum current | 24 |
| Maximum current | 32 |
| Tightening torque | 6 |
| Degree of protection | IP20 |
| Degree of pollution | III |
| Cross-sells with | AL5111 |
| Category code | Global_Cat_001001001004001 Electrical components Electrical circuits protection Circuit Breakers (CB) Motor Protection Circuit Breakers (MPCB) Magnetic Motor Protection Circuit Breakers (MPCB) |
| Product title | Magnetic-only Manual Motor Starter (MMS) / Branch protector - NOARK Ex9S80 series |
| Description generating formula | A |
| Description | Magnetic-only Manual Motor Starter (MMS) / Branch protector - low magnetic-trip threshold (below 15 x Ie) - NOARK (Ex9S80 series) - 24A...32A current setting range - Interrupting capacity 42kA (type E; 240Vac; 480Y/277Vac) - Rotary handle operation - 3-poles (3P) - M8 HEX head screw connections - Magnetic only - IP20 - compatible with Ex9S80 mtr. starter - equivalent to 1600187 |
| Product image quality | Good |

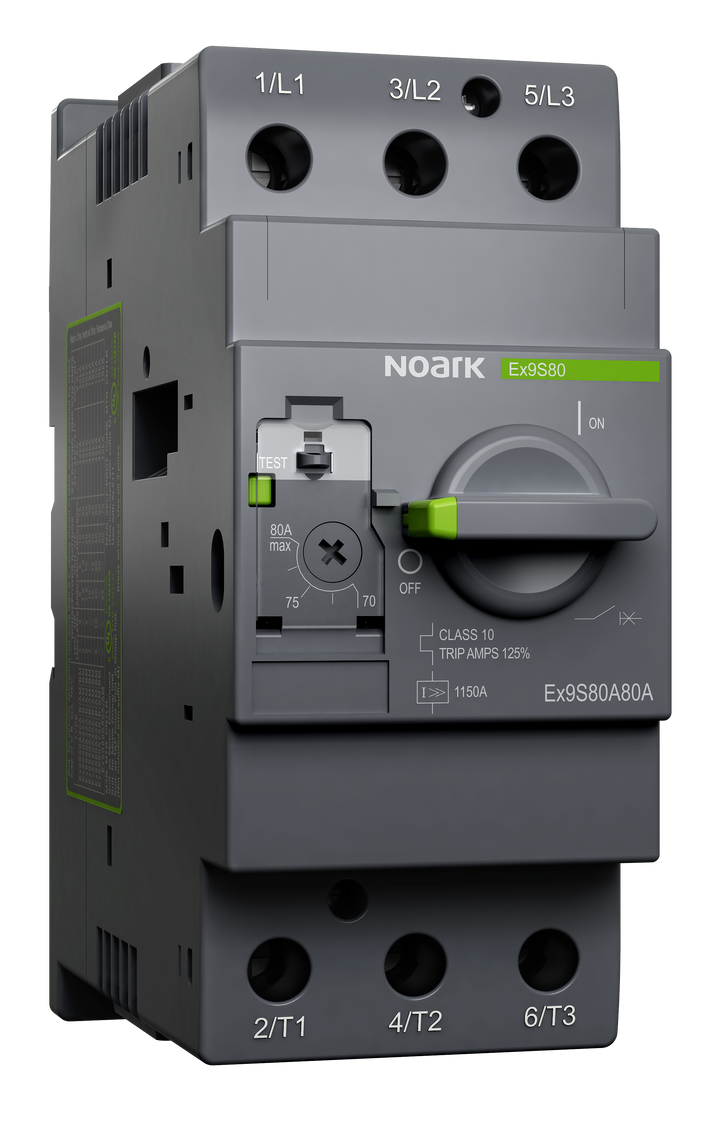

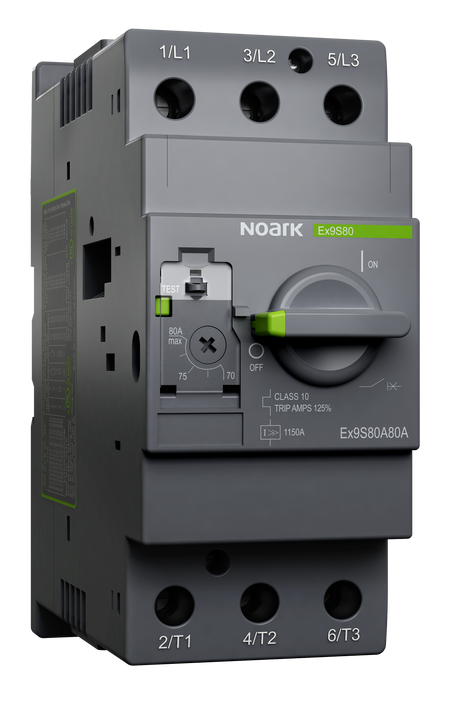

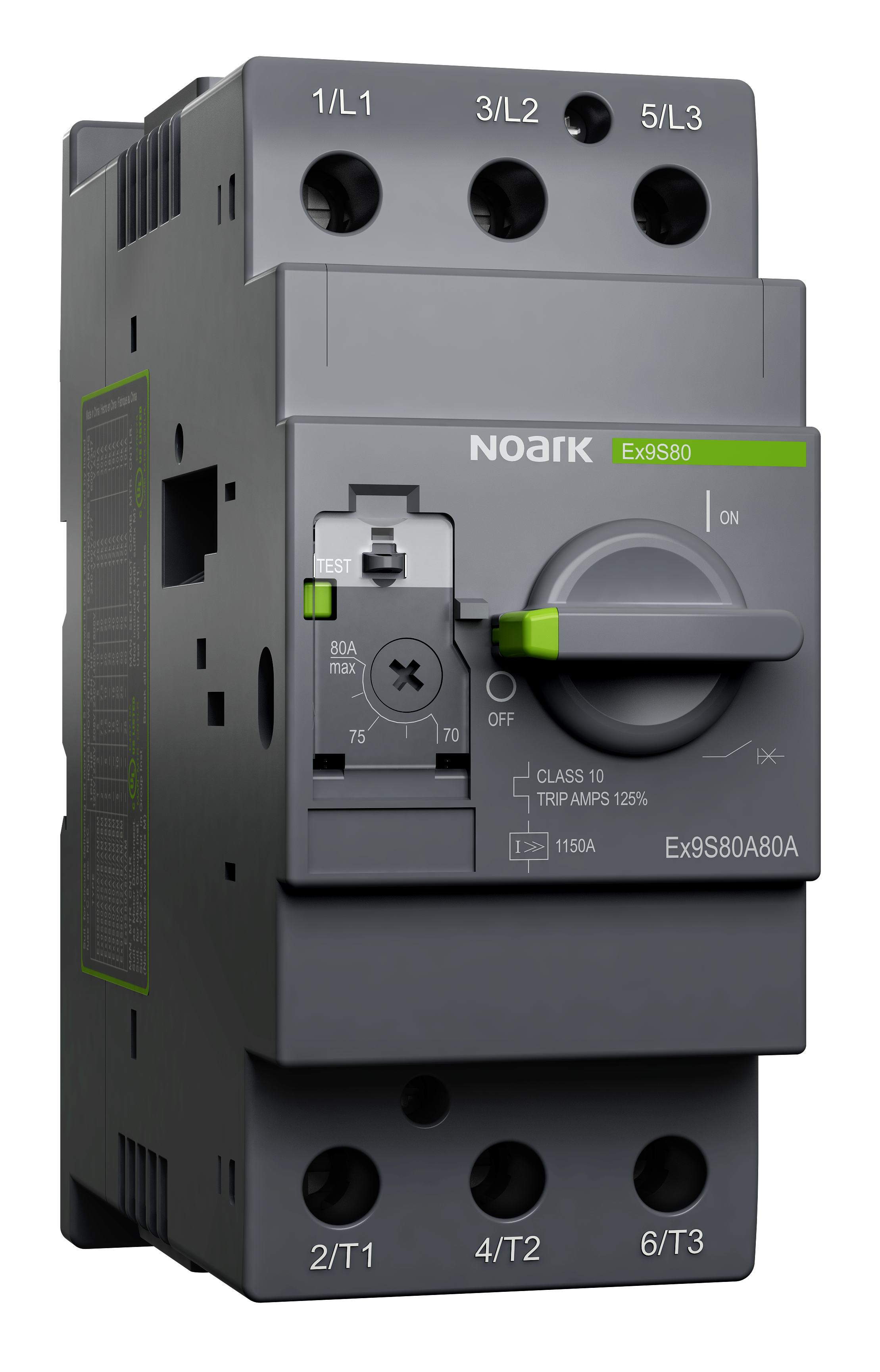

| Product Image (Full size) | Ex9S80.jpg |
| Documents names | NOARK - Ex9S series - Datasheet.pdf |
| Catalogue connector | NOARK - Ex9S80 series Ex9S80A32AM |
| Network frequency | 50/60 |
| Application type | 2000m / 6562ft max. operating altitude |
| Rated active power (kW) | 7.5kW (AC-3; 230/240Vac) 15kW (AC-3; 400/415Vac) 18.5kW (AC-3; 500Vac) 30kW (AC-3; 690Vac) |
| Rated power (HP) | 2HP (110-120Vac; single-phase; UL) 5HP (220-240Vac; single-phase; UL) 7.5HP / 7-1/2HP (200Vac; 3-phase; UL) 7.5HP / 7-1/2HP (208Vac; 3-phase; UL) 10HP (220-240Vac; 3-phase; UL) 20HP (460-480Vac; 3-phase; UL) 25HP (575-600Vac; 3-phase; UL) |
| Operating rate | max. 30 |
| Operating mode | Rotary handle operation |
| Class | 10 |
| Benefits | Ex9S Manual Motor Starter provide manual isolation, manual motor control, and over-current protection. Ex9S Manual Motor Starters are electro-mechanical devices combining the functions below in one unit. - Disconnect for Motor Branch Circuit - Manual Motor Control (automatic when used with contactor) - Branch-Circuit Short Circuit Protection (Magnetic Protection) - Overload Protection (Thermal Protection) - Trip Class 10 - 5-year limited warranty The National Electrical Codes requires an individual Motor Branch Circuit to be protected by a UL/CSA Listed Fuse, Circuit breaker or Self-Protected Combination Motor Controller. Available as: - Up to 80A at 600Vac - UL 60947-4-1 Type E Self Protection-Ex9S32 and Ex9S80 - UL 60947-4-1 Type F Group Motor Protection-Ex9S80 - Built-in fault indication - Full range of accessories - Lockable handle |
