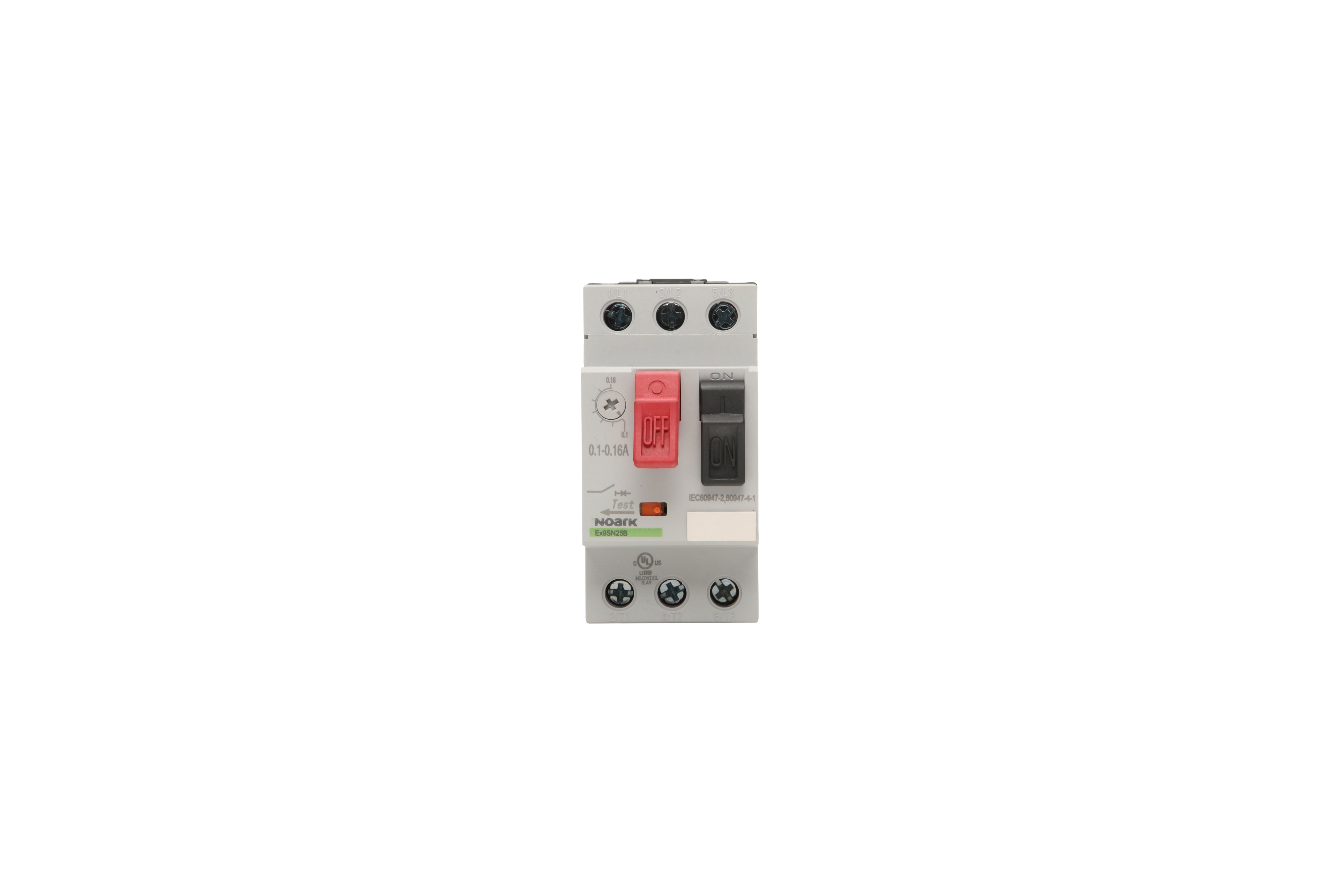

Ex9SN25B1A-Ex9SN Manual Motor Starter, 25 A Frame, Pushbutton, 0.63 - 1A
Regular price
$92.91 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Motor Protection Circuit Breaker (MPCB) |
| Product series / family name | Industrial controls > Manual Motor Starters (MMSs) |
| Sub-range name | Ex9SN25 series |
| Functions | Thermal-magnetic Manual Motor Starter (MMS) / Branch protector |
| Poles | 3-poles (3P) ```3P |
| Frame current rating | 25 |
| Rated operating voltage (Ue) | (AC) 230/240 (AC) 400/415 (AC) 460/480 (AC) 575/600 |
| Rated impulse voltage (Uimp) | 6 |
| Rated insulation voltage (Ui) | (IEC) 690 (UL/CSA) 600 |
| Ultimate short circuit current breaking capacity (Icu) | 100kA (400/415Vac) 100kA (690Vac) |
| Service short circuit current breaking capacity (Ics) | 100kA (400/415Vac) 100kA (690Vac) |
| Trip unit type | ```Technology = Thermal-Magnetic (adjustable) |
| Protection functions | Adjustable thermal protection (Overload) Class 10A Fixed threshold magnetic protection (Short-circuit) |
| Protection settings | Protection against thermal overload -- 0.63A...1A (adjustable) Magnetic instantaneous protection against short-circuit -- 13A |
| Dimensions | H3.6" x W1.75" x D3.74" H91.3mm x W44.5mm x D94.9mm |
| Ambient air temperature for operation | -4...+131°F / -20...+55 |
| Order code / Manufacturer SKU | Ex9SN25B1A 1600019 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1600019 |
| Short Description | Thermal-magnetic Manual Motor Starter (MMS) - 1600019 - Ex9SN25 - 0.63-1A setting - class 10A - push-btn. operation |
| Type | Option = Standard (No options) |
| Rated current | ````````0.63A ... ```1 ````In ≤ 1 0.63A...1A current setting range |
| Minimum current | 0.63 |
| Maximum current | 1 |
| Degree of protection | IP20 |
| Degree of pollution | III |
| Category code | Global_Cat_001001001004002 Electrical components Electrical circuits protection Circuit Breakers (CB) Motor Protection Circuit Breakers (MPCB) Thermal-magnetic Motor Protection Circuit Breakers (MPCB) |
| Product title | Thermal-magnetic Manual Motor Starter (MMS) / Branch protector - NOARK Ex9SN25 series |
| Description generating formula | A |
| Description | Thermal-magnetic Manual Motor Starter (MMS) / Branch protector - NOARK (Ex9SN25 series) - 0.63A...1A current setting range - Push-btn. operation - 3-poles (3P) - Thermal-Magnetic (adjustable) - IP20 - equivalent to 1600019 |
| Product image quality | Good |
| Product Image (Full size) | Ex9SN25B.jpg |
| Documents names | NOARK - Contactors - Relays - Manual Motor Starters - Datasheet.pdf |
| Catalogue connector | NOARK - Ex9SN25 series Ex9SN25B1A |
| Network frequency | 50/60 |
| Application type | 2000m / 6562ft max. operating altitude |
| Rated power (HP) | 1/2HP (480Vac; 3-phase; UL) 1/2HP (600Vac; 3-phase; UL) |
| Operating mode | Push-btn. operation |
| Class | 10A |
| Benefits | Manual motor starters are electromechanical protection devices for the main circuit. They are used mainly to switch motors manually ON/OFF and protect them fuse less against short circuit and loss-phase. None-fuss protection with a manual motor starter saves costs, space and ensures a quick reaction under short-circuit condition, by switching off the motor within milliseconds. Manual motor starter combinations are setup together with contactors and overload relays. - Available with enclosed coils for protection against particle contamination - Short-circuit protection - Disconnect function - Overload protection - Loss-phase protection - Suitable for three and single-phase application - Trip-free mechanism - Clear switch position indication ON/OFF/TRIP - Lockable handle |
