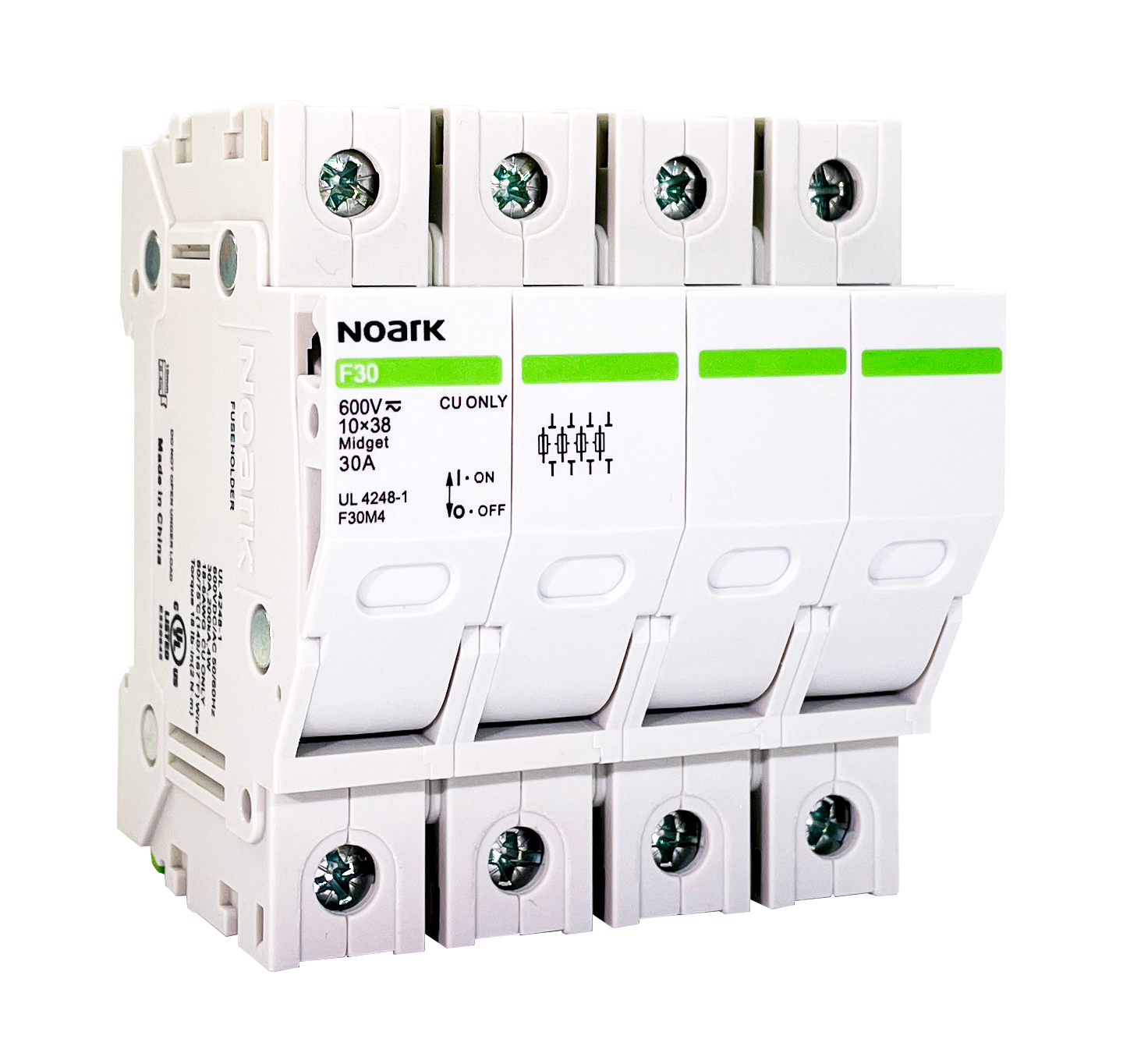

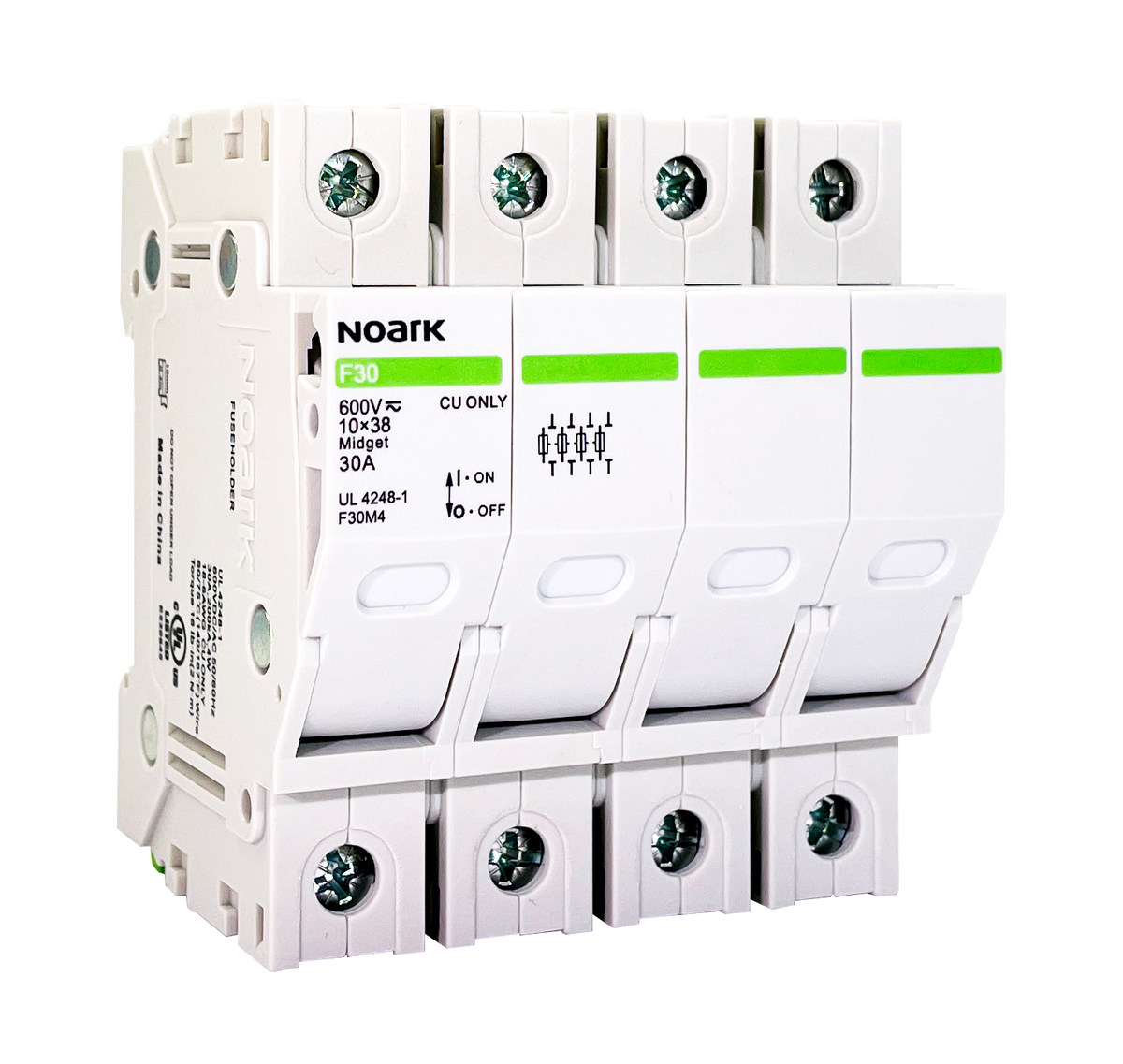

F30M4L-Fuse Holder, 30A, 600Vac/dc, Midget fuse, 4 Pole, with Indicator
Regular price
$55.37 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Fuse holder |
| Product series / family name | Electrical protection > Fuse protections > Fuse-holders |
| Sub-range name | F30 series |
| Functions | Fuse holder |
| Design | blown-fuse light indicator UL Midget class - 10x38mm |
| Poles | 4-poles (4P) ```4P |
| Rated voltage (AC) | 600Vac |
| Cross-section | for #18AWG...#6AWG / 0.75mm2...16mm2 Copper wire |
| Short circuit breaking rating | 200kA |
| Dimensions | H80mm x W79mm x D71.2mm H3.15" x W3.11" x D2.8" |
| Ambient air temperature for operation | -22°F...+185°F / -30°C...+85 |
| Order code / Manufacturer SKU | F30M4L 1002564 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1002564 |
| Compliant with standard(s) | UL4248-1 |
| Short Description | Fuse holder - 1002564 - 4P - 600Vacdc - w/light indicator - UL Midget class |
| Type | Option = special version (with blown-fuse light indicator) |
| Rated current | 30A max. |
| Rated Voltage (DC) | 600Vdc |
| Tightening torque | 18lb.in / 2 |
| Degree of protection | IP20 |
| Degree of pollution | III |
| Net weight | 280 |
| Category code | Global_Cat_001001008 Electrical components Electrical circuits protection Fuse protections |
| Product title | Fuse holder - NOARK F30 series |
| Description generating formula | A |
| Description | Fuse holder with blown-fuse light indicator - UL Midget class - 10x38mm - NOARK (F30 series) - 30A max. rated current - 4-poles (4P) - 600Vac / 600Vdc rated voltage - DIN rail mounting (35mm width) - equivalent to 1002564 |
| Catalogue connector | NOARK - Fuse-holders and fuses - F30 series F30M4L |
| Mounting mode | DIN rail DIN rail |
| Net Width (mm) | 35 |
| Climatic resistance | Altitude does not exceed 6561ft (2000m) |
