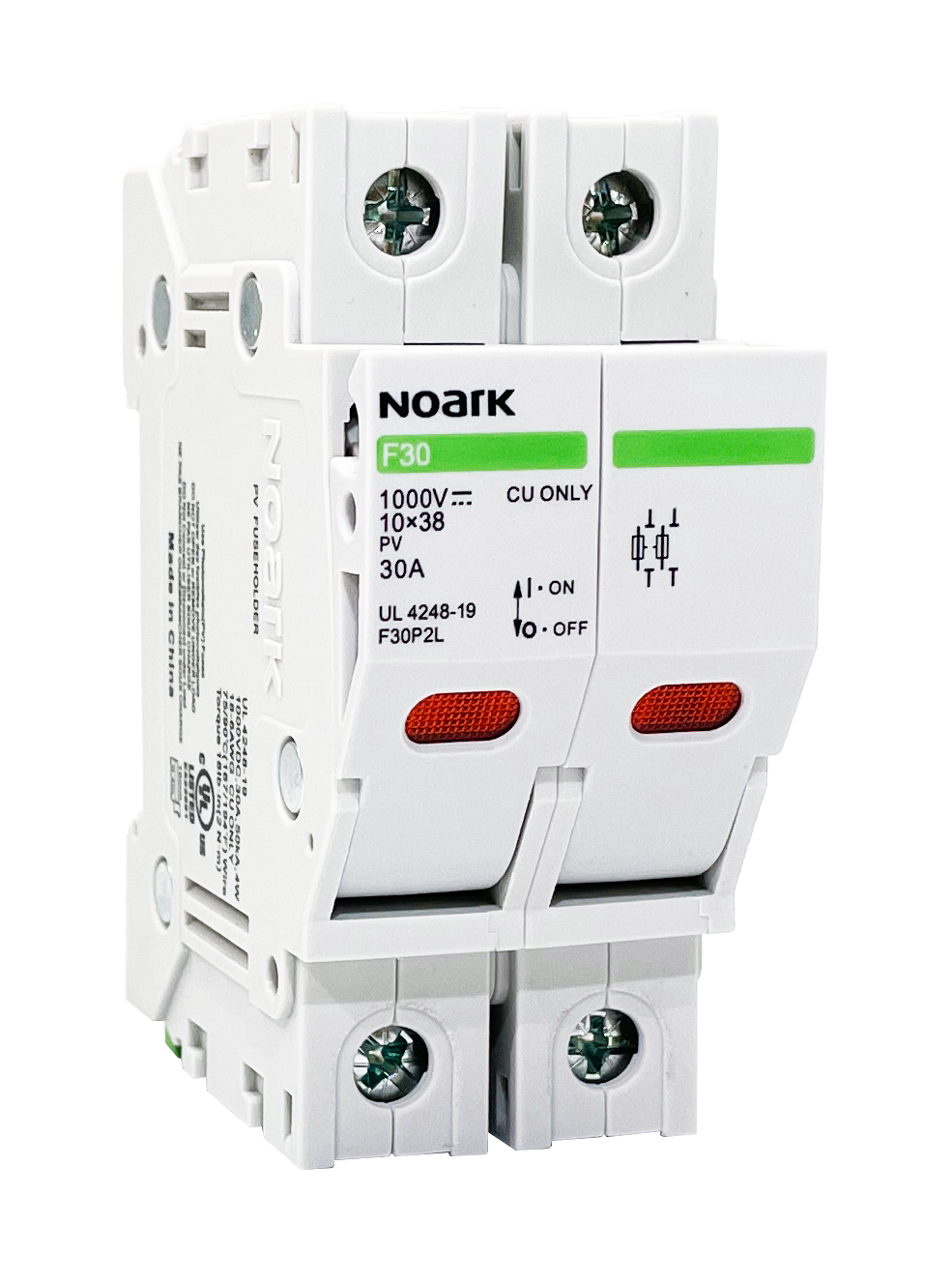

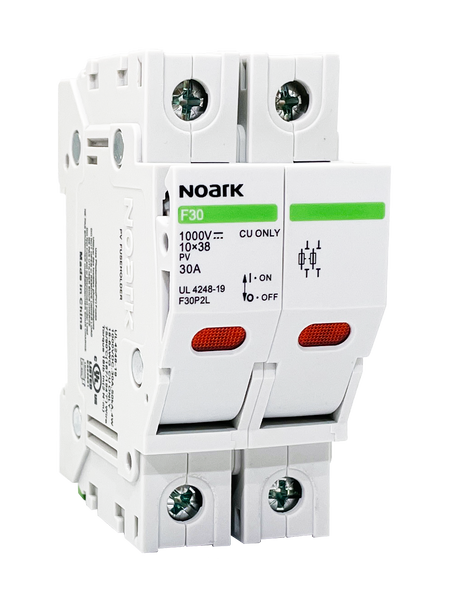

F30P2L-Fuse Holder, 30A, 1000Vdc, gPV Photovoltaic fuse, 2 Pole, with Indicator
Regular price
$32.05 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Fuse holder |
| Product series / family name | Electrical protection > Fuse protections > Fuse-holders |
| Sub-range name | F30 series |
| Functions | Fuse holder |
| Design | blown-fuse light indicator photovoltaic - 10x38mm |
| Poles | 2-poles (2P) ```2P |
| Cross-section | for #18AWG...#6AWG / 0.75mm2...16mm2 Copper wire |
| Short circuit breaking rating | 50kA |
| Dimensions | H80mm x W79mm x D35.6mm H3.15" x W3.11" x D1.4" |
| Ambient air temperature for operation | -22°F...+185°F / -30°C...+85 |
| Order code / Manufacturer SKU | F30P2L 1002570 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1002570 |
| Compliant with standard(s) | UL4248-19 |
| Short Description | Fuse holder - 1002570 - 2P - 1000Vdc - w/light indicator - photovoltaic |
| Type | Option = special version (with blown-fuse light indicator) |
| Rated current | 30A max. |
| Rated Voltage (DC) | 1000Vdc |
| Tightening torque | 18lb.in / 2 |
| Degree of protection | IP20 |
| Degree of pollution | III |
| Net weight | 140 |
| Category code | Global_Cat_001001008 Electrical components Electrical circuits protection Fuse protections |
| Product title | Fuse holder - NOARK F30 series |
| Description generating formula | A |
| Description | Fuse holder with blown-fuse light indicator - photovoltaic - 10x38mm - NOARK (F30 series) - 30A max. rated current - 2-poles (2P) - 1000Vdc rated voltage - DIN rail mounting (35mm width) - equivalent to 1002570 |
| Catalogue connector | NOARK - Fuse-holders and fuses - F30 series F30P2L |
| Mounting mode | DIN rail DIN rail |
| Net Width (mm) | 35 |
| Climatic resistance | Altitude does not exceed 6561ft (2000m) |
