Flexible Insulated Busbar，800A，8 Layers of copper strips
1.97"×0.04"，789.6kcmil，6.56´Length
| Part Number | FB2MTS 8×50×1 |
| Rated current | 800A |
| Standard length | 6.56ft |
| Surface treatment | Tinplating |
| Material | copper，TPE |
| Flame-retardant rating | UL94 V-0 |
| Electrical strength | ＞20KV/mm |
| Halogen-free rating | IEC60754-1；IEC61249-2-21 |
| Low smoke | ISO5659-2 |
| Glowing filament | IEC60695-2-11（GWEPT：960） |
| Thickness of insulation | 0.07～0.09" |
| Elongation of insulation | ≥350% |
| Working voltage, UL | AC 1000V，DC 1500V |
| Working tempreture | -40°F～257°F |
| Certification | UL758 |
| △T 20K | 740 |
| △T 40K | 1050 |
| △T 50K | 1200 |
| △T 60K | 1350 |
| △T 70K | 1400 |
| A | 1.97 |
| B | 0.04 |
| Strip layers（N） | 8 |
| Cross-section | 789.6 |
| Weight with standard length | 18.52 |

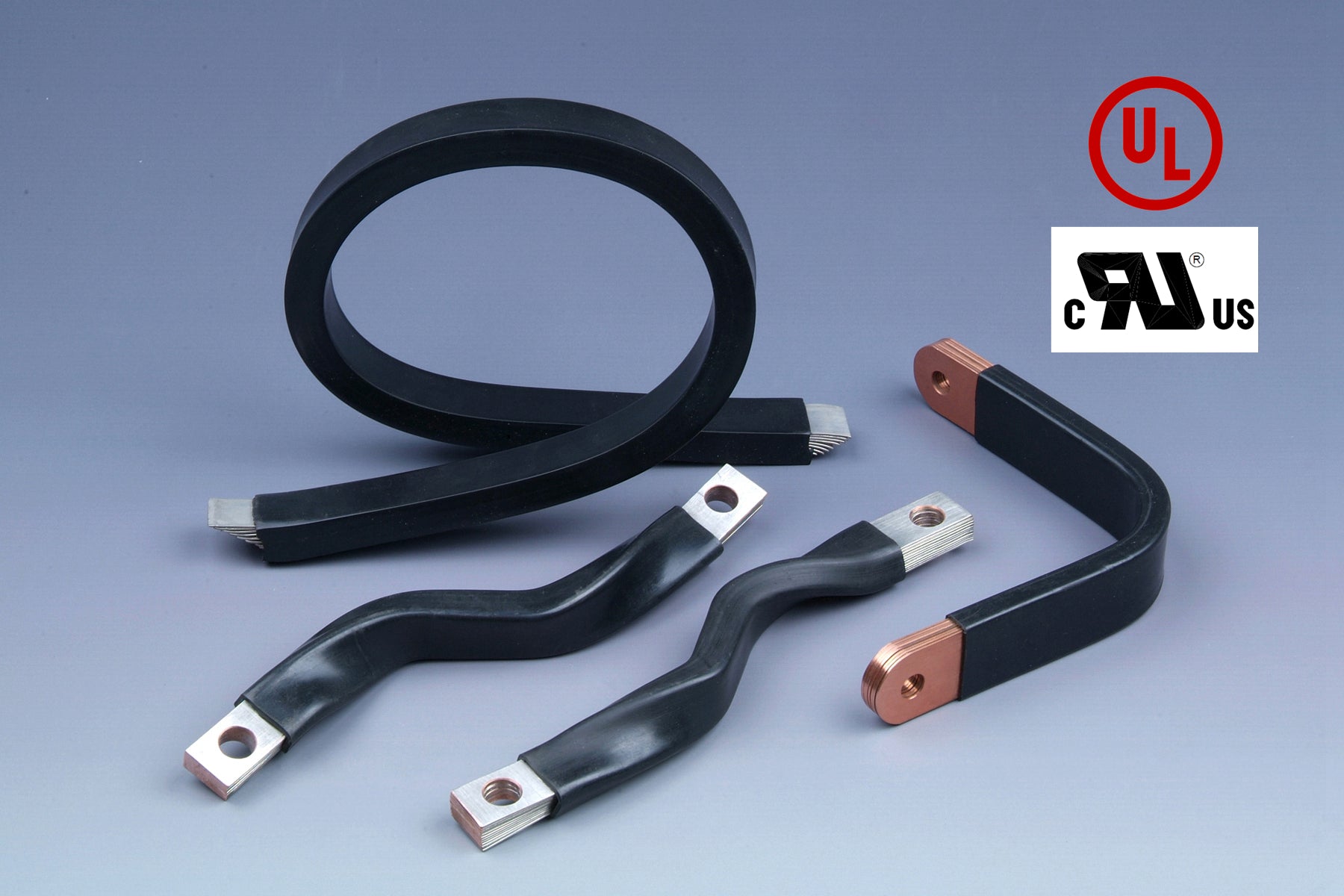

Introduction to Flexible Insulated Busbar
1.It is composed of multiple layers of thin strips of tin-plated or bare electrolytic copper.
2. It is easy to install. The holes for connection in the ends of the stacked copper busbars make it possible to connect without additional terminal blocks.
3. High-quality insulating materials used are halogen-free, flame retardant, and of high electric resistance and low smoke, which makes it more environmentally friendly.
4. It can be easily bent, folded and twisted. The flexibility, space-saving, and reduced weight make it an ideal alternative to thick cables and hard busbars.
5. The product is nice in appearance and highly flexible in manufacturing.
6. The products have a wide range in dimension (20mm² to 1200mm²);
7.UL758 Certification
8. Complying with CE standards;
9. SGS Certification
10. Maximum pressure resistance, UL 1000Vac/1500Vdc, stable performance in harsh environments.
