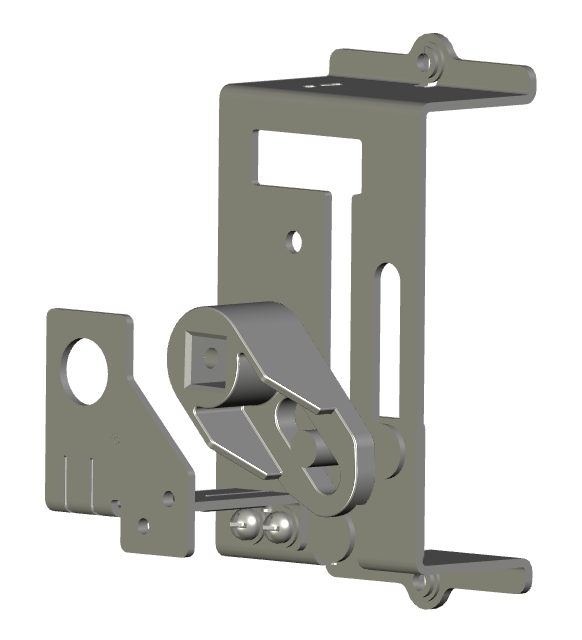

HMD1A-Handle operating mechanism, Shaft cross-section 10×10mm, 2-Pole M1
Regular price
$50.90 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Handle |
| Product series / family name | Electrical protection > MCCBs and disconnector switches accessories > Handles and shafts |
| Functions | Rotary handle operating mechanism |
| Dimensions | compatible with 10x10mm shft. H112mm x W59.9mm x D62mm H4.41" x W2.36" x D2.44" |
| Order code / Manufacturer SKU | HMD1A 1102765 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1102765 |
| Technical compatibility with | for M1 (2-poles) frame size |
| Short Description | Rotary handle operating mechanism - 1102765 - for M1 2P - compatible with 10x10mm shafts |
| Type | Option = Standard (No options) |
| Net weight | 500 |
| Cross - sells with | ES20A ES32A ES50A NEH2B2 NEH2R2 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Rotary handle operating mechanism - NOARK |
| Description generating formula | A |
| Description | Rotary handle operating mechanism - for M1 (2-poles) frame size - NOARK - compatible with 10x10mm shft. - equivalent to 1102765 |
| Catalogue connector | NOARK - Circuit breaker accessories HMD1A |
