HSM-EMV.SC(PG Thread)--EMC, Shielding Claw, nickel-plated brass, seal: polyamide. Temperature range: -4℃ to 100℃ (120℃ short-term). IP68 (with suitable O-ring; IEC60529). Vibration/impact resistant (IEC-60077-1999). CE, RoHS, UL certified. PG7 - PG48
Couldn't load pickup availability

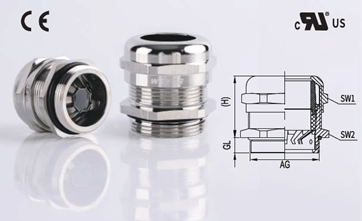

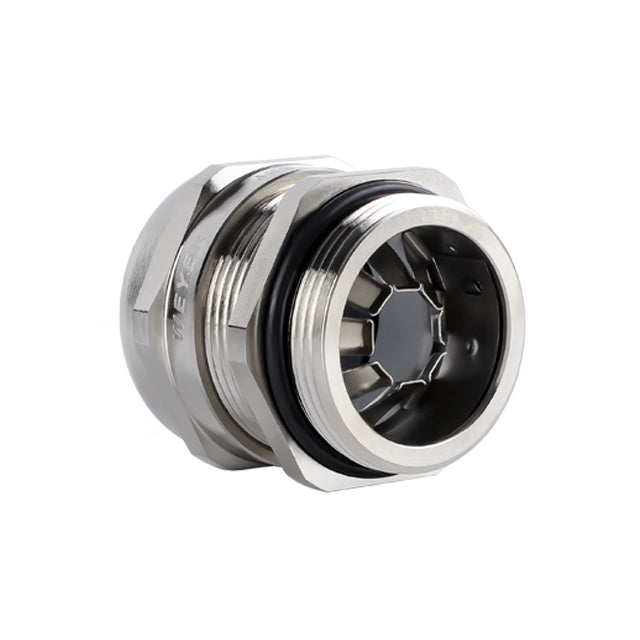

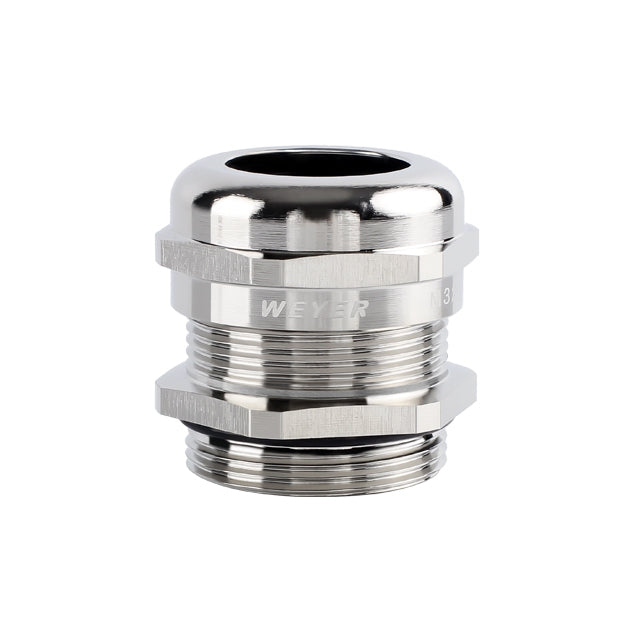

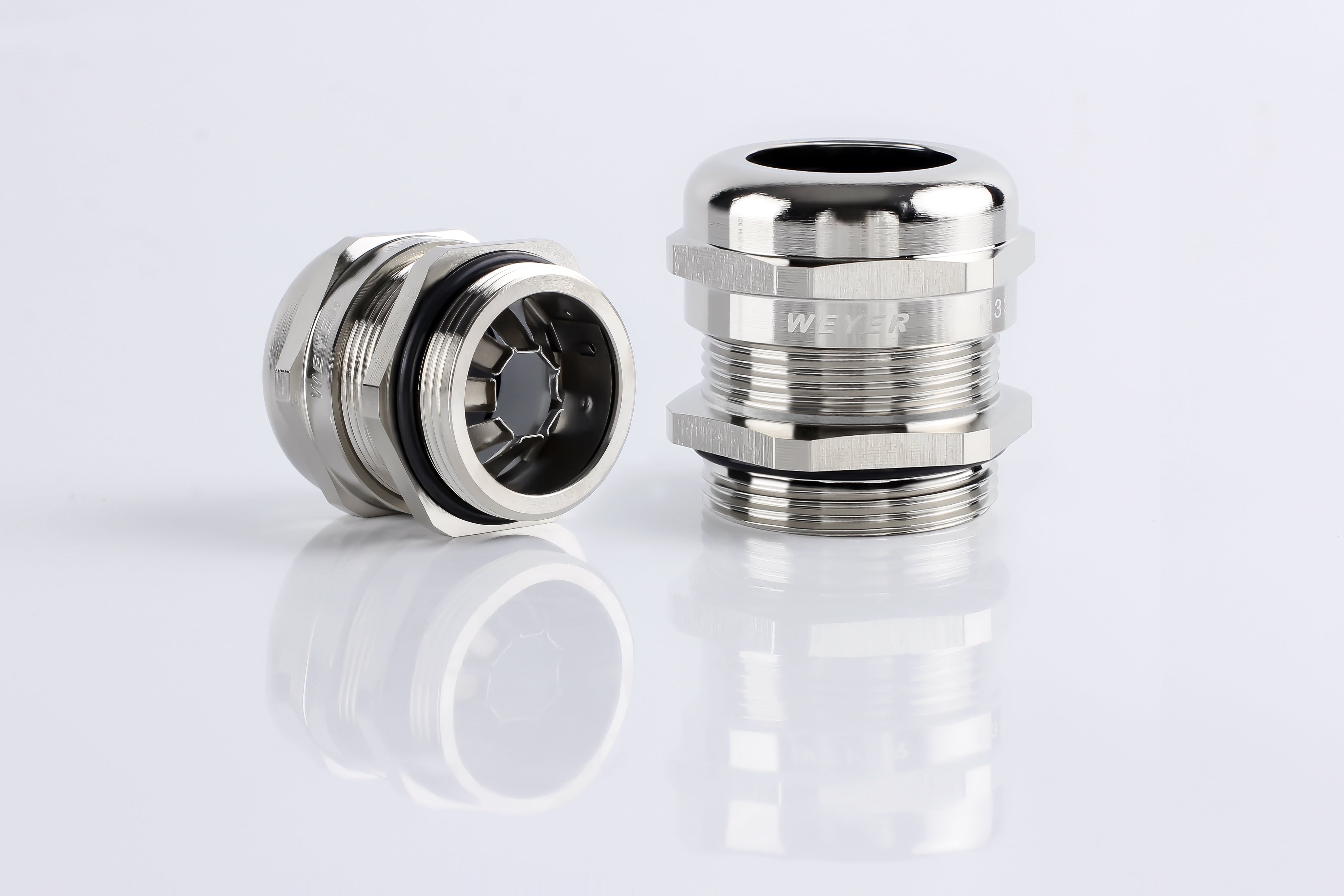

EMC Cable Gland (PG thread)
Introduction
Cable glands are mainly used to clamp, fix, protect the cables from water and dust. They are widely applied to such fields as control boards, apparatuses, lights, mechanical equipment, train, motors, projects etc.
|
Material: |
Body: nickel-plated brass; seal: polyamide; sealing: modified rubber |
|
Temperature Range: |
Min -40℃, Max 100℃, Short-term 120℃ |
|
Protection degree: |
IP68(IEC60529) with suitable O-ring within specified clamping range |
|
Properties: |
Resistance to vibration and impact, in accordance with IEC-60077-1999. |
|
Applications: |
Machine building, electric equipment, electric control cupboard |
|
Certifications: |
CE, RoHS, UL |
Specification:
(Please contact us for more information if you need other sizes or threads not included in the following list.)
|
Article no. |
Thread |
Clamping range |
AG |
GL |
(H) |
Wrench size |
Assembly |
Packet |
|
|
Dimension |
mm |
mm |
mm |
mm |
mm |
Type |
units |
|
HSM-EMV.SC-P07 |
PG7 |
3~6.5 |
12.5 |
6 |
20.5 |
14/15 |
A / B |
75 |
|
HSM-EMV.SC1-P07 |
PG7 |
4~8 |
12.5 |
6 |
22 |
20/19 |
A |
32 |
|
HSM-EMV.SC-P09 |
PG9 |
4~8 |
15.2 |
7 |
21 |
17/17 |
A / B |
75 |
|
HSM-EMV.SC1-P09 |
PG9 |
5~10 |
15.2 |
7 |
24 |
22/21 |
A |
32 |
|
HSM-EMV.SC-P11 |
PG11 |
4~8 |
18.6 |
7 |
21 |
17/20 |
A / B |
32 |
|
HSM-EMV.SC1-P11 |
PG11 |
5~10 |
18.6 |
7 |
24 |
22/21 |
A |
32 |
|
HSM-EMV.SC-P13.5 |
PG13.5 |
7~12 |
20.4 |
7 |
24.5 |
22/22 |
A / B |
32 |
|
HSM-EMV.SC1-P13.5 |
PG13.5 |
9~14 |
20.4 |
7 |
28 |
26/26 |
A |
32 |
|
HSM-EMV.SC-P16 |
PG16 |
7~12 |
22.5 |
7 |
24.5 |
22/24 |
A / B |
32 |
|
HSM-EMV.SC1-P16 |
PG16 |
9~14 |
22.5 |
7 |
28 |
26/26 |
A |
32 |
|
HSM-EMV.SC-P21 |
PG21 |
11~16 |
28.3 |
7 |
25.75 |
28/30 |
A / B |
18 |
|
HSM-EMV.SC1-P21 |
PG21 |
13~18 |
28.3 |
7 |
28.5 |
30/30 |
A |
18 |
|
HSM-EMV.SC-P29 |
PG29 |
15~21 |
37 |
8 |
28.5 |
36/40 |
A / B |
8 |
|
HSM-EMV.SC1-P29 |
PG29 |
17~24 |
37 |
8 |
33 |
38/40 |
A |
8 |
|
HSM-EMV.SC-P36 |
PG36 |
22~30 |
47 |
9 |
35.5 |
45/50 |
A / B |
8 |
|
HSM-EMV.SC1-P36 |
PG36 |
22~32 |
47 |
9 |
34 |
50/50 |
A |
4 |
|
HSM-EMV.SC-P42 |
PG42 |
30~38 |
54 |
9 |
40.5 |
58/58 |
A / B |
2 |
|
HSM-EMV.SC1-P42 |
PG42 |
30~40 |
54 |
9 |
37 |
58/58 |
A |
2 |
|
HSM-EMV.SC-P48 |
PG48 |
37~44 |
59.3 |
10 |
43.5 |
65/65 |
A / B |
2 |
|
HSM-EMV.SC1-P48 |
PG48 |
38~53 |
59.3 |
10 |
48 |
75/75 |
A |
2 |
The assembly type for HSM-EMV.SC1 is type A.
The assembly type for HSM-EMV.SC is type A or B.
