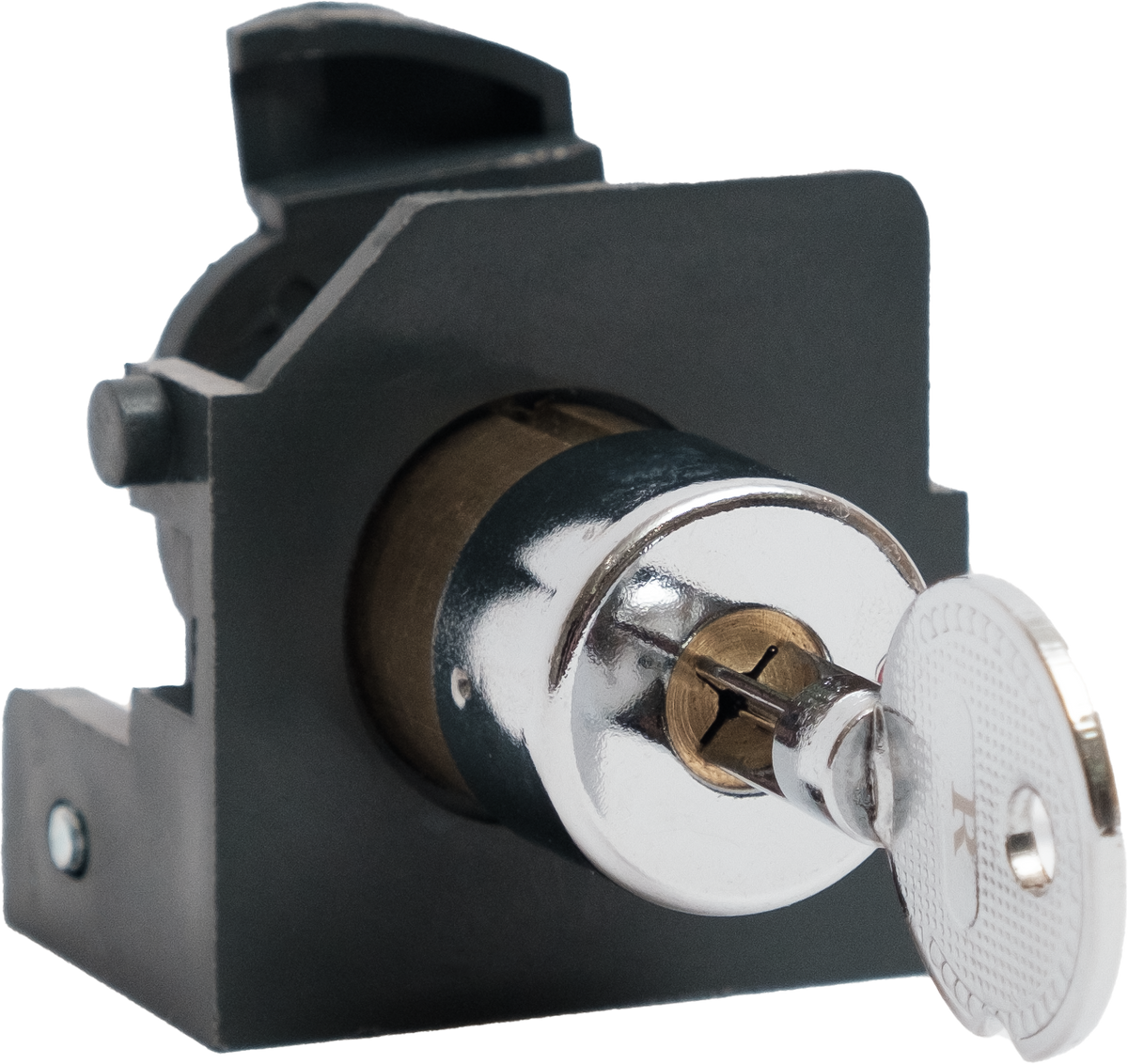

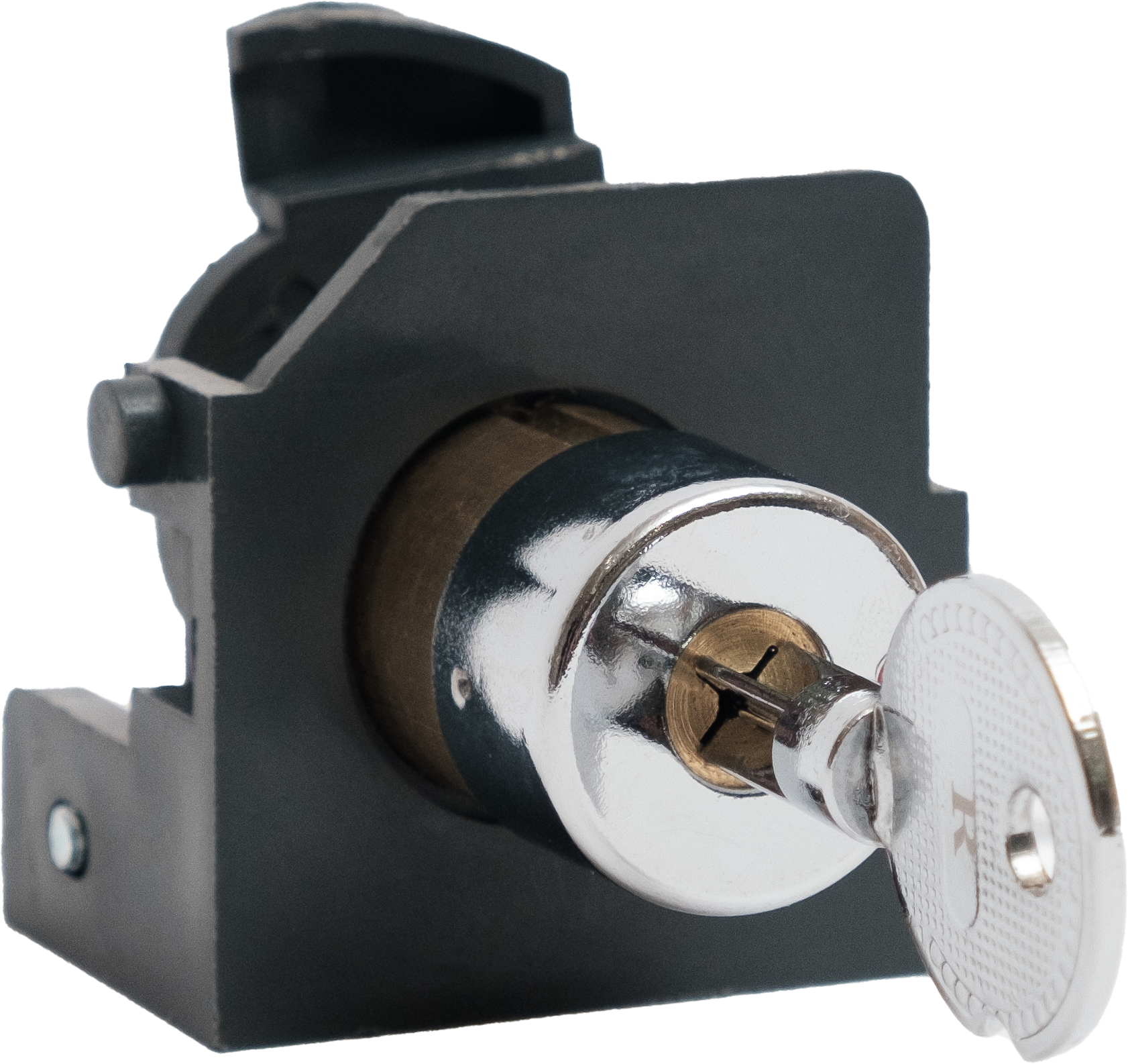

KLK12N2-OFF position keylock, 2 locks 1 key, for A25/A32/A40 ACB/ADS
Regular price
$800.74 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Locking |
| Product series / family name | Electrical protection > ACBs and disconnector switches accessories > Locking and interlocking |
| Sub-range name | A32 series |
| Functions | OFF-position keylock |
| Design | set of 2 locks + 1 key |
| Dimensions | H52.1mm x W45mm x D48.5mm H2.05" x W1.77" x D1.91" |
| Order code / Manufacturer SKU | KLK12N2 1800320 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800320 |
| Technical compatibility with | for A32/ASD32 (3200A) / ASD25 (2500A) frame size |
| Short Description | OFF-position keylock - 1800320 - for A32/ASD32 (3200A) ACB/switch disconnector |
| Type | Option = Standard (No options) |
| Net weight | 400 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | OFF-position keylock - NOARK A32 series |
| Description generating formula | A |
| Description | OFF-position keylock with set of 2 locks + 1 key - for A32/ASD32 (3200A) / ASD25 (2500A) frame size - NOARK (A32 series) - equivalent to 1800320 |
| Catalogue connector | NOARK - A32 ASD32 accessories KLK12N2 |
| Benefits | - Used to lock the circuit breaker in OFF position, preventing the circuit breaker from being closed - One disconnector comes standard with one lock and one key - Two disconnectors provide two locks and one key - Three disconnectors provide three locks and two keys |
