LA4158 - Compression connector with 400 kcmil wire size, 0 DEG barrel angle, Long barrel size, 1 hole(s), and 1/2 bolt size.
Regular price
$14.21 CAD
Couldn't load pickup availability
High-performance compression connector with 400 kcmil wire size, 0 DEG barrel angle, Long barrel size, 1 hole(s), and 1/2 bolt size.
| Wire Size | 400 kcmil |
| Barrel Angle | 0 DEG |
| Barrel Size | Long |
| Number of Holes | 1 |
| Flex Class | 400 Navy |
| Bolt Size | 1/2 |

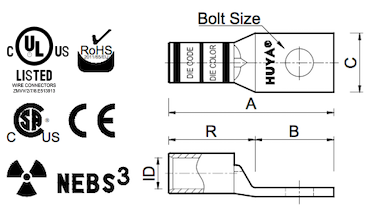

| Total Length (A) | 4.03 in |
| Tongue Length (B) | 1.58 in |
| Tongue Width (C) | 1.41 in |
| Tongue Thickness | 0.18 in |
| Barrel Length (R) | 2.45 in |
| Barrel Inner Diameter | 0.79 in |
| Die Code | 76 |
| Die Color | Blue |
| Material | Cu |
| Finish | Electro tin plated |
| Voltage Rating | 600V-35KV |
| Certification | UL/CUL, CSA |
