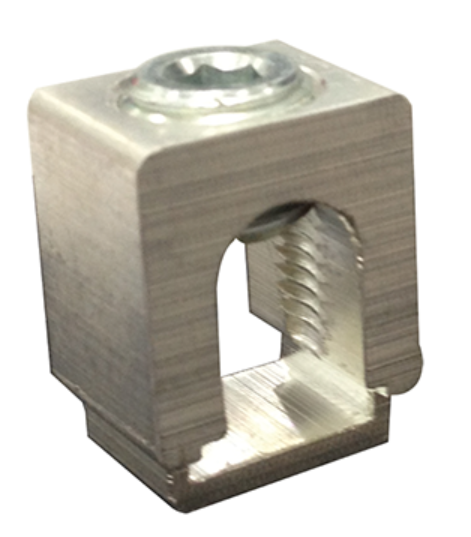

LTC22NGA-Six Conductor Breaker Lug (M2): (6) - #12 AWG to #6 AWG CU or AL wire
Regular price
$52.02 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Lug (Mechanical) |
| Product series / family name | Electrical protection > MCCBs and disconnector switches accessories > Connection hardware |
| Functions | Individual mechanical lug |
| Design | 3 conductors per lug (2 different cross-sections) |
| Cross-section | for 1 x #3AWG...#2/0AWG (00) Copper (Cu) / Aluminium (Al) wire and 2 x #12AWG...#1AWG Copper (Cu) / Aluminium (Al) wires |
| Order code / Manufacturer SKU | LTC22NGA 1102589 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1102589 |
| Technical compatibility with | for M2 frame size |
| Short Description | Individual mechanical lug - 1102589 - for M2 |
| Type | Option = Standard (No options) |
| Net weight | 150 |
| Contents | 1pc |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Individual mechanical lug - NOARK |
| Description generating formula | A |
| Description | Individual mechanical lug - 3 conductors per lug (2 different cross-sections) - for M2 frame size - NOARK - for 1 x #3AWG...#2/0AWG (00) Copper (Cu) / Aluminium (Al) wire and 2 x #12AWG...#1AWG Copper (Cu) / Aluminium (Al) wires - contains 1pc - equivalent to 1102589 |
| Catalogue connector | NOARK - Circuit breaker accessories LTC22NGA |
