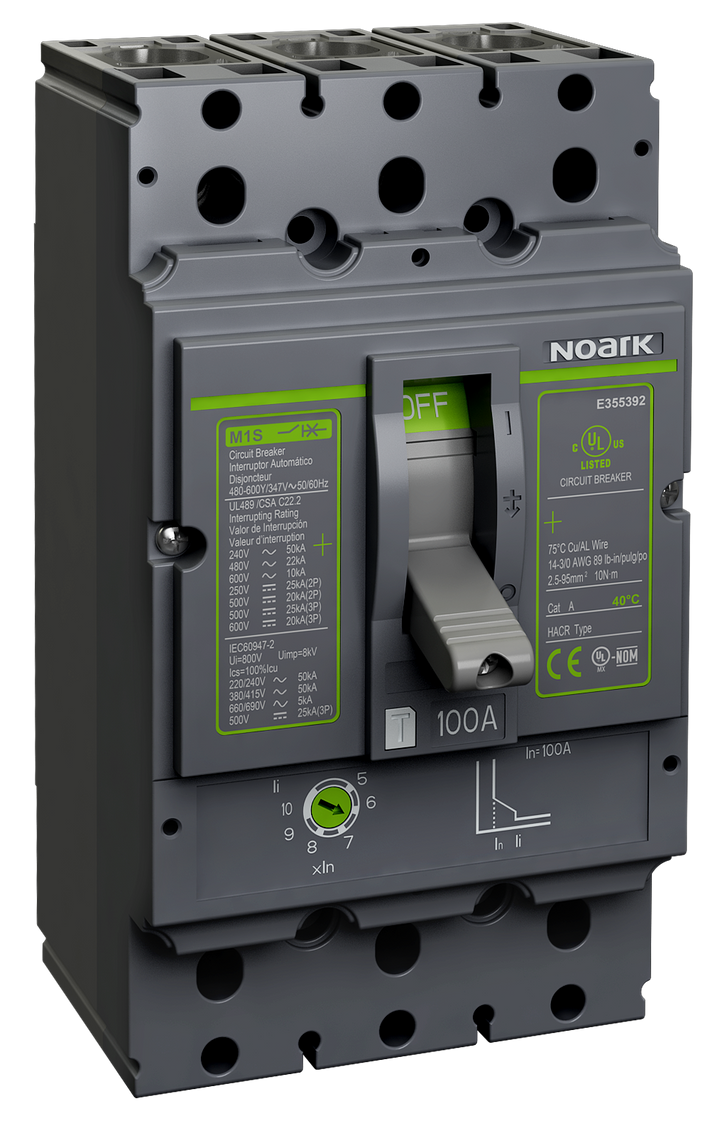

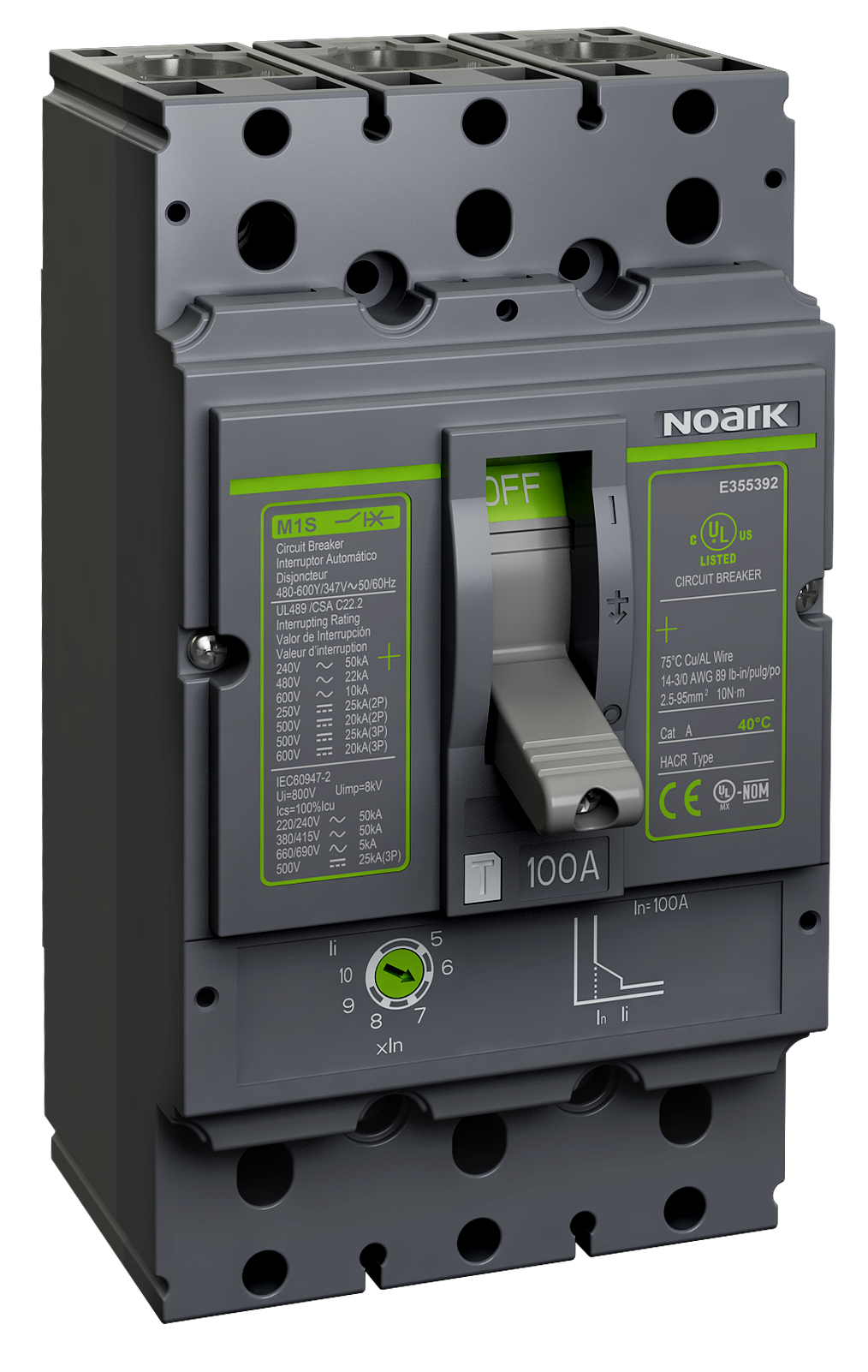

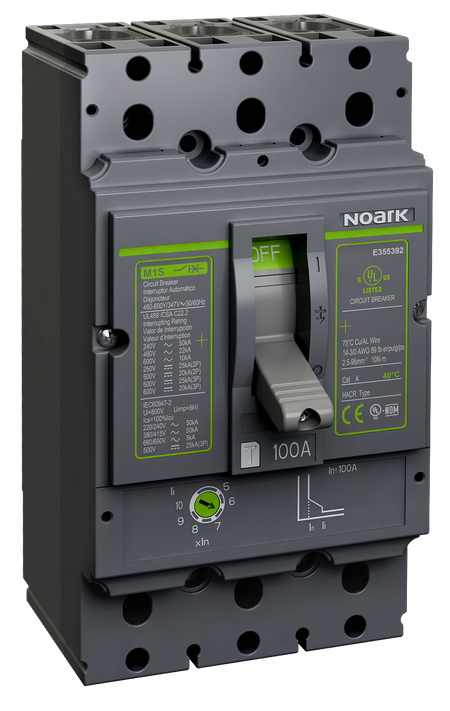

M1MH50T3L
Primary brand NOARK Main function Motor Protection Circuit Breaker (MPCB) Product series / family name Electrical protection > Circuit breakers > Motor-Circuit Protectors (MCPs) Sub-range name Ex9M1M series Functions Magnetic-only Motor...
$295.86 CAD
sold in last hours
People are viewing this right now
Description
| Primary brand | NOARK |
| Main function | Motor Protection Circuit Breaker (MPCB) |
| Product series / family name | Electrical protection > Circuit breakers > Motor-Circuit Protectors (MCPs) |
| Sub-range name | Ex9M1M series |
| Functions | Magnetic-only Motor Circuit Protector (MCP) |
| Poles | 3-poles (3P3d) |
| Frame current rating | 150 |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 600Vac (50/60Hz) |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Short circuit breaking rating | 150kA (240Vac) 100kA (480Vac) 25kA (600Vac) |
| Ultimate short circuit current breaking capacity (Icu) | 150kA (220/240Vac) 150kA (380/415Vac) 10kA (660/690Vac) |
| Trip unit type | ```Technology = Thermal-Magnetic (adjustable) |
| Protection functions | Adjustable thermal protection (Overload) Adjustable threshold Magnetic protection (Short-circuit) |
| Protection settings | Protection against thermal overload -- adjustable FLA to 7 pre-defined settings (19.2A...22.9A / 23A...26.8A / 26.9A...30.6A / 30.7A...34.5A / 34.6A...38.3A / 38.4A...42.1A / 42.2A...43.5A) Magnetic instantaneous protection against short-circuit -- adjustable to 7 pre-defined settings (250A / 300A / 350A / 400A / 450A / 500A / 550A) |
| Dimensions | H164mm x W90mm x D34.5mm H6.46" x W3.54" x D3.33" |
| Order code / Manufacturer SKU | M1MH50T3L 1101432 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1101432 |
| Compliant with standard(s) | UL489 listed UL489 recognized (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 6000 hours |
| Mechanical durability | 10000 hours |
| Short Description | Magnetic-only MCP - 1101432 - UL489 - M1 frame - 3P3d - 50A rated - 600Vac |
| Type | Option = Standard (No options) |
| Rated current | 50A (continuous Amperes) |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 1670 |
| Cross - sells with | AL/AX21P SHT21NA SHT21NB SHT21NC SHT21ND SHT21NE SHT21NI UVT21NA UVT21NB UVT21NC UVT21ND UVT21NE UVT21NF UVT21NG UVT21NH KLK21NA KLK21NB KLK21NC MIT21NA MOD21NA MOD21NB MOD21NC FH4XC FH4XD OMC OMB21 FSB10 NOARK-FSB2 FSB3 FSB4 FSB5 FSB6 FSB7 NOARK-FSB8 FSB9 LTC21NAA LTC21NCA LTC21NFA CKLB21 LK21NCA LK21NFA RCP21N TC21N PIA21N |
| Category code | Global_Cat_001001001004 Electrical components Electrical circuits protection Circuit Breakers (CB) Motor Protection Circuit Breakers (MPCB) |
| Product title | Magnetic-only Motor Circuit Protector (MCP) - NOARK Ex9M1M series |
| Description generating formula | A |
| Description | Magnetic-only Motor Circuit Protector (MCP) - UL489 listed - NOARK (Ex9M1M series) - 3-poles (3P3d) - Rated current 50A (continuous Amperes) - Interrupting capacity 25kA (600Vac) - Lugs on both load and line sides - Thermal-Magnetic (adjustable) trip unit - equivalent to 1101432 |
| Catalogue connector | NOARK - Ex9M1M series M1MH50T3L |
| Benefits | NOARK Electric offers a complete range of 3pole Molded Case Motor Circuit Protectors (MCPs magnetic only) These MCPs are for 3-phase asynchronous motors protection. We offer MCPs in 6 frame sizes - M1M (150A), M2M (250A), M3M (400A), M4M (600A), M5M (800A) and M6M (1200A). Each frame size offers a range of interrupting voltage ratings from 240-690Vac. This series MCP conforms to global standards that include UL 489 / CSA C22.2 No 5 and IEC 60947-2. The traditional system used for this purpose relies on 3 different devices. These include a circuit breaker, a thermal relay and a contactor for motor switching. In particular, when selecting these devices, different factors must be taken into consideration such as - The rated motor power - The type of motor: with cage rotor or with wound rotor - The fault current at the point of the network where the motor is installed Certifications - UL 489 Recognized File Number E355392 - UL Recognized to UL489 and CSA standards 22.2 No. 5 - IEC/EN 60947-2 - CE Compliant - RoHS Compliant |
