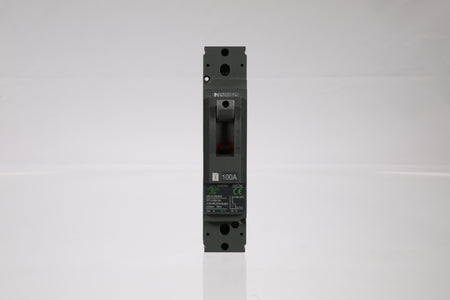

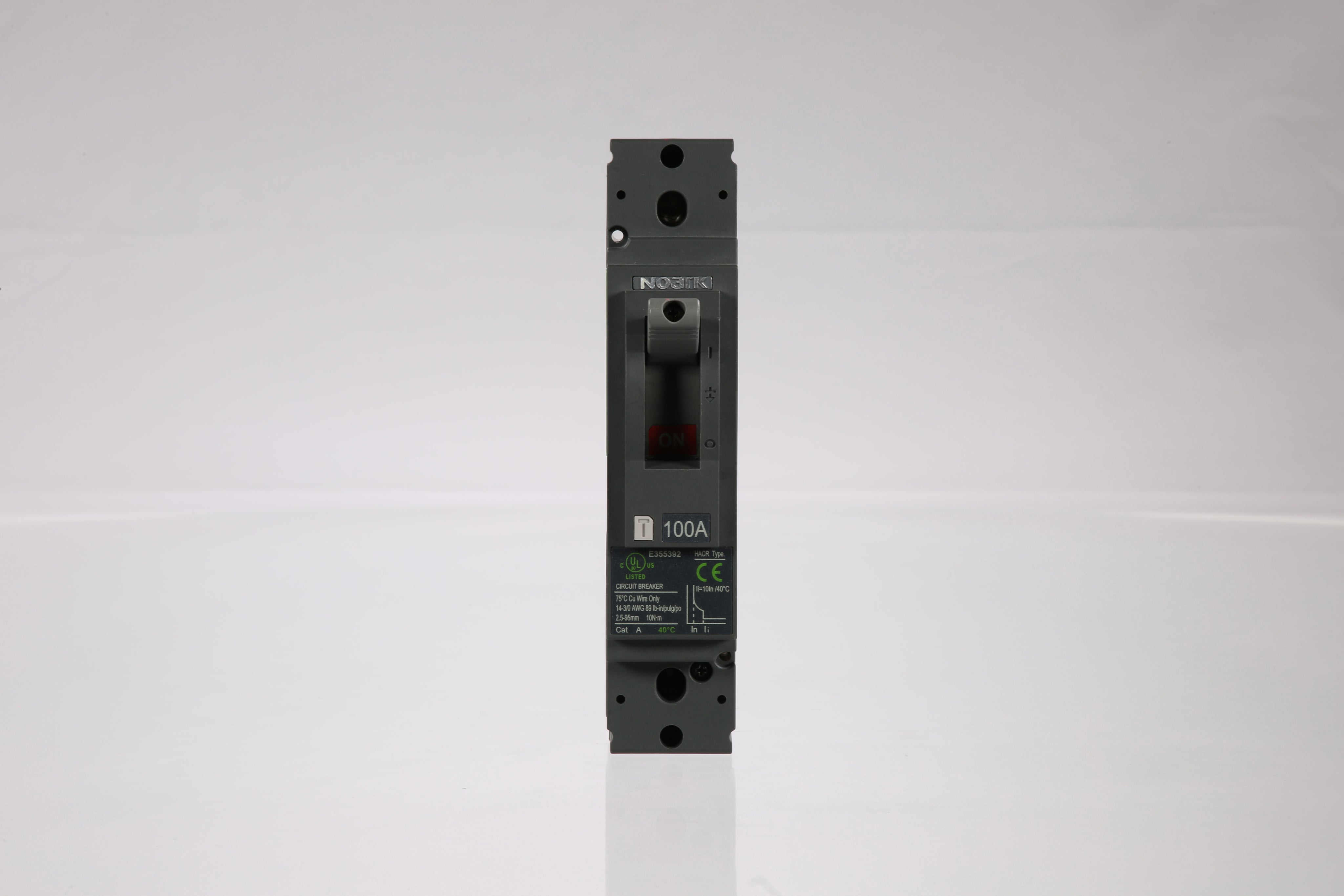

M1N150T1L-MCCB UL 489, M1N, 150 A Frame Size, 10kA @ 480 Vac, 150A, 1P, Lug Line/Load Side
Regular price
$263.62 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Moulded Case Circuit Breaker (MCCB) |
| Product series / family name | Electrical protection > Circuit breakers > AC Moulded Case Circuit Breakers (MCCBs) |
| Sub-range name | Ex9M1 series |
| Functions | Moulded Case Circuit Breaker (MCCB) |
| Poles | 1-pole (1P1d) |
| Trip current rating | 150 |
| Frame current rating | 150 |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 480Vac |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Cross-section | connects with #14AWG...#3/0AWG (000) / 2.5mm2...95mm2 conductors |
| Short circuit breaking rating | 50kA (240Vac) 10kA (480Vac) 25kA (250Vdc) |
| Ultimate short circuit current breaking capacity (Icu) | 50kA (220/240Vac) 25kA (250Vdc) |
| Trip unit type | ```Technology = Thermal-Magnetic (fixed) Series = FT/FM (Fixed Thermal / Fixed Magnetic) |
| Protection functions | Fixed thermal protection (Overload) Fixed threshold magnetic protection (Short-circuit) |
| Protection settings | Protection against thermal overload -- fixed at 150A Magnetic instantaneous protection against short-circuit -- fixed at 1500A |
| Dimensions | H164mm x W35mm x D84.5mm H6.46" x W1.4" x D3.33" |
| Ambient air temperature for operation | -25°C...+70 |
| Utilisation category | A |
| Order code / Manufacturer SKU | M1N150T1L 1102237 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1102237 |
| Compliant with standard(s) | UL489 listed UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 6000 hours |
| Mechanical durability | 10000 hours |
| Short Description | MCCB - 1102237 - UL489 - M1 frame - 1P1d - 150A rated - 250Vdc/ac |
| Type | Option = Standard (No options) |
| Rated current | 150A |
| Rated Voltage (DC) | 250Vdc |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 670 |
| Cross - sells with | KLK21NA KLK21NB KLK21NC |
| Category code | Global_Cat_001001001002 Electrical components Electrical circuits protection Circuit Breakers (CB) Moulded Case Circuit Breakers (MCCB) |
| Product title | Moulded Case Circuit Breaker (MCCB) - NOARK Ex9M1 series |
| Description generating formula | A |
| Description | Moulded Case Circuit Breaker (MCCB) - UL489 listed - NOARK (Ex9M1 series) - 1-pole (1P1d) - Rated current 150A - Interrupting capacity 10kA (480Vac) - Lugs on both load and line sides - Thermal-Magnetic (fixed) (FT/FM (Fixed Thermal / Fixed Magnetic)) trip unit - equivalent to 1102237 |
| Catalogue connector | NOARK - Ex9M1 series M1N150T1L |
| Benefits | Ex9M series offers - High-breaking capacity and a patented arc extinguishing design - Bearing-type spindle reduces the operating force required to open and close the operating mechanism - High quality compact modular design - Fixed and adjustable trip unit settings - Line and load lugs installed standard - 5-Year limited warranty Certifications - UL 489 listed File Number E355392 - UL listed to UL489 and Canada CSA standards 22.2 No. 5 - IEC/EN 60947-2 - CE Compliant - UL489B, File Number E513573 Wide range of accessories - Alarm switch and auxiliary contact - Shunt and undervoltage trip - Rotary type handle - Flange type handle - Motor Operator - Mechanical Interlock |
