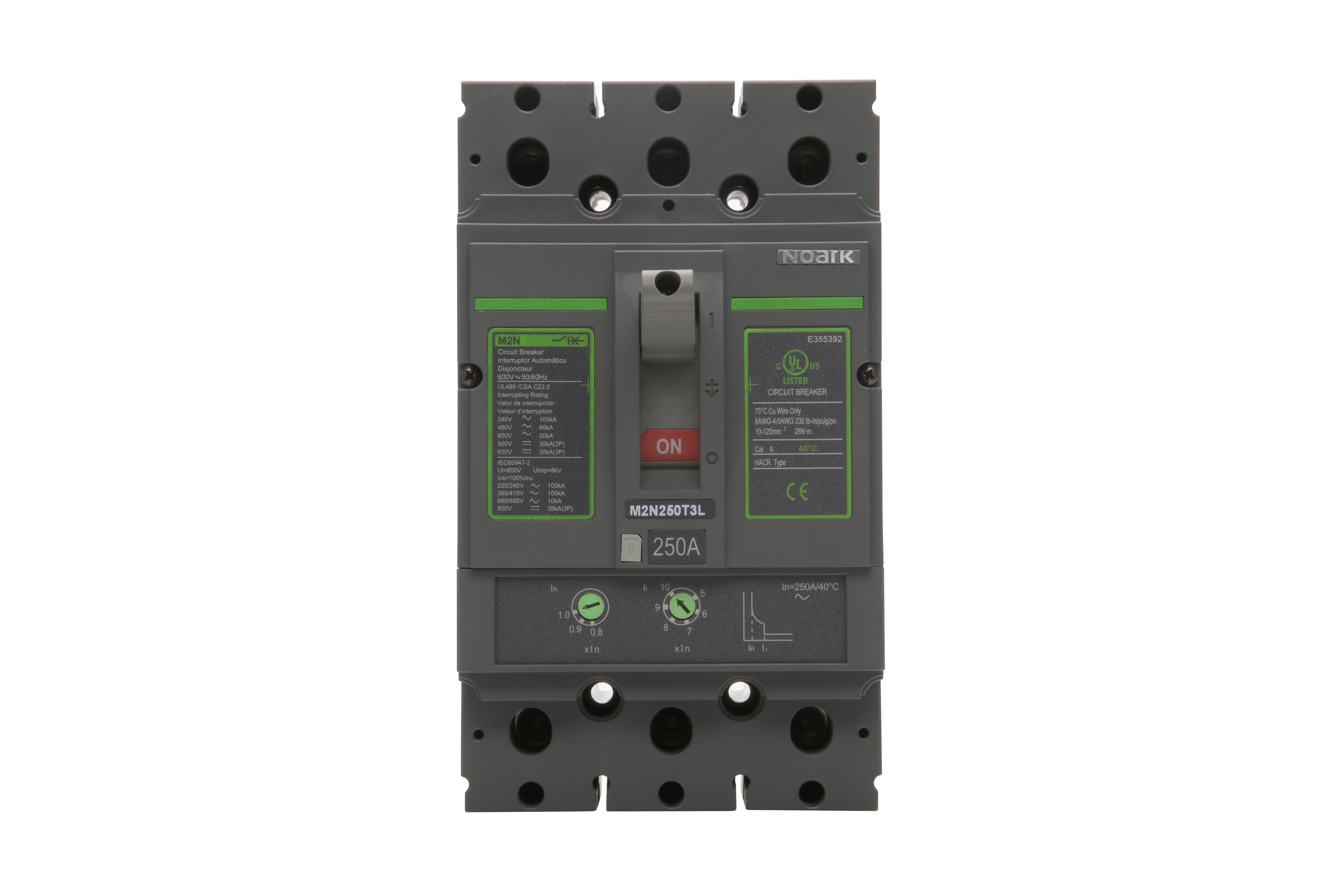

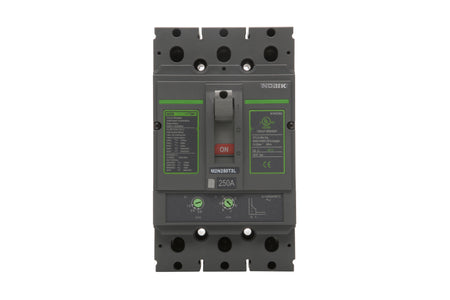

M2MS250T3L-UL489 Standard MCP, M2MS, 250 A Frame Size, 35kA@480Vac, 250A, 3P, Lug Line/Load Side
Regular price
$707.03 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Motor Protection Circuit Breaker (MPCB) |
| Product series / family name | Electrical protection > Circuit breakers > Motor-Circuit Protectors (MCPs) |
| Sub-range name | Ex9M2M series |
| Functions | Magnetic-only Motor Circuit Protector (MCP) |
| Poles | 3-poles (3P3d) |
| Frame current rating | 250 |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 600Vac (50/60Hz) |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Short circuit breaking rating | 50kA (240Vac) 35kA (480Vac) 14kA (600Vac) |
| Ultimate short circuit current breaking capacity (Icu) | 50kA (220/240Vac) 50kA (380/415Vac) 6kA (660/690Vac) |
| Trip unit type | ```Technology = Thermal-Magnetic (adjustable) |
| Protection functions | Adjustable thermal protection (Overload) Adjustable threshold Magnetic protection (Short-circuit) |
| Protection settings | Protection against thermal overload -- adjustable FLA to 7 pre-defined settings (96.2A...115.3A / 115.4A...134.5A / 134.6A...153.7A / 153.8A...173A / 173.1A...192.2A / 192.3A...211.4A / 211.5A...217.6A) Magnetic instantaneous protection against short-circuit -- adjustable to 7 pre-defined settings (1250A / 1500A / 1750A / 2000A / 2250A / 2500A / 2750A) |
| Dimensions | H182mm x W105mm x D38mm H7.17" x W4.13" x D3.47" |
| Order code / Manufacturer SKU | M2MS250T3L 1101998 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1101998 |
| Compliant with standard(s) | UL489 listed UL489 recognized (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 6000 hours |
| Mechanical durability | 10000 hours |
| Short Description | Magnetic-only MCP - 1101998 - UL489 - M2 frame - 3P3d - 250A rated - 600Vac |
| Type | Option = Standard (No options) |
| Rated current | 250A (continuous Amperes) |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 2000 |
| Cross - sells with | AL/AX21P SHT22NA SHT22NB SHT22NC SHT22ND SHT22NE SHT22NGWS UVT22NA UVT22NB UVT22NC UVT22ND UVT22NE UVT22NF UVT22NG UVT22NH KLK22NA KLK22NB KLK22NC MIT22NA MOD22NA MOD22NB MOD22NC FH4XC FH4XD OMC OMB22 FSB10 NOARK-FSB2 FSB3 FSB4 FSB5 FSB6 FSB7 NOARK-FSB8 FSB9 LTC22NAA LTC22NCA LTC22NFA LTC22NGA CKLB22 LK22NCA LK22NGA LK22NFA RCP22N TC22N PIA22N |
| Category code | Global_Cat_001001001004 Electrical components Electrical circuits protection Circuit Breakers (CB) Motor Protection Circuit Breakers (MPCB) |
| Product title | Magnetic-only Motor Circuit Protector (MCP) - NOARK Ex9M2M series |
| Description generating formula | A |
| Description | Magnetic-only Motor Circuit Protector (MCP) - UL489 listed - NOARK (Ex9M2M series) - 3-poles (3P3d) - Rated current 250A (continuous Amperes) - Interrupting capacity 14kA (600Vac) - Lugs on both load and line sides - Thermal-Magnetic (adjustable) trip unit - equivalent to 1101998 |
| Catalogue connector | NOARK - Ex9M2M series M2MS250T3L |
