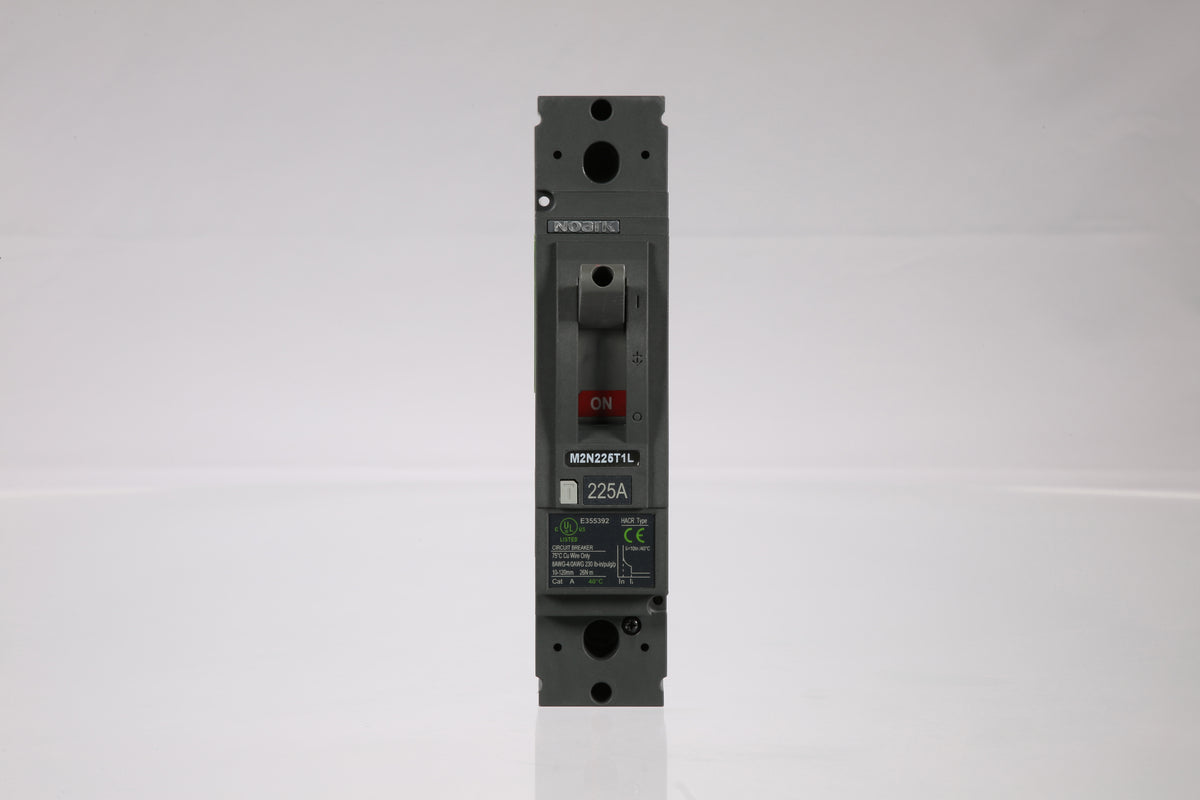

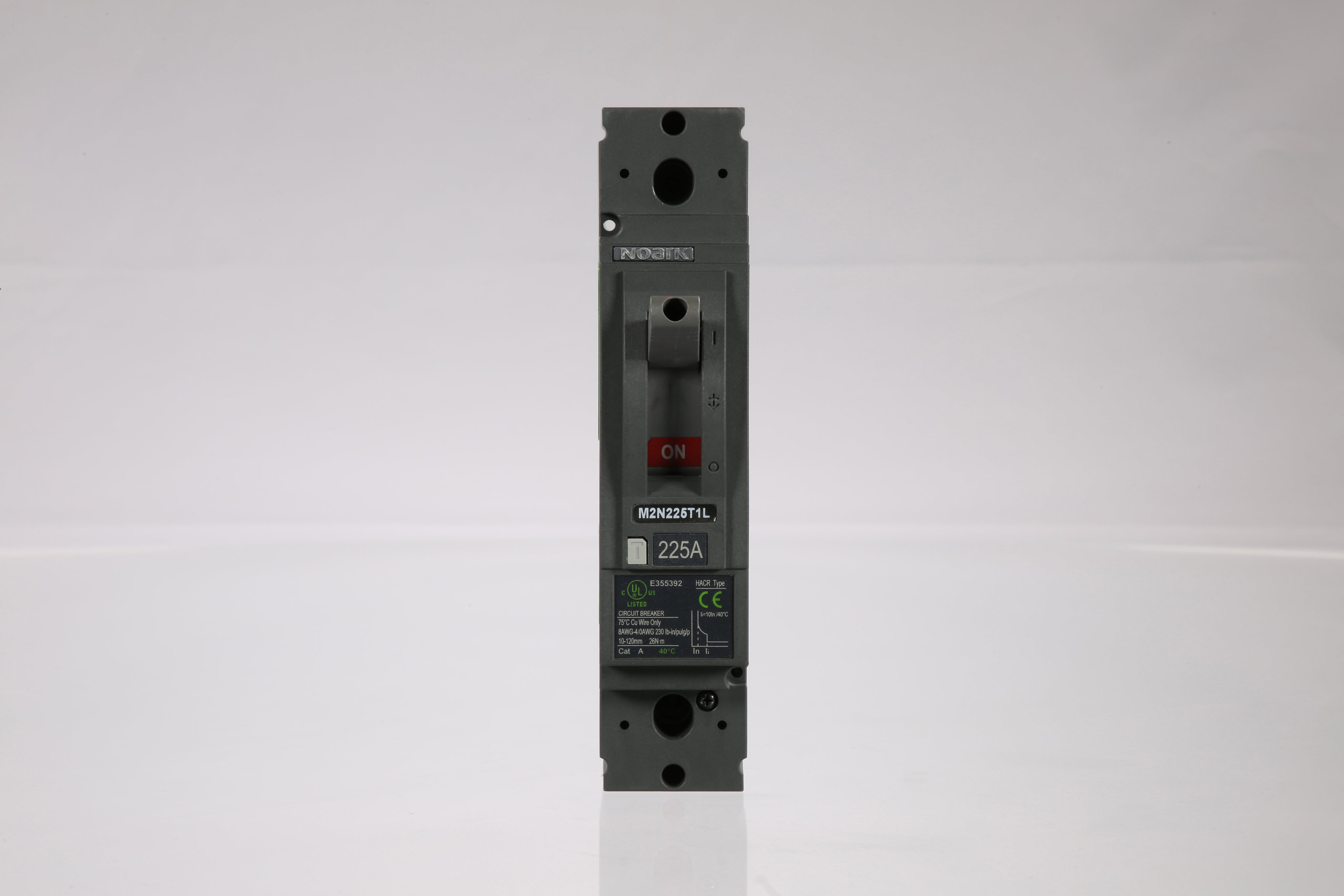

M2N100T1L-MCCB UL 489, M2N, 250 A Frame Size, 10 kA @ 480 Vac, 100A, 1P, Lug Line/Load Side
Regular price
$337.09 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Moulded Case Circuit Breaker (MCCB) |
| Product series / family name | Electrical protection > Circuit breakers > AC Moulded Case Circuit Breakers (MCCBs) |
| Sub-range name | Ex9M2 series |
| Functions | Moulded Case Circuit Breaker (MCCB) |
| Poles | 1-pole (1P1d) |
| Trip current rating | 100 |
| Frame current rating | 250 |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 480Vac |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Cross-section | connects with #8AWG...350kcmil / 10mm2...185mm2 conductors |
| Short circuit breaking rating | 50kA (240Vac) 10kA (480Vac) 25kA (250Vdc) |
| Ultimate short circuit current breaking capacity (Icu) | 50kA (220/240Vac) 25kA (250Vdc) |
| Trip unit type | ```Technology = Thermal-Magnetic (fixed) Series = FT/FM (Fixed Thermal / Fixed Magnetic) |
| Protection functions | Fixed thermal protection (Overload) Fixed threshold magnetic protection (Short-circuit) |
| Protection settings | Protection against thermal overload -- fixed at 100A Magnetic instantaneous protection against short-circuit -- fixed at 1000A |
| Dimensions | H182mm x W40mm x D88mm H7.17" x W1.57" x D3.47" |
| Ambient air temperature for operation | -25°C...+70 |
| Utilisation category | A |
| Order code / Manufacturer SKU | M2N100T1L 1102323 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1102323 |
| Compliant with standard(s) | UL489 listed UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 6000 hours |
| Mechanical durability | 10000 hours |
| Short Description | MCCB - 1102323 - UL489 - M2 frame - 1P1d - 100A rated - 250Vdc/ac |
| Type | Option = Standard (No options) |
| Rated current | 100A |
| Rated Voltage (DC) | 250Vdc |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 800 |
| Cross - sells with | KLK22NA KLK22NB KLK22NC |
| Category code | Global_Cat_001001001002 Electrical components Electrical circuits protection Circuit Breakers (CB) Moulded Case Circuit Breakers (MCCB) |
| Product title | Moulded Case Circuit Breaker (MCCB) - NOARK Ex9M2 series |
| Description generating formula | A |
| Description | Moulded Case Circuit Breaker (MCCB) - UL489 listed - NOARK (Ex9M2 series) - 1-pole (1P1d) - Rated current 100A - Interrupting capacity 10kA (480Vac) - Lugs on both load and line sides - Thermal-Magnetic (fixed) (FT/FM (Fixed Thermal / Fixed Magnetic)) trip unit - equivalent to 1102323 |
| Catalogue connector | NOARK - Ex9M2 series M2N100T1L |
