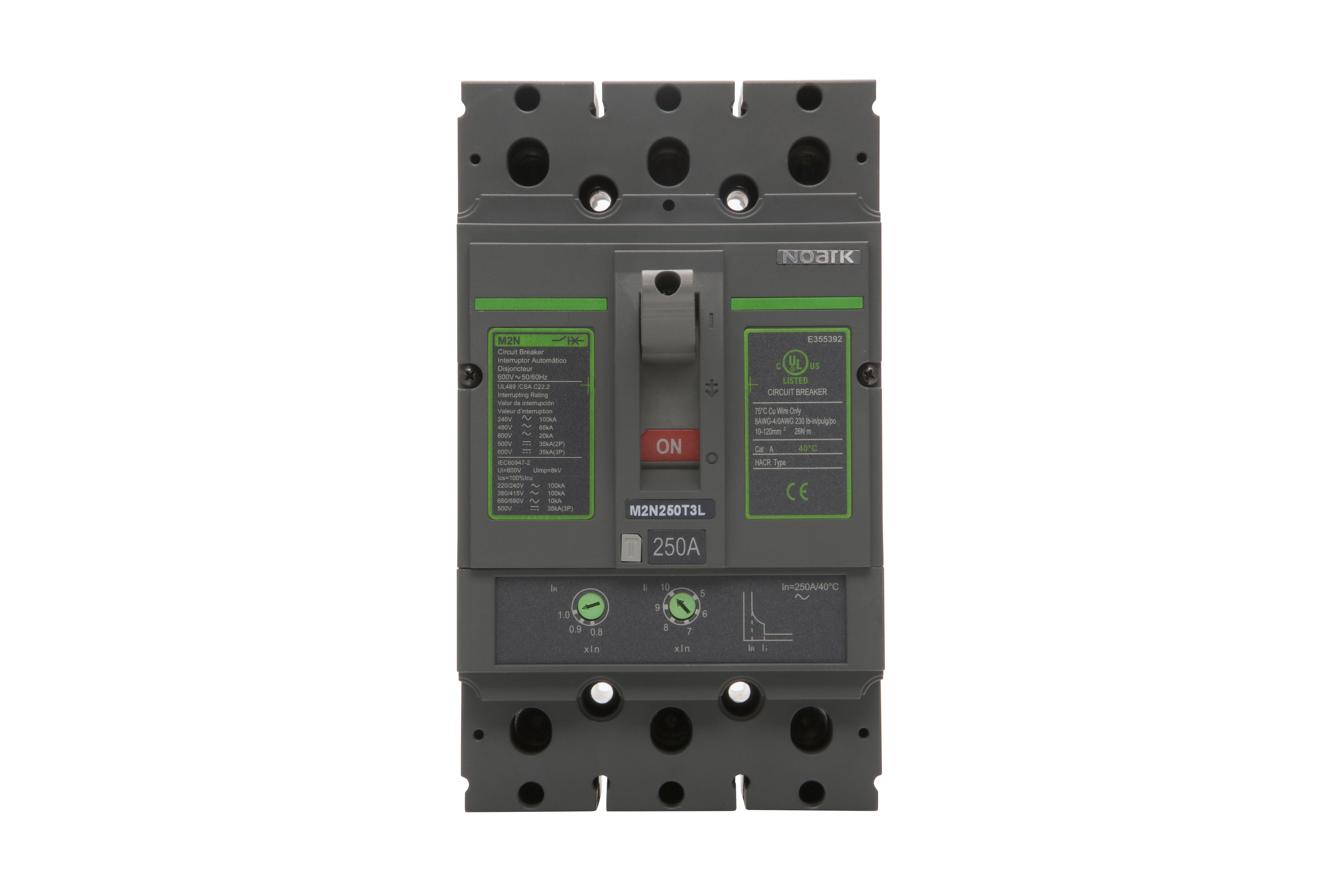

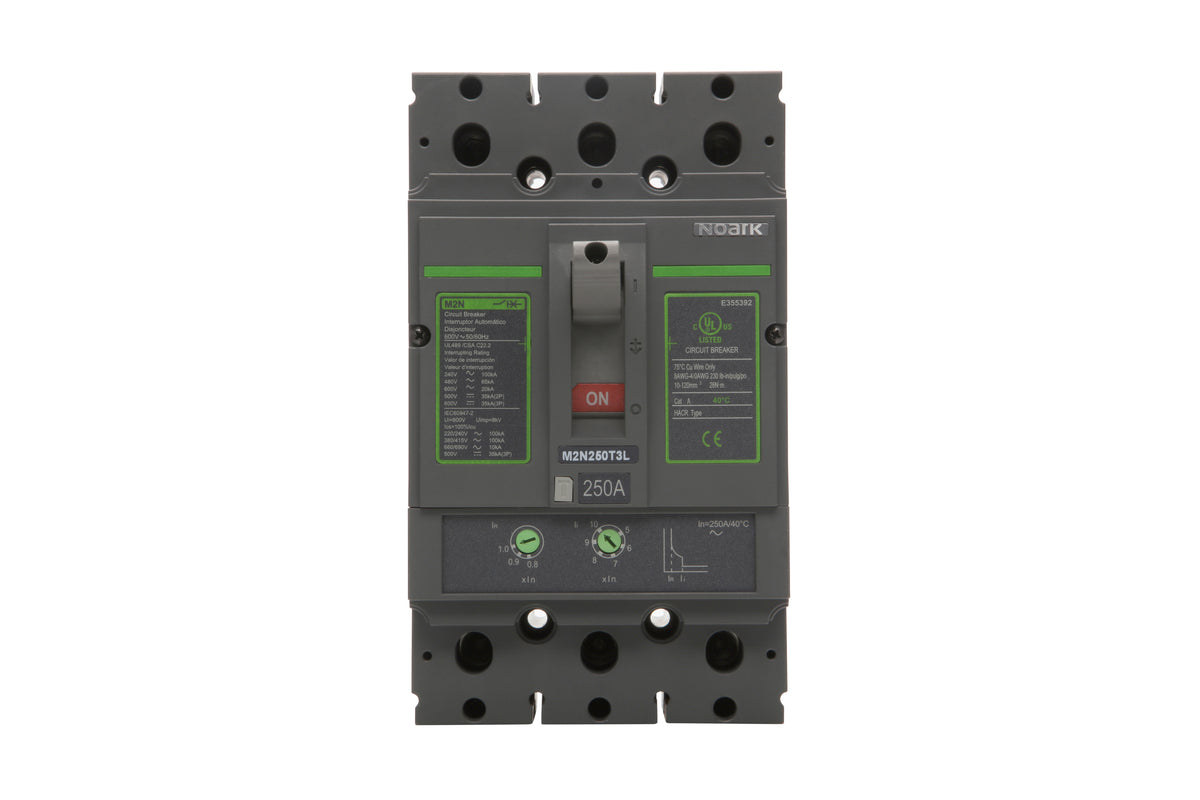

M2S150T3L-MCCB UL 489, M2S, 250 A Frame Size, 35kA@480Vac, 150A, 3P , Lug Line/Load Side
Regular price
$751.53 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Moulded Case Circuit Breaker (MCCB) |
| Product series / family name | Electrical protection > Circuit breakers > AC Moulded Case Circuit Breakers (MCCBs) |
| Sub-range name | Ex9M2 series |
| Functions | Moulded Case Circuit Breaker (MCCB) |
| Poles | 3-poles (3P3d) |
| Trip current rating | 150 |
| Frame current rating | 250 |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 600Vac |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Cross-section | connects with #8AWG...350kcmil / 10mm2...185mm2 conductors |
| Short circuit breaking rating | 50kA (240Vac) 35kA (480Vac) 14kA (600Vac) 20kA (600Vdc) |
| Ultimate short circuit current breaking capacity (Icu) | 50kA (220/240Vac) 50kA (380/415Vac) 6kA (660/690Vac) 25kA (500Vdc) |
| Trip unit type | ```Technology = Thermal-Magnetic (adjustable) Series = AT/AM (Adjustable Thermal / Adjustable Magnetic) |
| Protection functions | Adjustable thermal protection (Overload) Adjustable threshold magnetic protection (Short-circuit) |
| Protection settings | Protection against thermal overload -- adjustable 0.8...1 x In (120A...150A) Magnetic instantaneous protection against short-circuit -- adjustable 7...12 x In (1050A...1800A) |
| Dimensions | H182mm x W105mm x D88mm H7.17" x W4.13" x D3.47" |
| Ambient air temperature for operation | -25°C...+70 |
| Utilisation category | A |
| Order code / Manufacturer SKU | M2S150T3L 1100223 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1100223 |
| Compliant with standard(s) | UL489 listed UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 6000 hours |
| Mechanical durability | 10000 hours |
| Short Description | MCCB - 1100223 - UL489 - M2 frame - 3P3d - 150A rated - 600Vdc/ac |
| Type | Option = Standard (No options) |
| Rated current | 150A |
| Rated Voltage (DC) | 600Vdc |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 2000 |
| Cross - sells with | AL/AX21P SHT22NA SHT22NB SHT22NC SHT22ND SHT22NE SHT22NGWS UVT22NA UVT22NB UVT22NC UVT22ND UVT22NE UVT22NF UVT22NG UVT22NH KLK22NA KLK22NB KLK22NC MIT22NA MOD22NA MOD22NB MOD22NC FH4XC FH4XD OMC OMB22 FSB10 NOARK-FSB2 FSB3 FSB4 FSB5 FSB6 FSB7 NOARK-FSB8 FSB9 LTC22NAA LTC22NCA LTC22NFA LTC22NGA CKLB22 LK22NCA LK22NGA LK22NFA RCP22N TC22N PIA22N |
| Category code | Global_Cat_001001001002 Electrical components Electrical circuits protection Circuit Breakers (CB) Moulded Case Circuit Breakers (MCCB) |
| Product title | Moulded Case Circuit Breaker (MCCB) - NOARK Ex9M2 series |
| Description generating formula | A |
| Description | Moulded Case Circuit Breaker (MCCB) - UL489 listed - NOARK (Ex9M2 series) - 3-poles (3P3d) - Rated current 150A - Interrupting capacity 14kA (600Vac) - Lugs on both load and line sides - Thermal-Magnetic (adjustable) (AT/AM (Adjustable Thermal / Adjustable Magnetic)) trip unit - equivalent to 1100223 |
| Catalogue connector | NOARK - Ex9M2 series M2S150T3L |
| Benefits | Ex9M series offers - High-breaking capacity and a patented arc extinguishing design - Bearing-type spindle reduces the operating force required to open and close the operating mechanism - High quality compact modular design - Fixed and adjustable trip unit settings - Line and load lugs installed standard - 5-Year limited warranty Certifications - UL 489 listed File Number E355392 - UL listed to UL489 and Canada CSA standards 22.2 No. 5 - IEC/EN 60947-2 - CE Compliant - UL489B, File Number E513573 Wide range of accessories - Alarm switch and auxiliary contact - Shunt and undervoltage trip - Rotary type handle - Flange type handle - Motor Operator - Mechanical Interlock |
