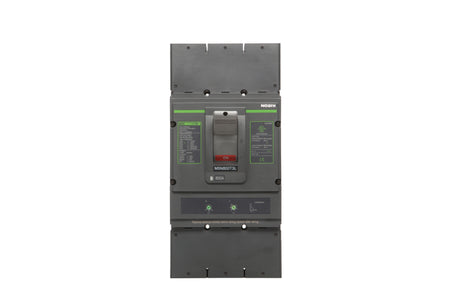

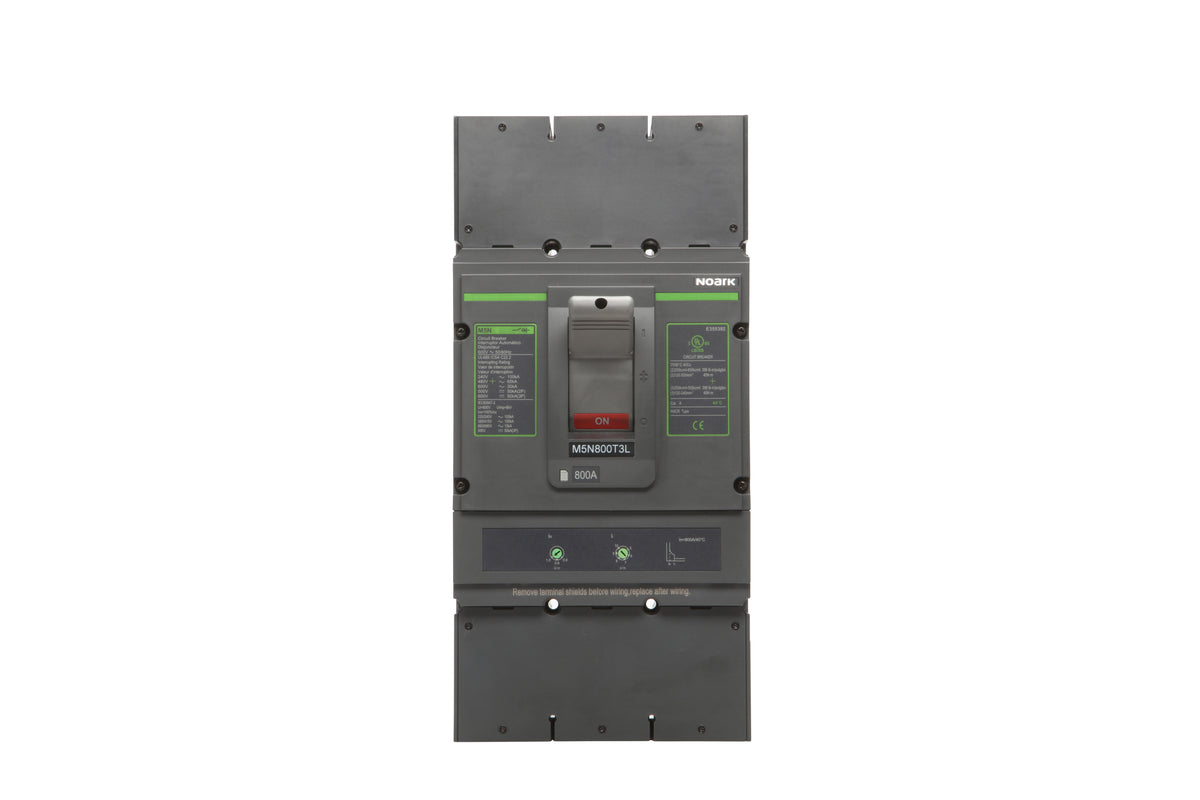

M5S800T3L-MCCB UL 489, M5S, 800 A Frame Size, 42kA@480Vac, 800A, 3P, Lug Line/Load Side
Regular price
$5,654.40 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Moulded Case Circuit Breaker (MCCB) |
| Product series / family name | Electrical protection > Circuit breakers > AC Moulded Case Circuit Breakers (MCCBs) |
| Sub-range name | Ex9M5 series |
| Functions | Moulded Case Circuit Breaker (MCCB) |
| Poles | 3-poles (3P3d) |
| Trip current rating | 800 |
| Frame current rating | 800 |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 600Vac |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Cross-section | connects with 250kcmil...600kcmil / 120mm2...300mm2 conductors (2-hole lugs) or 250kcmil...500kcmil / 100mm2...250mm2 conductors (3-hole lugs) |
| Short circuit breaking rating | 65kA (240Vac) 42kA (480Vac) 22kA (600Vac) 35kA (600Vdc) |
| Ultimate short circuit current breaking capacity (Icu) | 65kA (220/240Vac) 65kA (380/415Vac) 12kA (660/690Vac) 35kA (500Vdc) |
| Trip unit type | ```Technology = Thermal-Magnetic (adjustable) Series = AT/AM (Adjustable Thermal / Adjustable Magnetic) |
| Protection functions | Adjustable thermal protection (Overload) Adjustable threshold magnetic protection (Short-circuit) |
| Protection settings | Protection against thermal overload -- adjustable 0.8...1 x In (640A...800A) Magnetic instantaneous protection against short-circuit -- adjustable 5...10 x In (4000A...8000A) |
| Dimensions | H411mm x W195mm x D192.5mm H16.18" x W7.68" x D7.58" |
| Ambient air temperature for operation | -25°C...+70 |
| Utilisation category | A |
| Order code / Manufacturer SKU | M5S800T3L 1102030 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1102030 |
| Compliant with standard(s) | UL489 listed UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 500 hours |
| Mechanical durability | 3000 hours |
| Short Description | MCCB - 1102030 - UL489 - M5 frame - 3P3d - 800A rated - 600Vdc/ac |
| Type | Option = Standard (No options) |
| Rated current | 800A |
| Rated Voltage (DC) | 600Vdc |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 15050 |
| Cross - sells with | AL/AX21P SHT24NA SHT24NB SHT24NC SHT24ND SHT24NE UVT24NA UVT24NB UVT24NC UVT24ND UVT24NE UVT24NF UVT24NG UVT24NH KLK24NA KLK24NB KLK24NC MIT24NA MOD24NA MOD24NB MOD24NC FH4XC FH4XD OMC OMB24 FSB10 NOARK-FSB2 FSB3 FSB4 FSB5 FSB6 FSB7 NOARK-FSB8 FSB9 LTC25NBA |
| Category code | Global_Cat_001001001002 Electrical components Electrical circuits protection Circuit Breakers (CB) Moulded Case Circuit Breakers (MCCB) |
| Product title | Moulded Case Circuit Breaker (MCCB) - NOARK Ex9M5 series |
| Description generating formula | A |
| Description | Moulded Case Circuit Breaker (MCCB) - UL489 listed - NOARK (Ex9M5 series) - 3-poles (3P3d) - Rated current 800A - Interrupting capacity 22kA (600Vac) - Lugs on both load and line sides - Thermal-Magnetic (adjustable) (AT/AM (Adjustable Thermal / Adjustable Magnetic)) trip unit - equivalent to 1102030 |
| Catalogue connector | NOARK - Ex9M5 series M5S800T3L |
